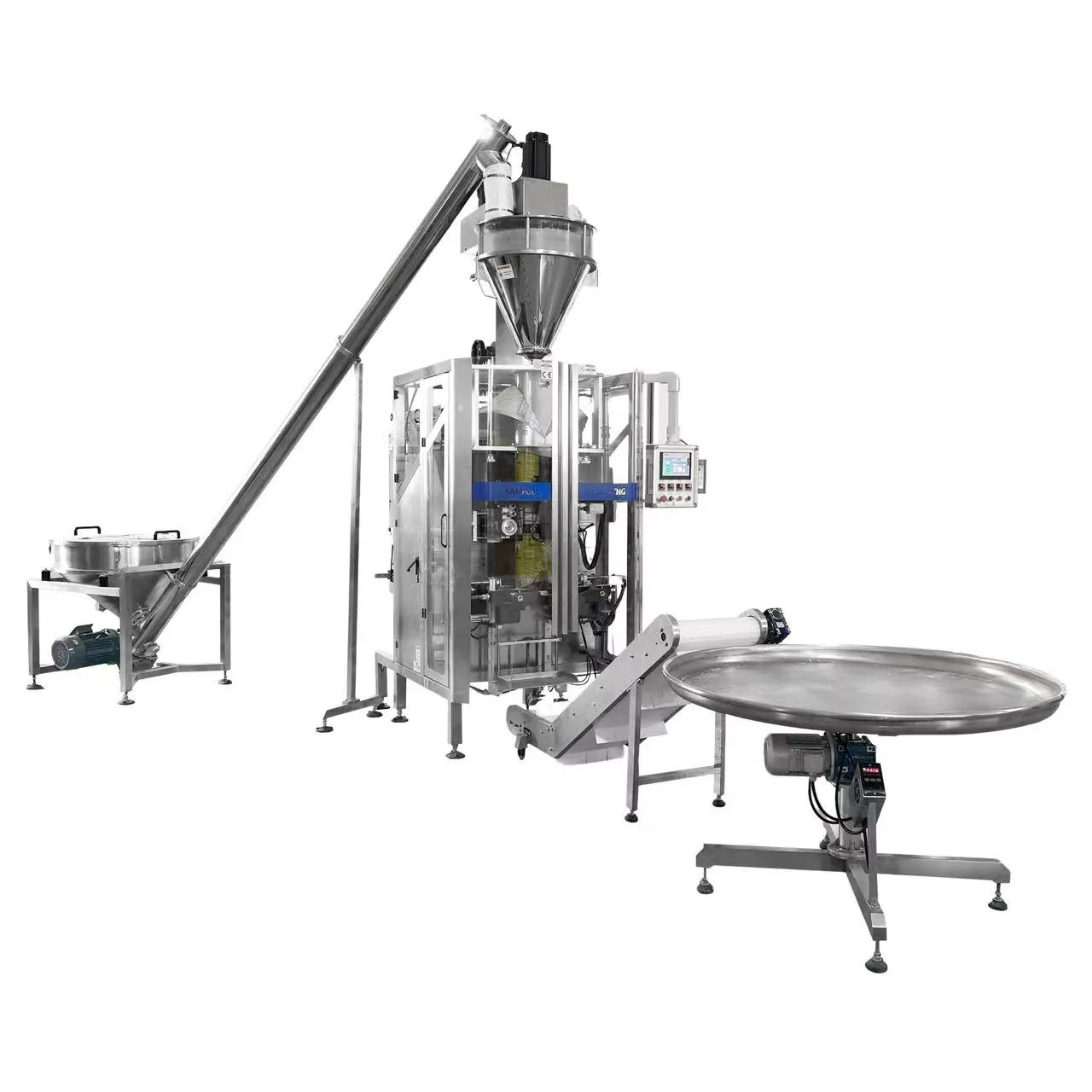

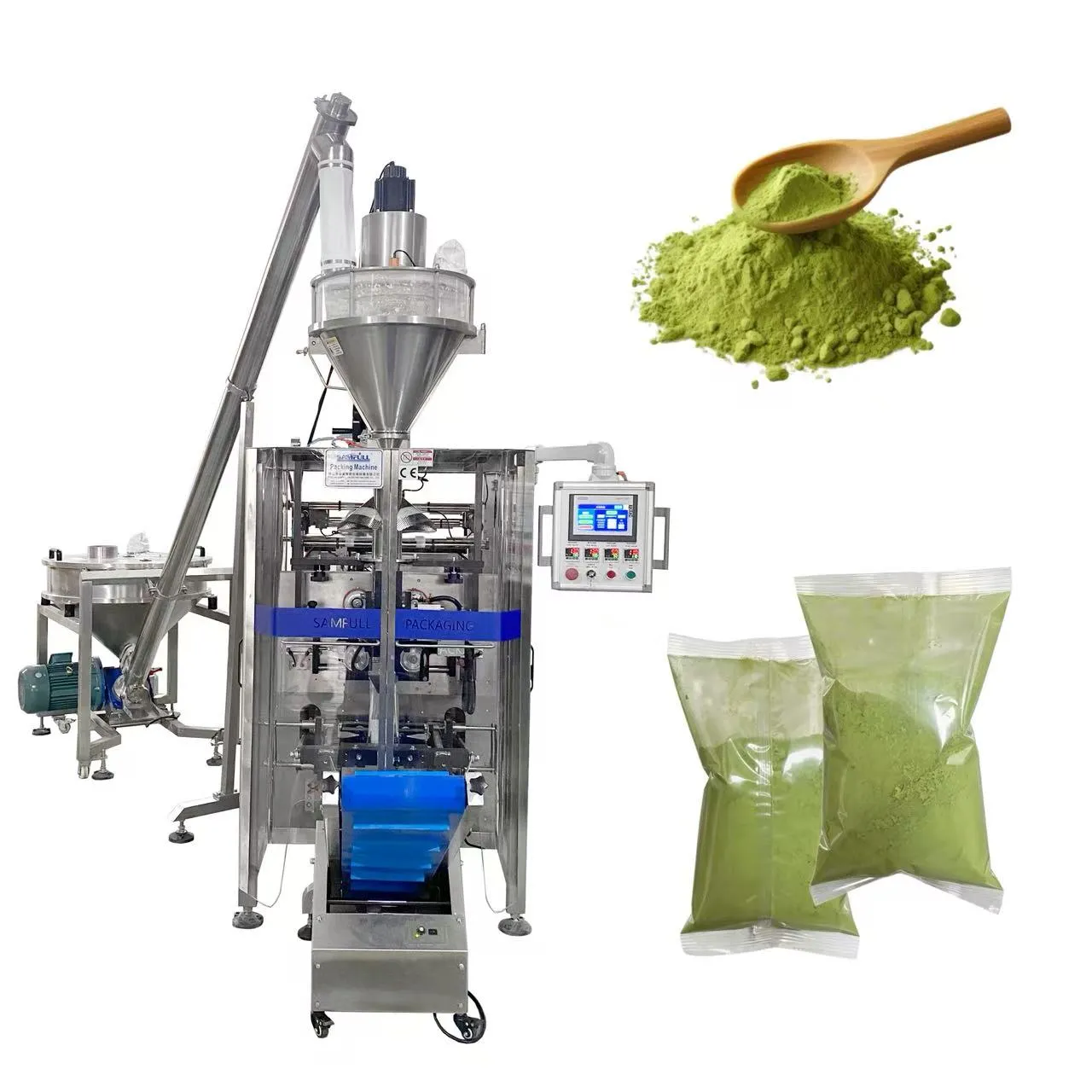

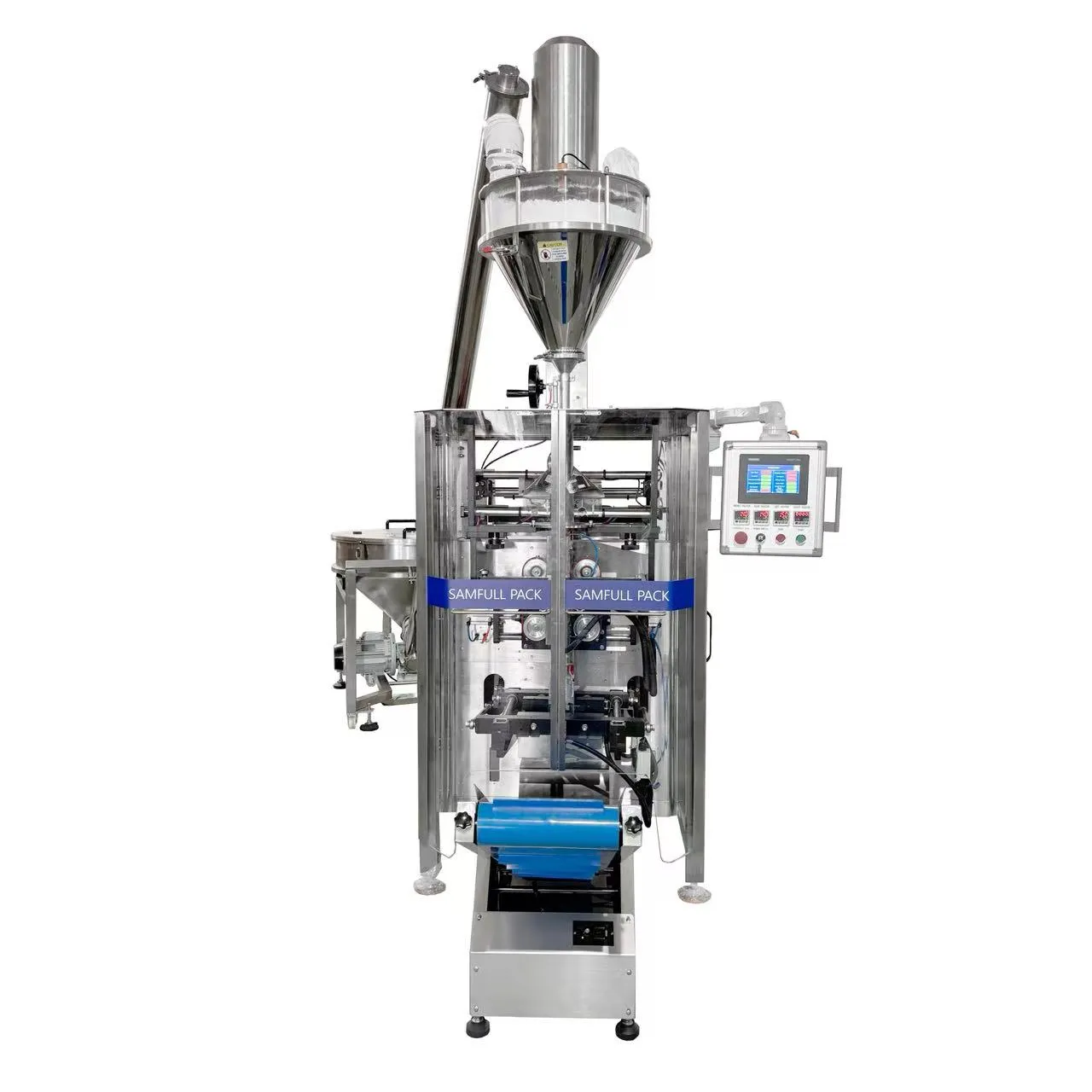

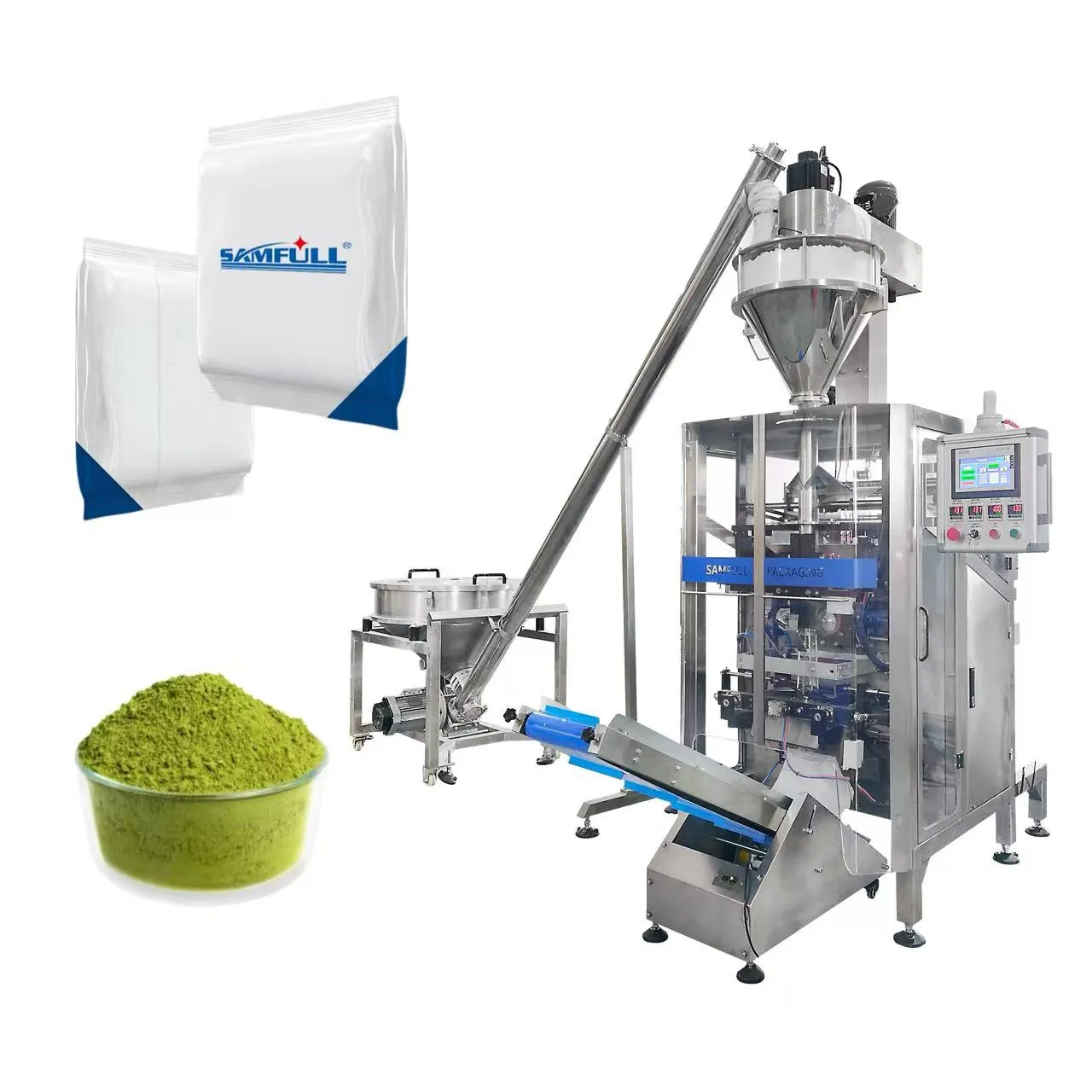

Vertical Form Fill Seal Machine
Technical details
| Model | SF-2.0T | SF-3.0T |
| Max Width Of Roll Film | 520mm | 720mm |
| Bag Sizes | W 80–250mm L 100–400mm | W 150–350mm L 100–480mm |
| Packing Speed | 15–35 bags/min | 5–30 bags/min |
| Packing Material | OPP/CPP, OPP/PE, PET/PE, PE | |
| Bag Type | Back sealing / Pillow bag Gusset bag / Quad seal bag | |
| Total Weight | 1200kg | 1300kg |
| Dimension | L4105×W2579×H2855mm | L4305×W2685×H3155mm |
APPLICATIONS
This vertical powder packaging machine is designed for automatic packaging of ultra-fine and light-density food powders. In addition to matcha and fine tea powders, it is suitable for green tea powder, herbal powder, cocoa powder, coffee powder, protein powder, nutritional supplements, spice powder, and other similar fine food-grade powders.

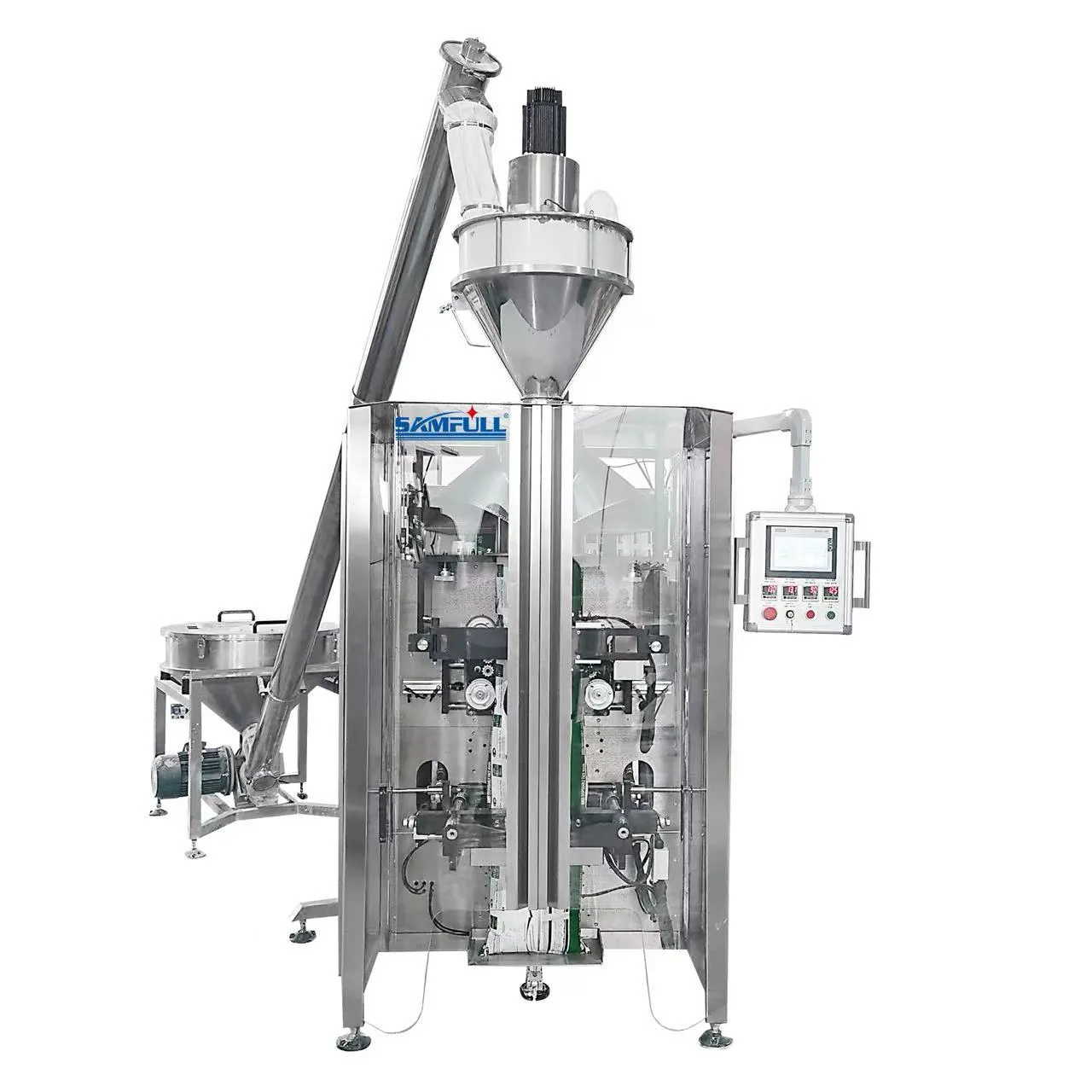

Equipped with a precision auger dosing system, the machine ensures stable feeding and accurate filling even for lightweight, dusty, and poor-flowing powders. The hygienic stainless steel construction and enclosed filling structure help maintain product cleanliness and reduce dust contamination during packaging.
It is widely used in tea processing plants, beverage powder factories, health food production lines, and food manufacturing facilities requiring efficient and reliable packaging of fine powder products.
Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.
Product type – What powder or granular material do you want to package? (e.g., food, feed, chemical, industrial)
Filling weight per bag
Bag dimensions (length and width)
Bag style (pillow bag, gusseted bag, or customized pouch)
Required packing speed and output capacity
PACKAGING
Machine operation video demonstration
FUNCTIONAL FEATURES
1. The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;
2. Equipped with safety protection, in line with the requirements of enterprise safety management;
3. Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;
4. Servo motor film drawing, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;
5. Double belt film drawing, film drawing system and color code control system can be automatically adjusted by touch screen, simple operation for sealing and notching correction;
6. The touch screen can store a variety of packaging process parameters of different products, and can be used at any time without adjustment when replacing products;
7. The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;
8. The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag-making, filling, sealing, cutting and product conveying;
9. It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs;
10. The machine adopts closed Structure to prevent dust from entering the machine effectively.
