Vertical Form Fill Seal Machine
Technical details
| Item | Details | Item | Details |
|---|---|---|---|
| Model | 2.0T Composite Film Main Unit | Main Machine System | Siemens System |
| Packaging Material | Frozen Beans 500~1kg | Dosing Method | 10-14-head weigher |
| Roll Film Material | Composite Film | Bag Type | Back Seal Bag |
| Voltage & Frequency | 3-phase, 380V, 50Hz | Middle Seal Structure | Standard type side pressure left flip right |
| Cutter Blade Pattern | Factory standard: striped with teeth | Touch Screen | Factory standard |
| Language | English, Chinese | Coding Machine | ordinary |
| Exhaust | Ordinary sponge exhaust | Inflation | None |
APPLICATIONS

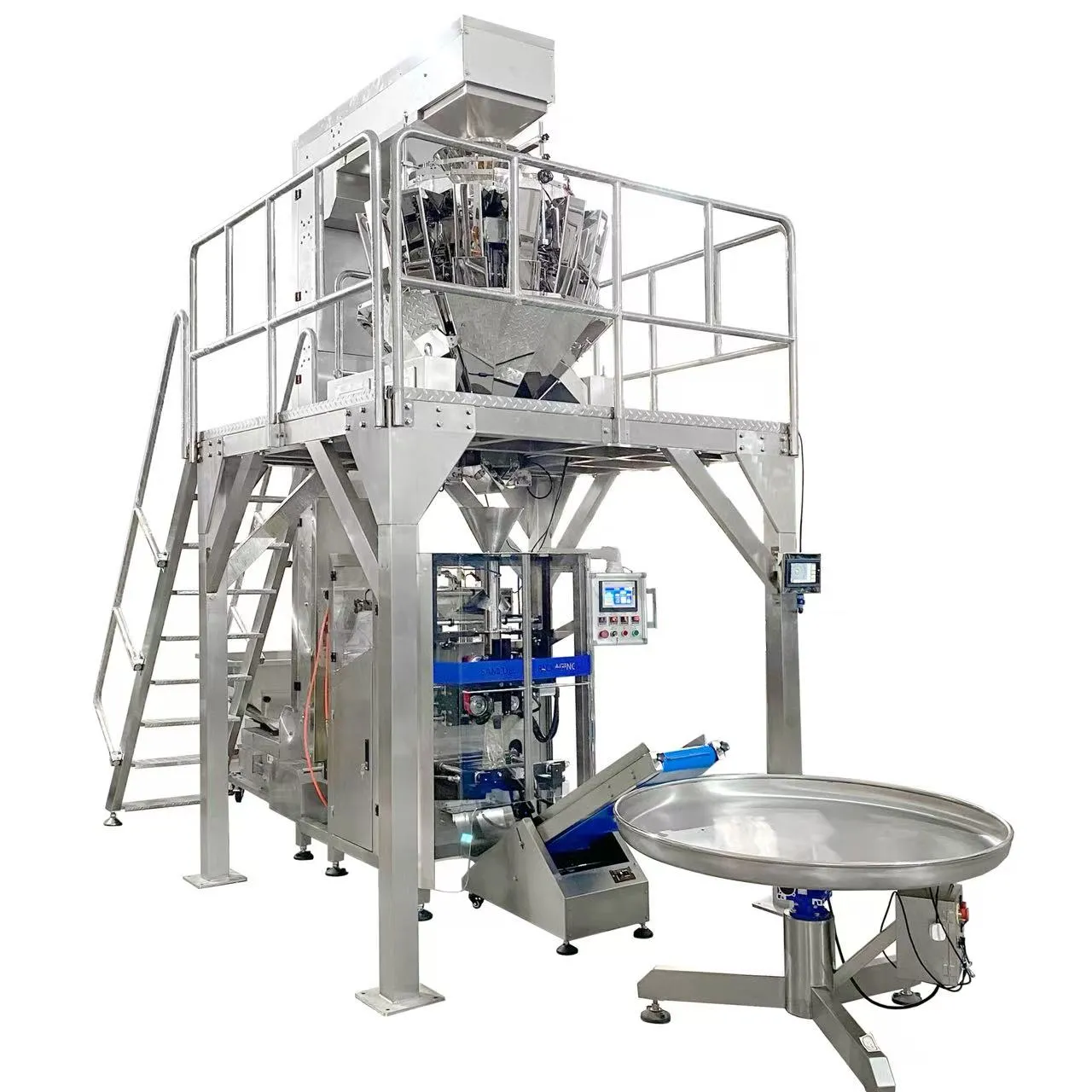

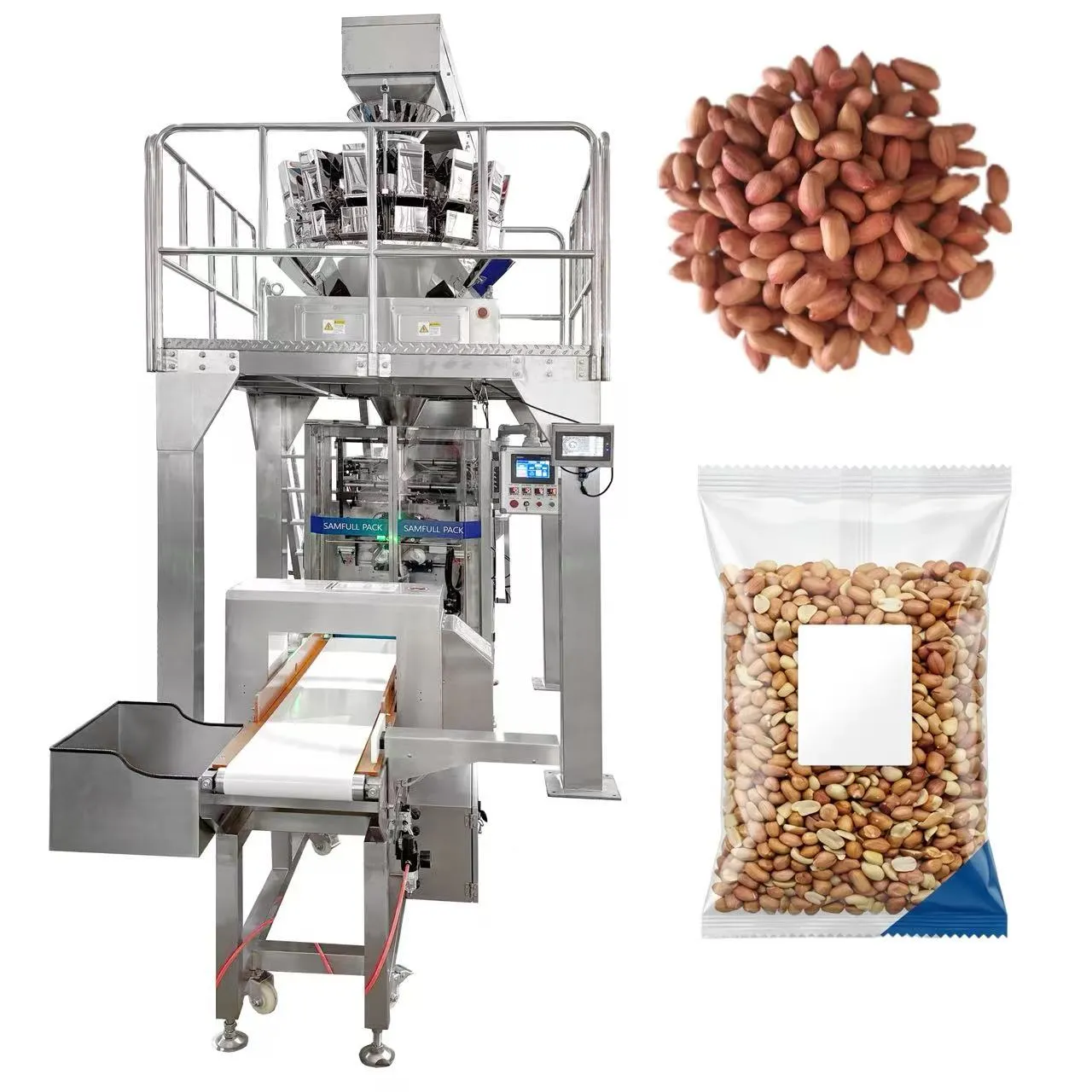

This vertical multihead weigher packaging machine is designed for automatic weighing and packaging of a wide range of granule and snack food products. In addition to peanuts, it is suitable for almonds, cashews, walnuts, pistachios, mixed nuts, roasted nuts, and coated nut products.
The system is also widely used for snack foods such as potato chips, puffed snacks, popcorn, candy, biscuits, dried fruits, and other free-flowing granules. It can handle products with different shapes and sizes while maintaining accurate weighing and stable packaging performance.

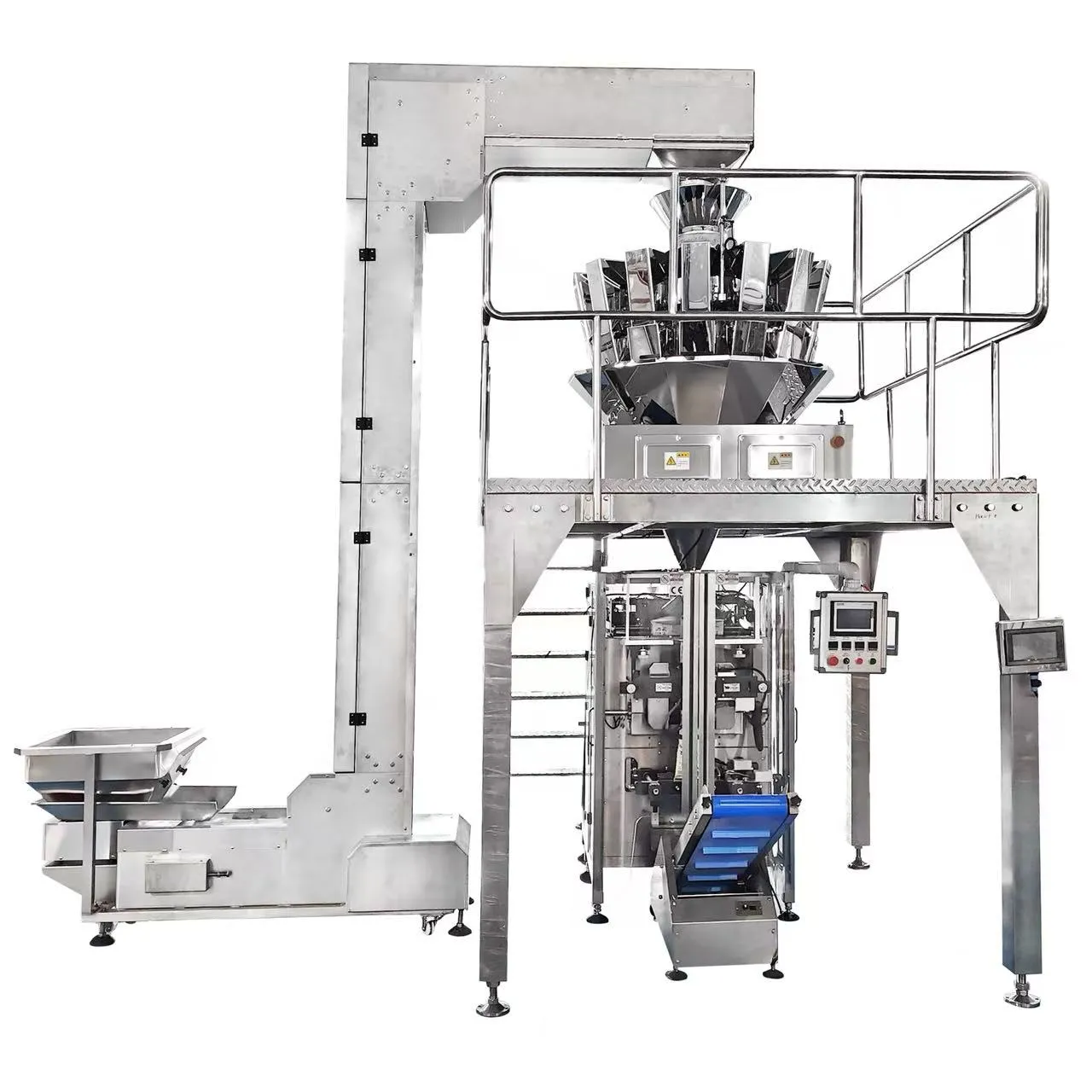

By combining a high-speed multihead weigher with a vertical form fill seal machine, the system ensures precise portioning, efficient bag forming, and reliable sealing. It is ideal for food processing plants and snack manufacturers requiring automated, high-capacity, and continuous packaging solutions.
Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.
1. Product type and characteristics
2. Bag dimensions (length and width)
3. Filling weight per bag
4. Bag style
5. Required output capacity
PACKAGING
Applicable Packaging Film: BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.
FUNCTIONAL FEATURES
The equipment frame is made of 304 stainless steel, which conforms to the food GS and pharmaceutical GMP health standards;
Equipped with safety protection, in line with the requirements of enterprise safety management;
Adopt independent temperature control system, temperature control is accurate, the sealing is beautiful and firm;
Servo motor film drawing, film control system, touch screen control, automatic control of the whole machine, high efficiency;
Double screen film drawing, PLC control, touch screen control, system control can be automatically adjusted by touch screen, simple operation, high efficiency, sealing and notching correction;
The touch screen can display a variety of packaging process parameters of different products, and can be used by any ability without experience for sealing and packaging products;
The whole machine adopts the way of packaging and packaging, which can realize the automatic control of the whole process from feeding, bag making, filling, sealing, cutting and product conveying;

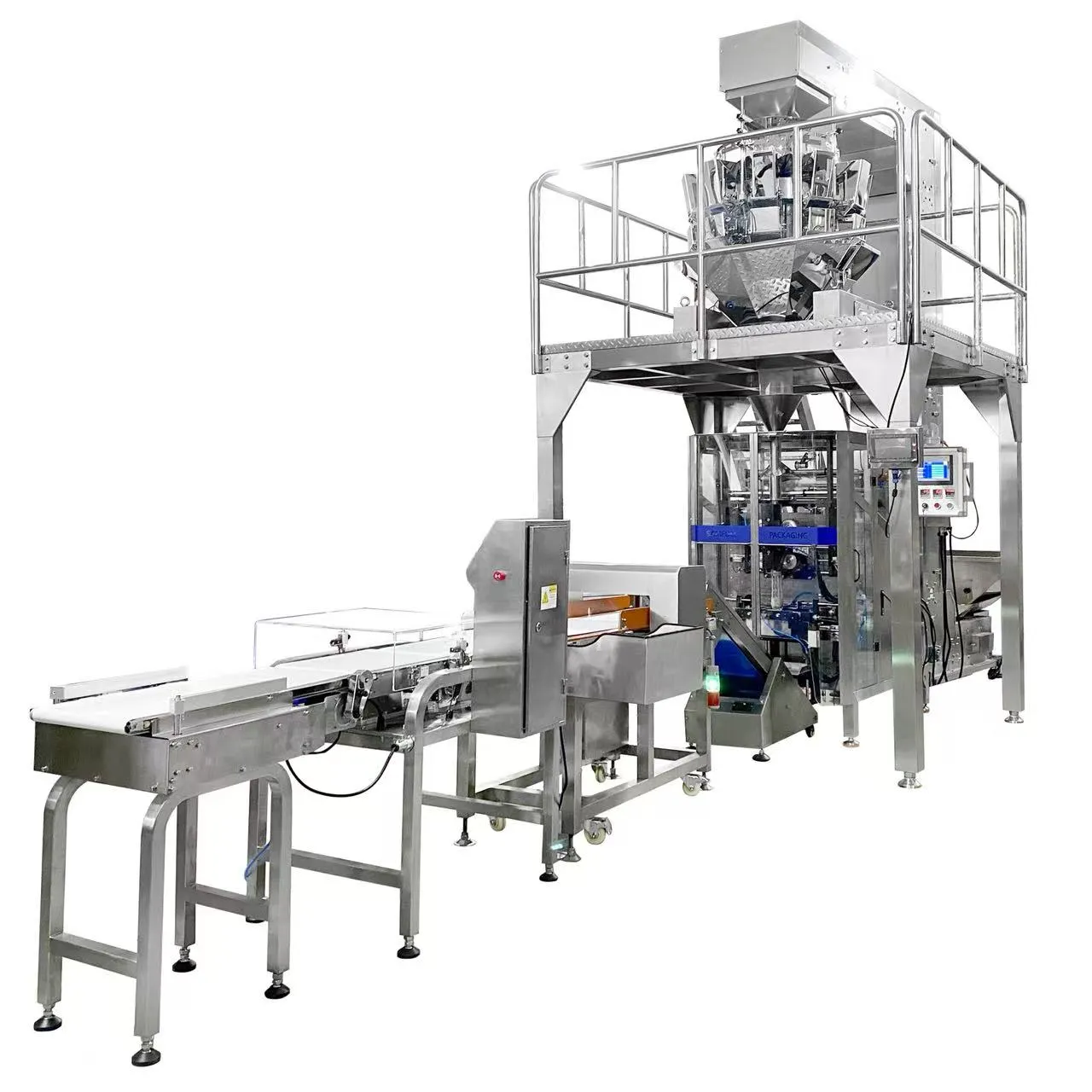

The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag-making, filling, sealing, cutting and product conveying;
It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs;
The machine adopts airtight structure to prevent dust from entering the machine effectively.
