honey bee sugar fondant paste and liquid VFFS machine overview

Honey Bee Food Sugar Fondant Paste & Liquid Vertical Form-Fill-Seal (VFFS) Automatic Filling Sealing Packing Machine

Technical details

Item	Details
Model	SF-520
Bag Type	Pillow bag
Weight Range	500g-5000g
Bag Size: Length	200-500mm
Bag Size: Width	125-300mm
Power (Voltage)	packing machine 220V Filling pump 380V
Power (Wattage)	packing machine 3KW Filling pump 7.5KW
Air Consumption	0.6MPa/0.3m³
Packing Material	NL/PE (9-12mm thick)

Inquire Now

APPLICATIONS

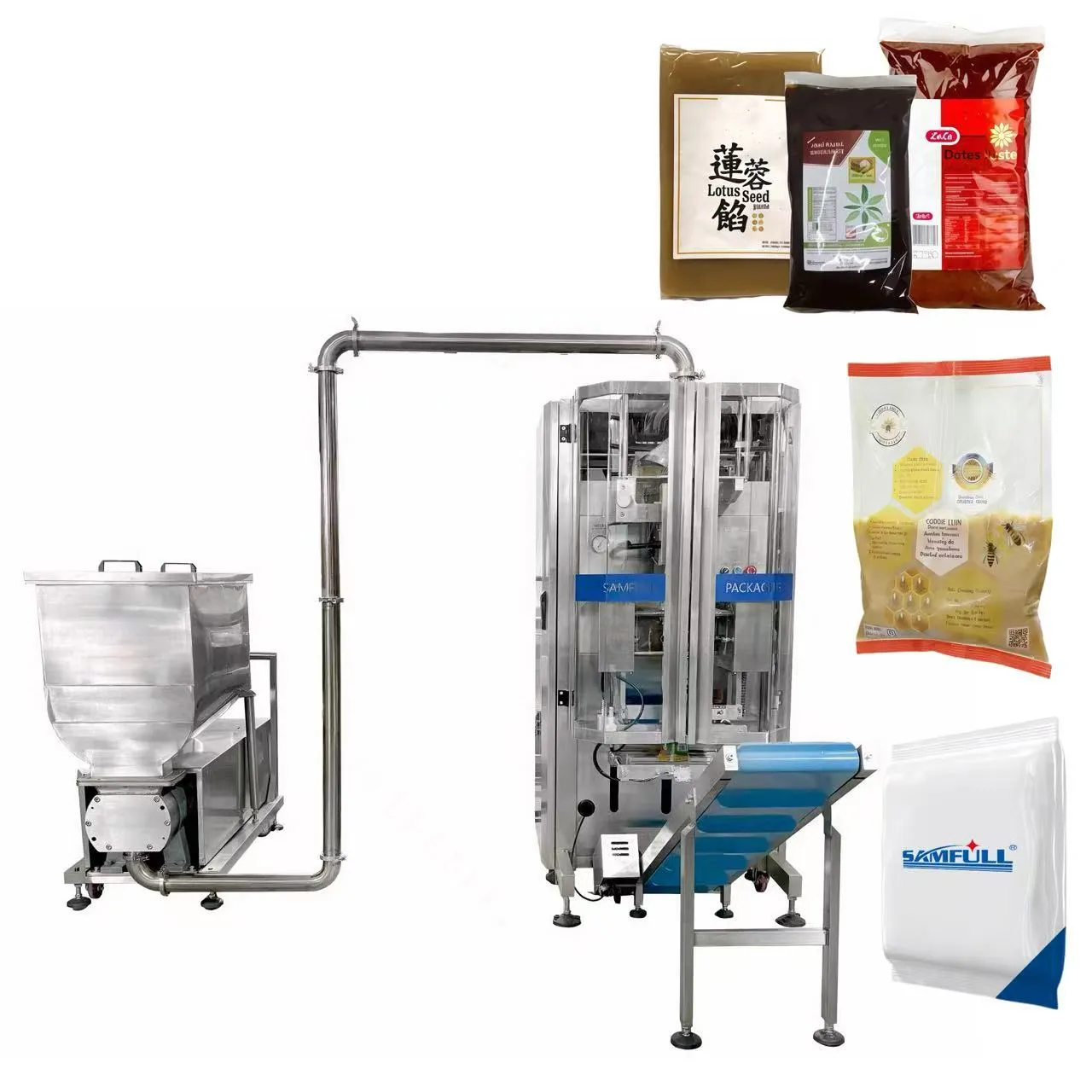

This vertical form-fill-seal (VFFS) machine is widely used in the food and chemical industries, suitable for accurately measuring and packaging high-viscosity liquid and semi-liquid materials. Typical applications include bean paste, lotus paste, fruit fillings, salad dressings, bun fillings, meat fillings, fruit pieces, glutinous rice paste, jelly, paint, grease, non-food detergents, and other fluid products.

The machine is ideal for both small and large-scale production, ensuring precise dosing, stable sealing, and hygienic operation. It supports flexible packaging formats, such as pillow bags, stand-up pouches, and back-seal sachets, making it suitable for a wide range of liquid and semi-liquid packaging applications across food, beverage, and chemical industries.

Kindly Reminder

Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.

Product type and characteristics

Bag dimensions (length and width)

Filling weight per bag

Bag style

Required output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1. The machine frame is made of SUS304 stainless steel, designed for hygienic production and easy cleaning, suitable for food and daily chemical applications.

2. Safety protection and interlock design are equipped to meet factory safety management requirements and ensure stable operation.

3. Independent temperature control for sealing/jaw heating delivers stable, neat seals and smooth pouch appearance.

4. Servo-driven system with PLC + touch screen control provides high automation, strong stability, and efficient production performance.

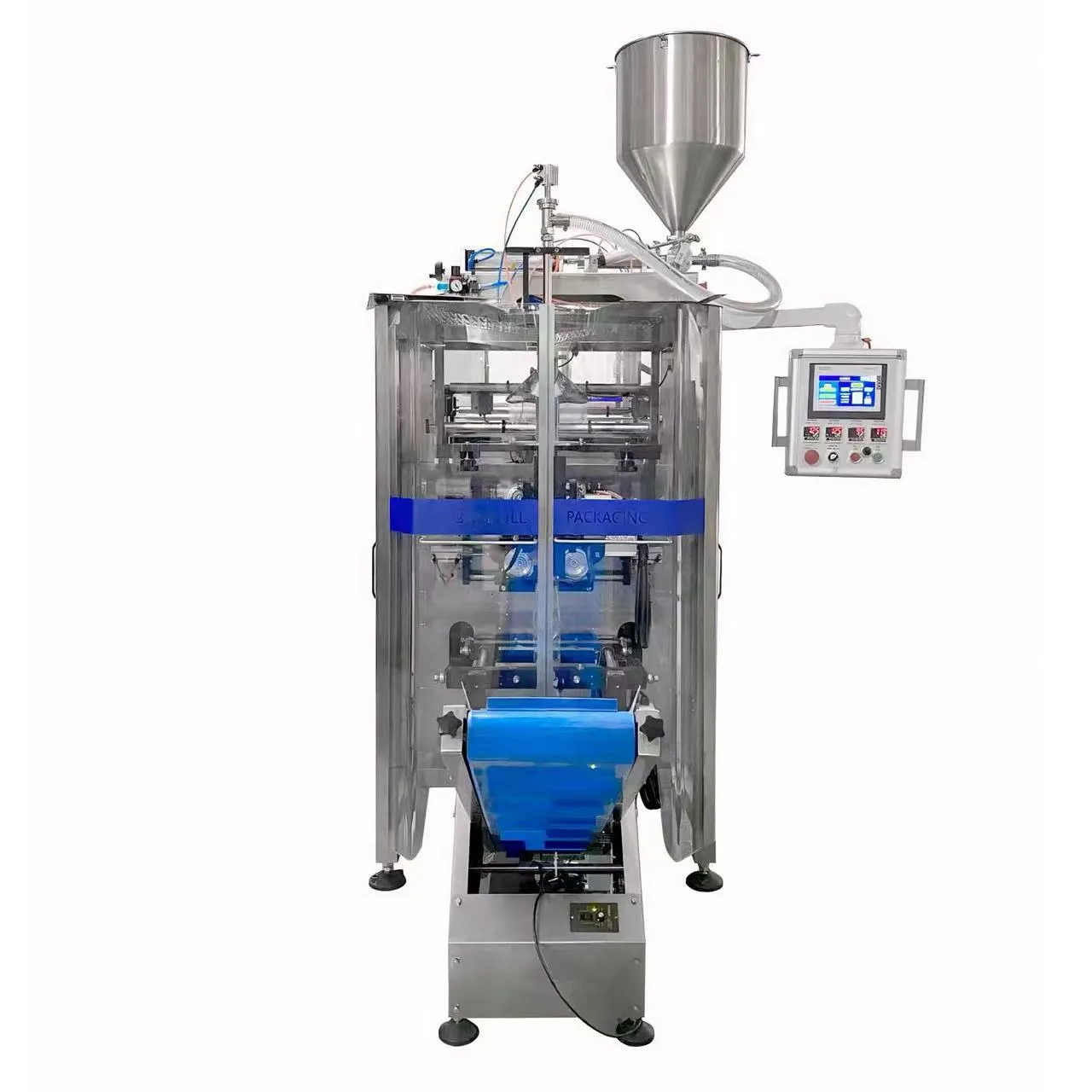

5. Specialized paste filling system, supports high-viscosity products with anti-drip design to reduce pulling and contamination.

6. Recipe storage on the HMI allows quick product changeover—parameters can be saved and recalled to minimize setup time.

7. Fault alarm & display system supports fast troubleshooting, helping reduce downtime and maintenance workload.

8. Complete automatic process integrates pouch feeding/forming (as configured), dosing, filling, sealing, cutting/collecting and finished-product conveying for continuous operation.

9. Designed with a closed and hygienic structure to reduce contamination risk; product-contact parts can be disassembled quickly for cleaning and sanitation.
