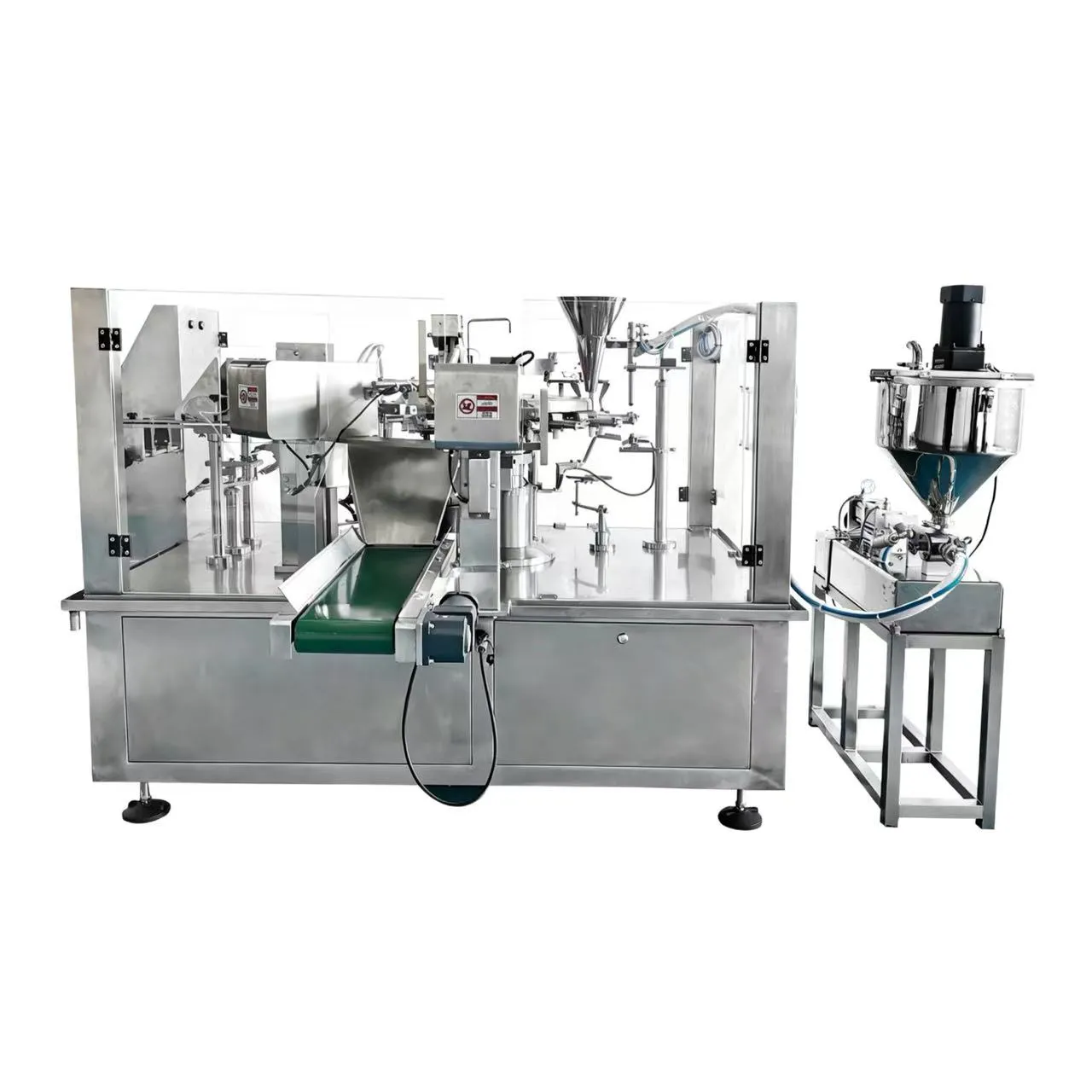

Premade pouch doypack filling and sealing machine overall view

Soybean Paste And Sauce Packaging, Paste Sauce Premade Pouch Packing, Rotary Premade Pouch Filling And Sealing, Automatic Doypack Packaging Solution

Technical details

Model	SF-200	SF-250
Equipment Material	SUS304	SUS304
Bag Sizes	W: 80mm–200mm L: 80mm–330mm	W: 100mm–250mm L: 100mm–350mm
Measurement Method	liquid pump
Measuring Range	100–1000g
Packing Speed	15–40 bags/min	20–40 bags/min
Bag Type	3-side, four-edge sealing ba gstand-up bag, handbag spout bags, compound bag, etc.
Equipment Dimension	L3000×W1600×H1450mm
Power And Voltage	AC380V, 50–60Hz, 3 Phases, 4.75kW
Total Weight	1900kg
Air Consumption	6–8kgf/cm², 0.45 m³/min

Inquire Now

APPLICATIONS

This premade pouch (doypack) filling and sealing machine is designed for automatic packaging of a wide range of paste, sauce, and semi-fluid products. In addition to soybean paste, it is suitable for chili sauce, tomato paste, peanut butter, salad dressing, curry sauce, mayonnaise, ketchup, honey, jam, chocolate sauce, and other viscous food products.

The rotary premade pouch system enables automatic pouch feeding, opening, filling, and sealing, ensuring clean filling, strong sealing, and consistent pouch appearance. It supports stand-up pouches with or without zipper, making it suitable for retail-ready packaging.

With stable operation and hygienic design, the machine is widely used in food processing plants, condiment factories, sauce production lines, and other applications requiring efficient, automated, and continuous paste and sauce packaging.

Kindly Reminder

To help us recommend the most suitable high-speed packaging solution, please provide the following details when sending your inquiry:

Product type and material characteristics
Bag dimensions (length, width, and gusset if applicable)
Filling weight per bag
Bag style
Required packing speed and output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;
The machine adopts advanced PLC control of Germany Siemens, and the touch screen man-machine interface is more convenient to operate;
The working speed of the machine can be adjusted in the specified range by the frequency conversion speed regulating device;
Overload protection, safety device, automatic alarm when the machine working pressure is abnormal or heating tube failure;
It can intelligently detect whether to open the bag and whether to open the bag is complete. In the case of inappropriate feeding, no feeding, no heat sealing, no waste of bags, which can save considerable costs for users;
Advantages of this machine: mechanical swing 8 stations at the same time automatically adjust the bag width, suitable for different width of the bag;
Some components are equipped with imported tolerance plastic bearings, which do not need refueling to reduce food pollution;
Use prefabricated packaging bags with perfect patterns, good sealing effect and high finished product grade;
Can pack multi-layer composite film, single-layer PE, PP and other materials made of prefabricated bags, paper bags, a wide range of packaging;
Using vacuum filter, clean and pollution-free;
Safety performance: The machine will stop automatically when the door is opened to prevent accidental injury by the machine.
