premade pouch rotary powder packing machine overview

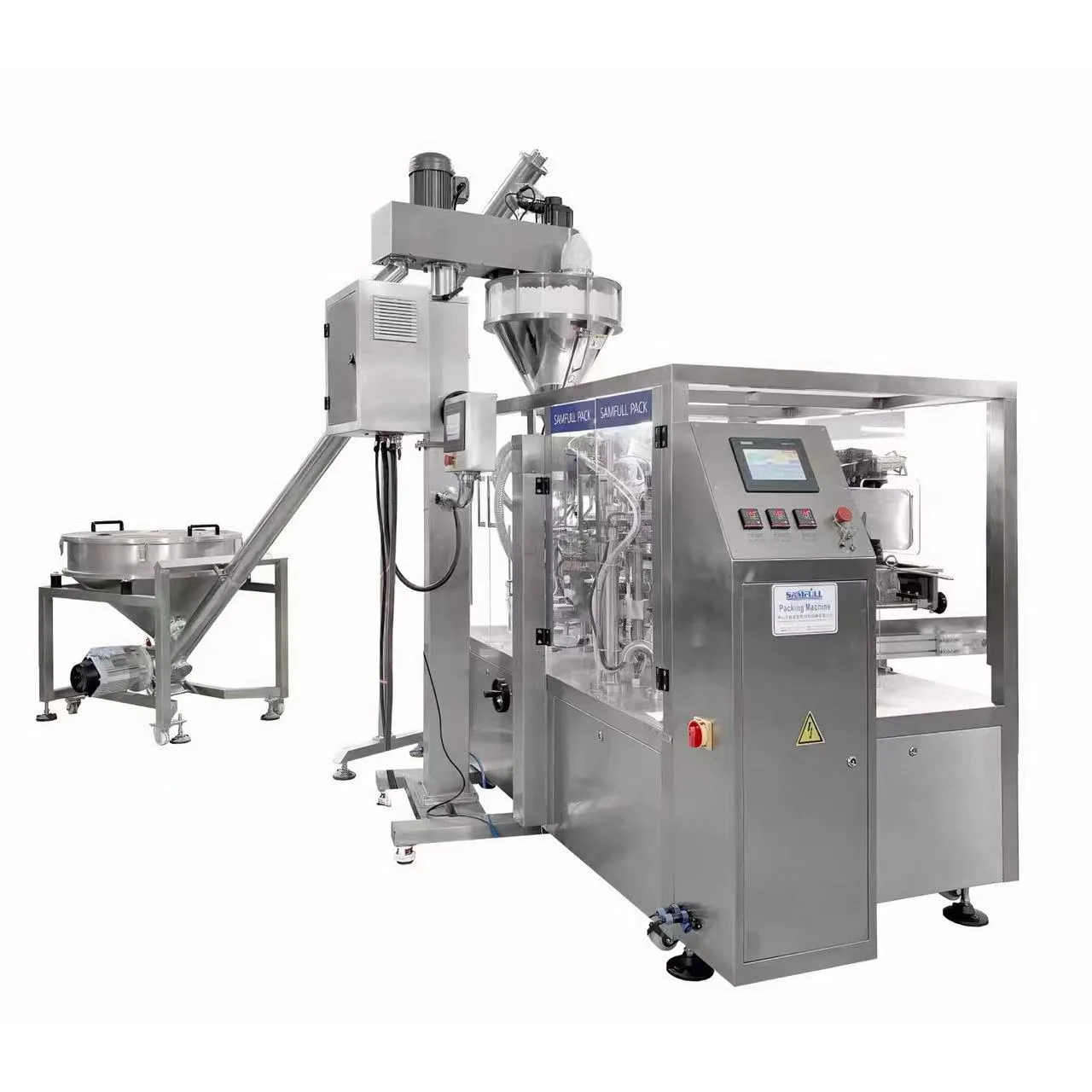

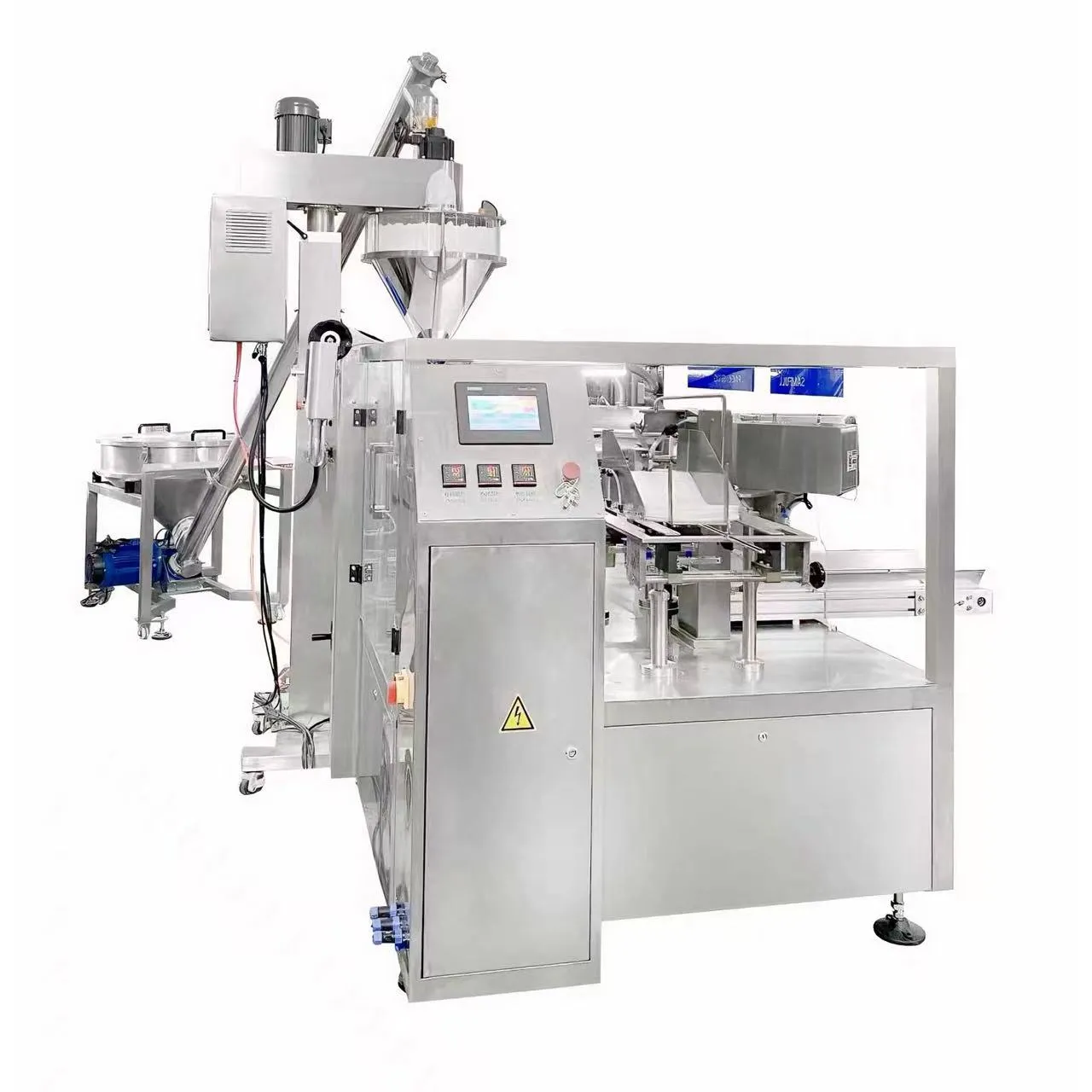

Self Raising Flour Premade Pouch Doypack Rotary Powder Packing Machine Auger Dosing System

Technical details

Parameter	SF-200	SF-250
Equipment Material	SUS304	SUS304
Bag Sizes	W: 80mm - 200mm L: 80mm - 330mm	W: 100mm - 250mm L: 100mm - 350mm
Measurement Method	Auger filler (50L)	Auger filler (50L)
Measuring Range	100 - 1000g	100 - 1000g
Packing Speed	15 - 35 bags/min	15 - 35 bags/min
Bag Type	3-side, four edge-sealing ba gself-reliance bag, handbag, spout bags, compound bag, etc.	(Same)
Equipment Dimension	L3665 x W1650 x H1650 mm	L3665 x W1650 x H1650 mm
Power And Voltage	AC380V, 50-60Hz, 3 Phases, 4.75kW	AC380V, 50-60Hz, 3 Phases, 4.75kW
Total Weight	2000kg	2000kg
Air Consumption	6-8 kgf/cm², 0.45 m³/min	6-8 kgf/cm², 0.45 m³/min

Inquire Now

APPLICATIONS

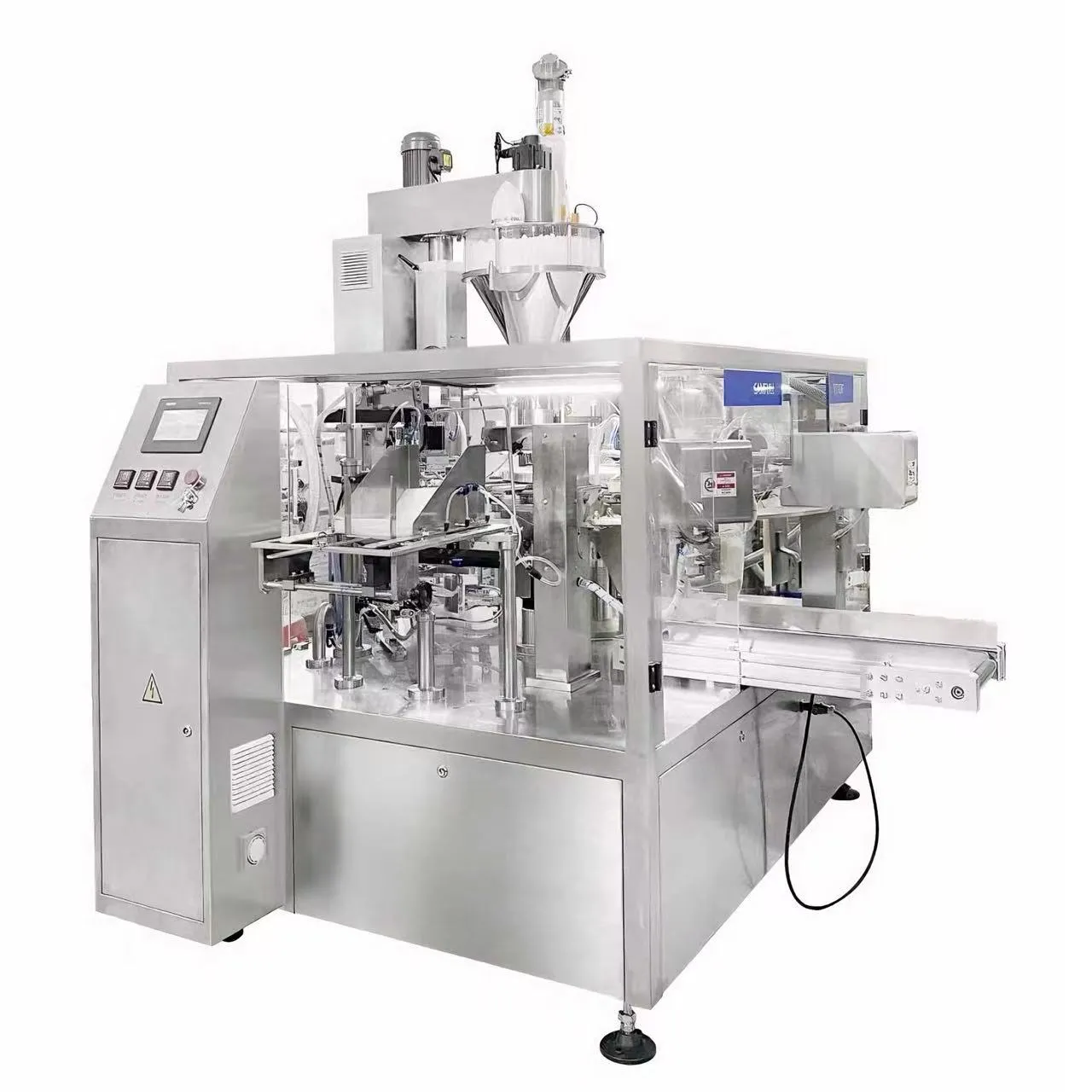

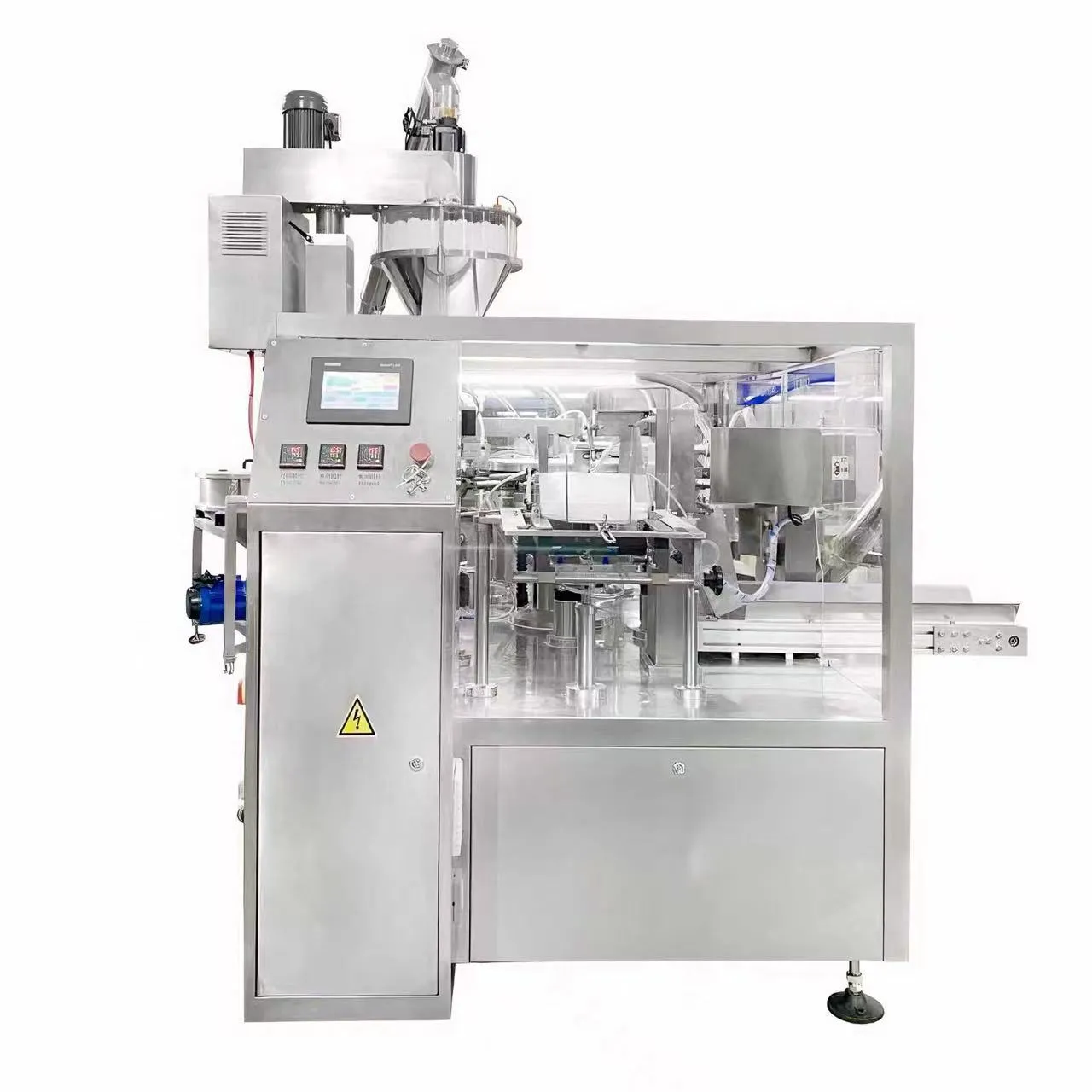

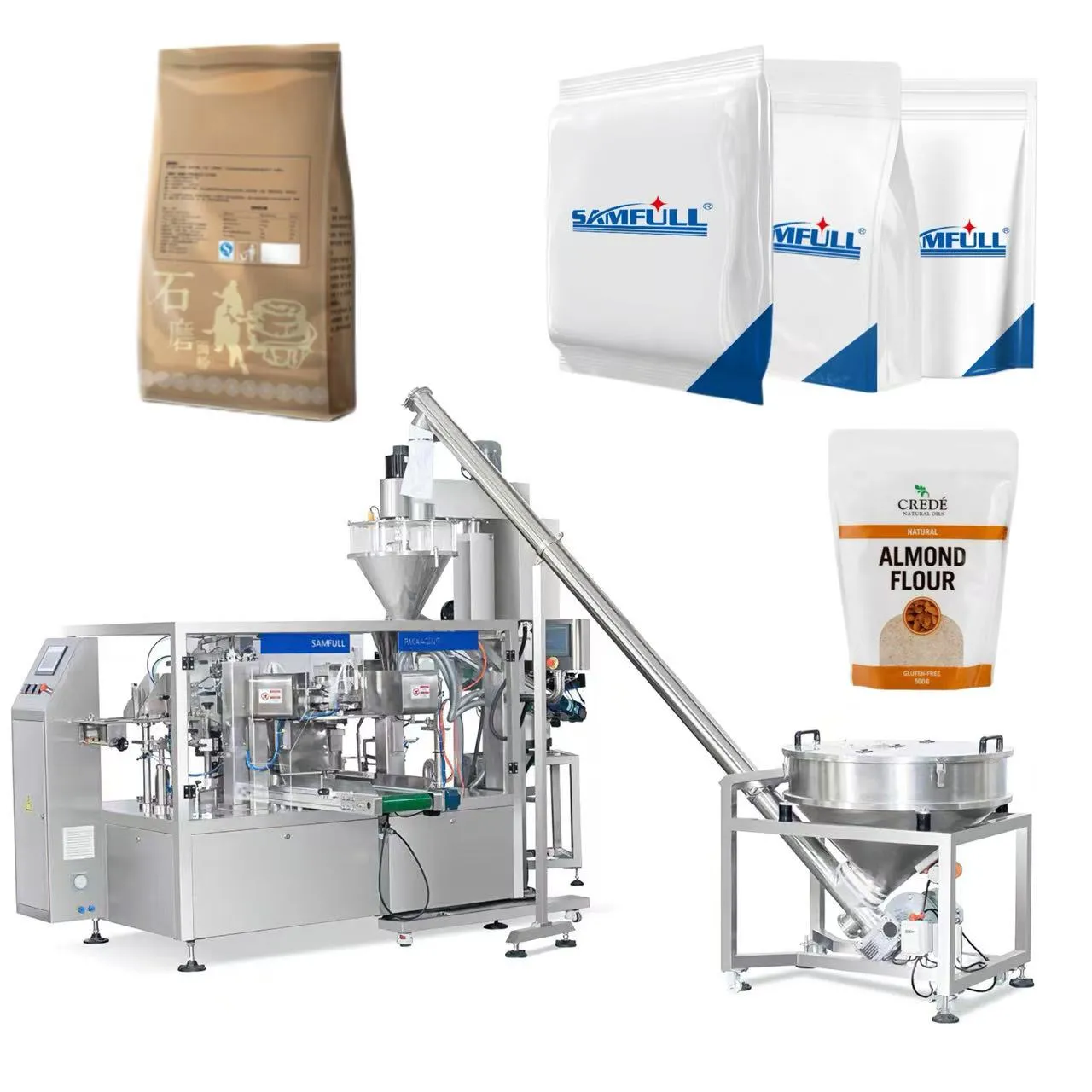

This premade pouch rotary powder filling and sealing machine is suitable for packaging a wide range of fine and free-flowing powder products, including food powders, beverage powders, seasoning powders, nutritional powders, and other similar materials. The machine supports multiple pouch types such as stand-up doypack pouches, zipper pouches, and pillow-style bags, offering flexible packaging solutions for different market requirements. It is widely used in food processing plants, powder product manufacturers, and automated packaging lines where accurate dosing, reliable sealing, and stable operation are required.

Kindly Reminder

To help us recommend the most suitable high-speed packaging solution, please provide the following details when sending your inquiry:

Product type and material characteristics
Bag dimensions (length, width, and gusset if applicable)
Filling weight per bag
Bag style (pillow bag, gusseted bag, quad seal, etc.)
Required packing speed and output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1. The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;

2. The machine adopts advanced PLC control of Germany Siemens, and the touch screen man-machine interface is more convenient to operate;

3. The working speed of the machine can be adjusted in the specified range by the frequency conversion speed regulating device;

4. Overload protection, safety device, automatic alarm when the machine working pressure is abnormal or heating tube failure;

5. It can intelligently detect whether to open the bag and whether to open the bag is complete. In the case of inappropriate feeding, no feeding, no heat sealing, no waste of bags, which can save considerable costs for users;

6. Advantages of this machine: mechanical swing 8 stations at the same time automatically adjust the bag width, suitable for different width of the bag;

7. Some components are equipped with imported tolerance plastic bearings, which do not need refueling to reduce food pollution;

8. Use prefabricated packaging bags with perfect patterns, good sealing effect and high finished product grade;

9. Can pack multi-layer composite film, single-layer PE, PP and other materials made of prefabricated bags, paper bags, a wide range of packaging;

10. Using vacuum filter, clean and pollution-free;

11. Safety performance: The machine will stop automatically when the door is opened to prevent accidental injury by the machine.
