premade pouch filling and sealing machine overview

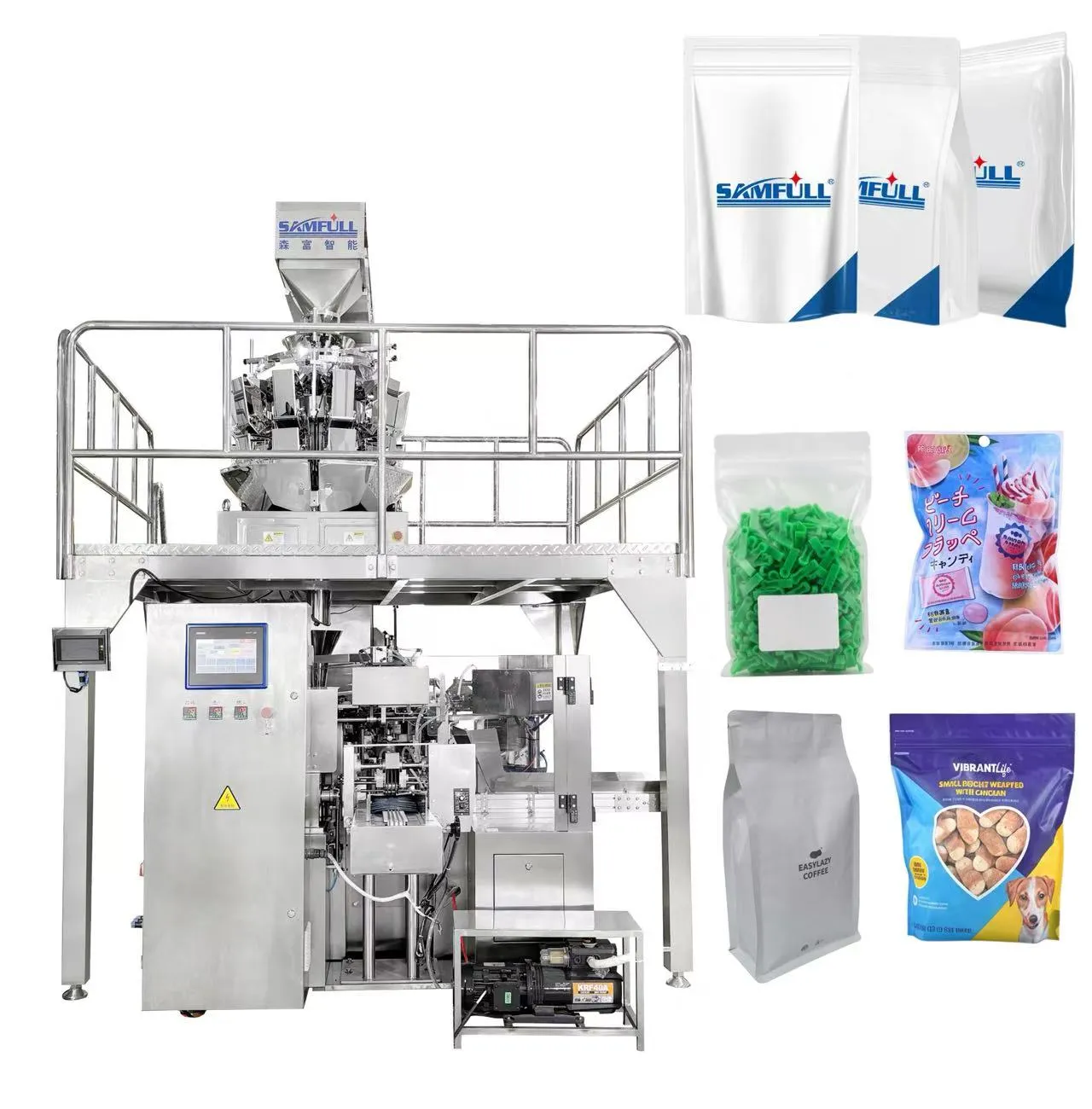

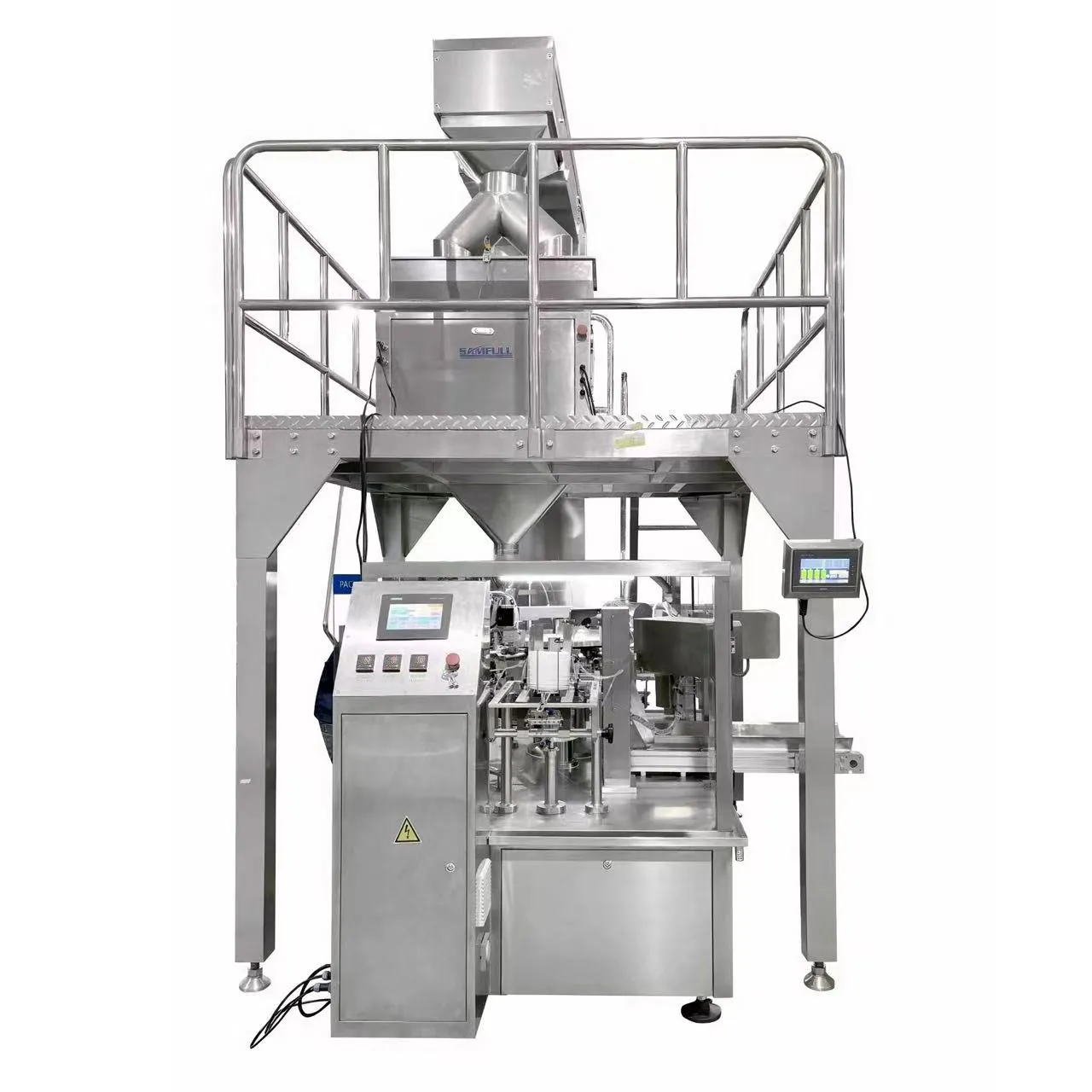

Leveling Tile Spacer Premade Doypack Tile Leveling System Granules Rotary Filling and Sealing Packing Machine with Multihead Weigher

Technical details

Model	SF–200	SF–250
Equipment Material	SUS304
Bag Sizes	W: 80–200mm L: 80–330mm	W: 100–250mm L: 100–350mm

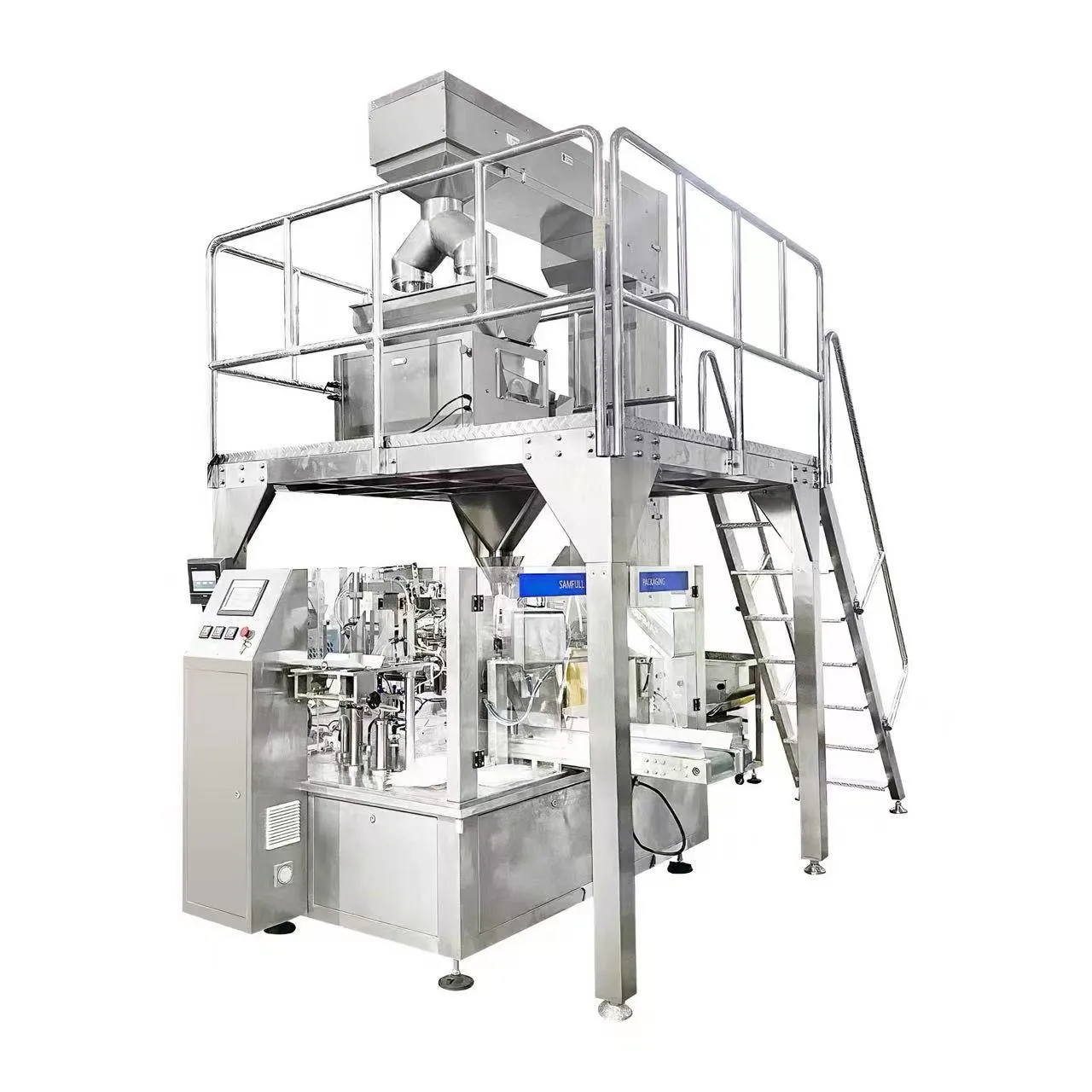

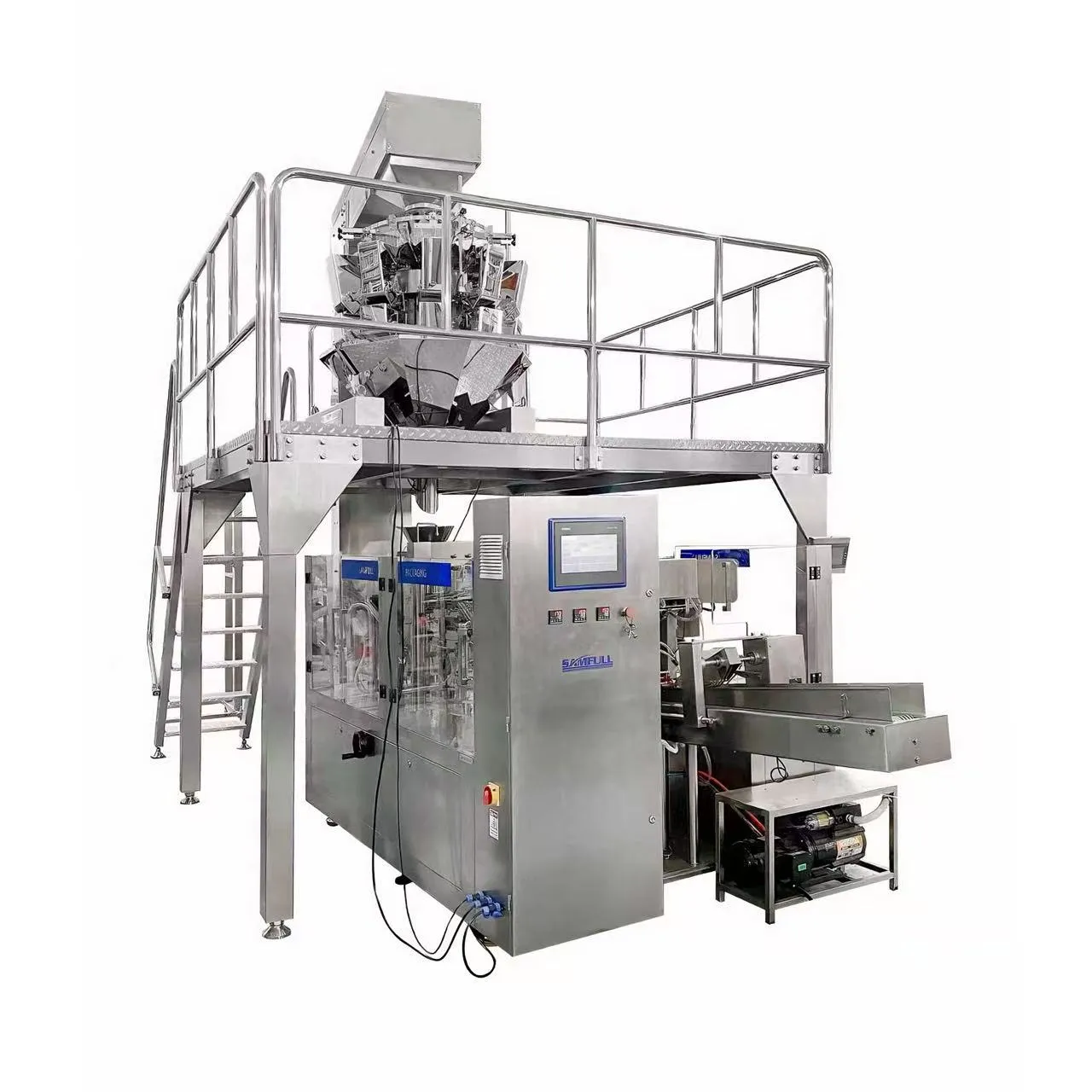

Measurement Method	4/10/14 Heads Weigher
Measuring Range	100–1000g
Packing Speed	15–40 bags/min	20–40 bags/min
Bag Type	3-side, four edge-sealing,stand up bag, handbag, spout bags, etc.
Equipment Dimension	L5000×W2000×H3700mm
Power And Voltage	AC380V, 50–60Hz, 3 Phases, 4.75kW
Total Weight	2600kg

Inquire Now

APPLICATIONS

This premade pouch filling and sealing machine with multihead weigher is suitable for automatic packaging of various granular and free-flowing products. Typical applications include hardware parts, plastic components, clips, fasteners, beans, seeds, grains, nuts, and similar materials. The system supports stand-up doypack pouches with or without zipper, delivering accurate weighing, stable sealing, and efficient production. It is widely used in hardware manufacturing, food processing, agricultural product packaging, and other industries requiring flexible and reliable premade pouch packaging solutions.

Kindly Reminder

To help us recommend the most suitable high-speed packaging solution, please provide the following details when sending your inquiry:

Product type and material characteristics
Bag dimensions (length, width, and gusset if applicable)
Filling weight per bag
Bag style (pillow bag, gusseted bag, quad seal, etc.)
Required packing speed and output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;
The machine adopts advanced PLC control of Germany Siemens, and the touch screen man-machine interface is more convenient to operate;
The working speed of the machine can be adjusted in the specified range by the frequency conversion speed regulating device;
Overload protection, safety device, automatic alarm when the machine working pressure is abnormal or heating tube failure;
It can intelligently detect whether to open the bag and whether to open the bag is complete. In the case of inappropriate feeding, no feeding, no heat sealing, no waste of bags, which can save considerable costs for users;
Advantages of this machine: mechanical swing 8 stations at the same time automatically adjust the bag width, suitable for different width of the bag;
Some components are equipped with imported tolerance plastic bearings, which do not need refueling to reduce food pollution;
Use prefabricated packaging bags with perfect patterns, good sealing effect and high finished product grade;
Can pack multi-layer composite film, single-layer PE, PP and other materials made of prefabricated bags, paper bags, a wide range of packaging;
Using vacuum filter, clean and pollution-free;
Safety performance: The machine will stop automatically when the door is opened to prevent accidental injury by the machine.
