Technical details
| Model | SF–200 | SF–250 |
| Equipment Material | SUS304 | |
| Bag Sizes | W: 80–200mm L: 80–330mm | W: 100–250mm L: 100–350mm |
| Measurement Method | 4/10/14 Heads Weigher | |
| Measuring Range | 100–1000g | |
| Packing Speed | 15–40 bags/min | 20–40 bags/min |
| Bag Type | 3-side, four edge-sealing,stand up bag, handbag, spout bags, etc. | |
| Equipment Dimension | L5000×W2000×H3700mm | |
| Power And Voltage | AC380V, 50–60Hz, 3 Phases, 4.75kW | |
| Total Weight | 2600kg | |
APPLICATIONS

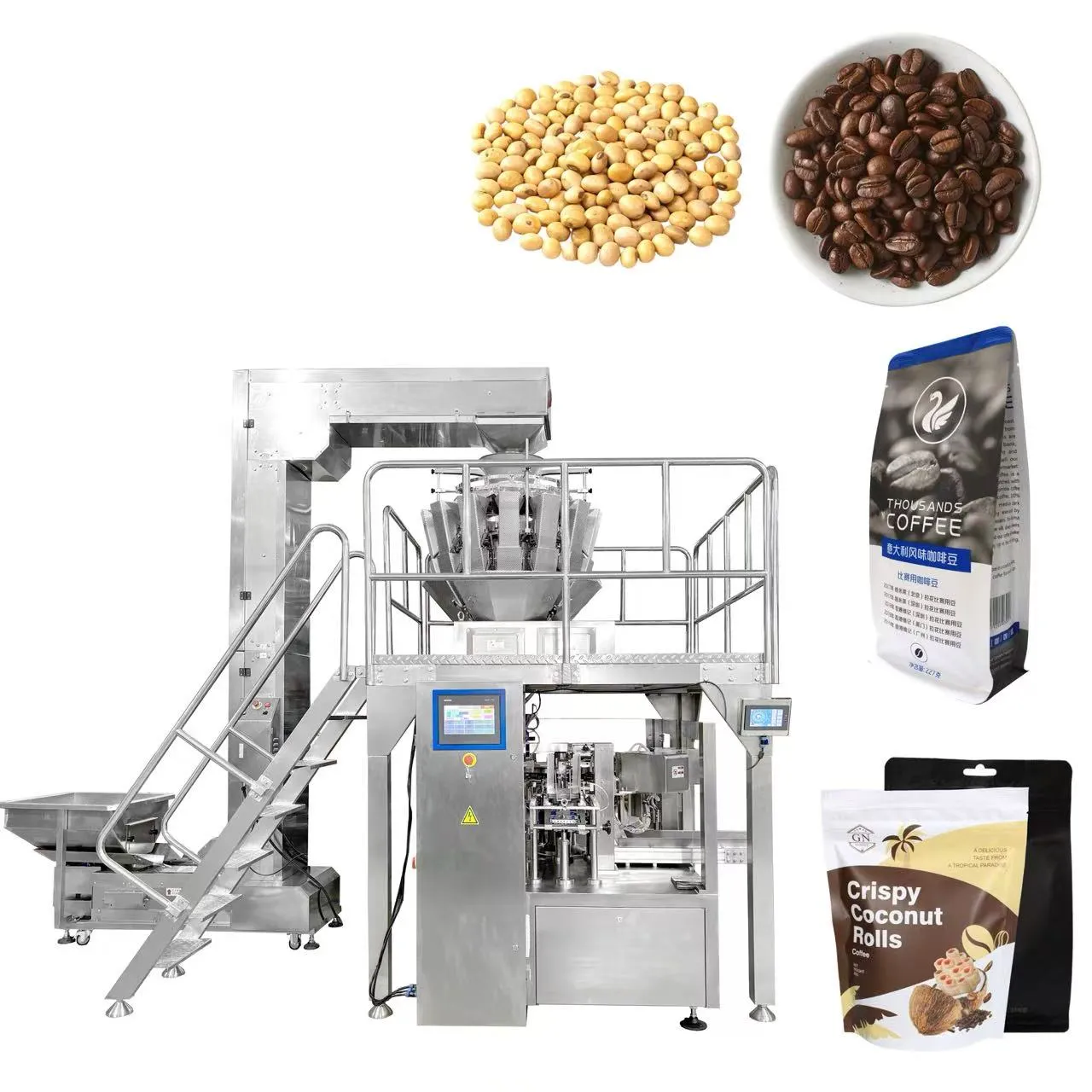

This premade pouch (doypack) filling and sealing machine is designed for automatic weighing and packaging of a wide variety of granular, solid, and small discrete products, suitable for food, hardware, and industrial applications.
Widely used for packaging free-flowing food granules and agricultural products, including coffee beans, roasted coffee, soybeans, peas, corn kernels, rice, grains, seeds, nuts, dried fruits, pet food, animal feed pellets, and snack products. The multihead weighing system ensures accurate dosing and consistent pouch filling.
Suitable for small hardware items such as tile leveling spacers, clips, plastic fittings, screws, bolts, fasteners, anchors, connectors, and similar construction accessories. The premade pouch system ensures neat appearance and reliable sealing for retail-ready packaging.
Applicable for industrial granules and solid materials, including plastic pellets, resin granules, chemical particles, masterbatch, additives, desiccants, and other non-dusty industrial components requiring precise weight control.
The machine supports various premade pouch formats, such as stand-up pouches (doypack), zipper bags, and flat pouches, making it suitable for both retail packaging and industrial bulk packing lines.
Kindly Reminder
To help us recommend the most suitable high-speed packaging solution, please provide the following details when sending your inquiry:
Product type and material characteristics
Bag dimensions (length, width, and gusset if applicable)
Filling weight per bag
Bag style (pillow bag, gusseted bag, quad seal, etc.)
Required packing speed and output capacity
PACKAGING
Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.
FUNCTIONAL FEATURES
The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;
The machine adopts advanced PLC control of Germany Siemens, and the touch screen man-machine interface is more convenient to operate;
The working speed of the machine can be adjusted in the specified range by the frequency conversion speed regulating device;
Overload protection, safety device, automatic alarm when the machine working pressure is abnormal or heating tube failure;
It can intelligently detect whether to open the bag and whether to open the bag is complete. In the case of inappropriate feeding, no feeding, no heat sealing, no waste of bags, which can save considerable costs for users;
Advantages of this machine: mechanical swing 8 stations at the same time automatically adjust the bag width, suitable for different width of the bag;
Some components are equipped with imported tolerance plastic bearings, which do not need refueling to reduce food pollution;
Use prefabricated packaging bags with perfect patterns, good sealing effect and high finished product grade;
Can pack multi-layer composite film, single-layer PE, PP and other materials made of prefabricated bags, paper bags, a wide range of packaging;
Using vacuum filter, clean and pollution-free;
Safety performance: The machine will stop automatically when the door is opened to prevent accidental injury by the machine.
