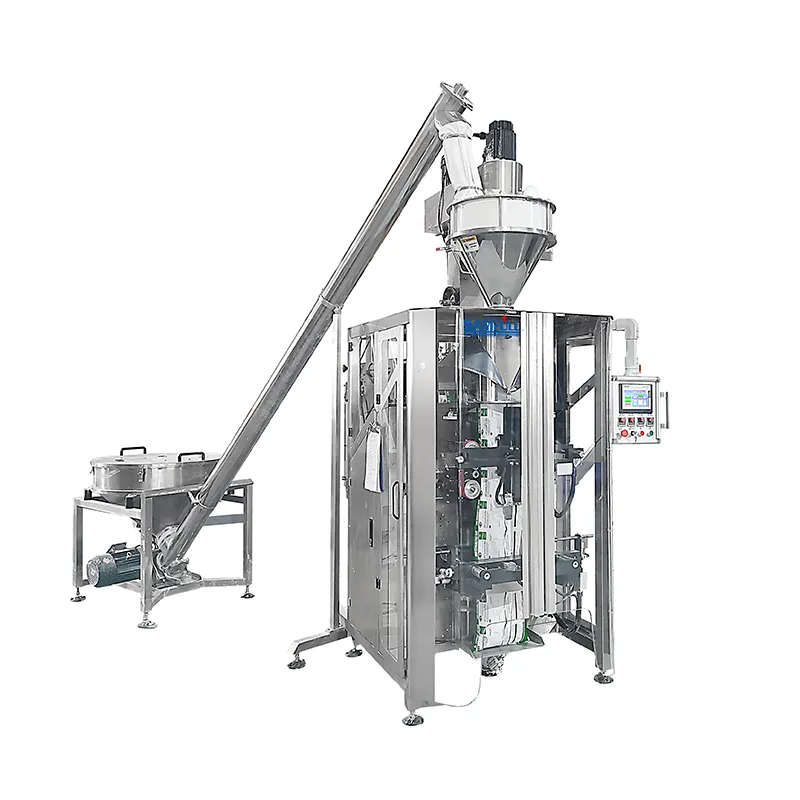

Podwer VFFS Packing Machine(3.0T)

Technical details

Model	SF-2.0T	SF-3.0T
Max Width Of Roll Film	520mm	720mm
Bag Sizes	Bag width: W 80–250mm Bag length: L 100–400mm	Bag width: W 150–350mm Bag length: L 100–480mm
Packing Speed	15–35 bags/min	5–30 bags/min
Packing Material	OPP/CPP, OPP/PE, PET/PE, PE
Bag Type	Back sealing / Pillow bag / Gusset bag / Quad seal bag
Air Consumption	6–8 kgf/cm², 0.6 m³/min
Power And Voltage	AC380V Three phase, 50–60Hz, 6.0kW	AC380V Three phase, 50–60Hz, 6.5kW
Total Weight	1200kg	1300kg
Dimension	L4105×W2579×H2855mm	L4305×W2685×H3155mm

Inquire Now

APPLICATIONS

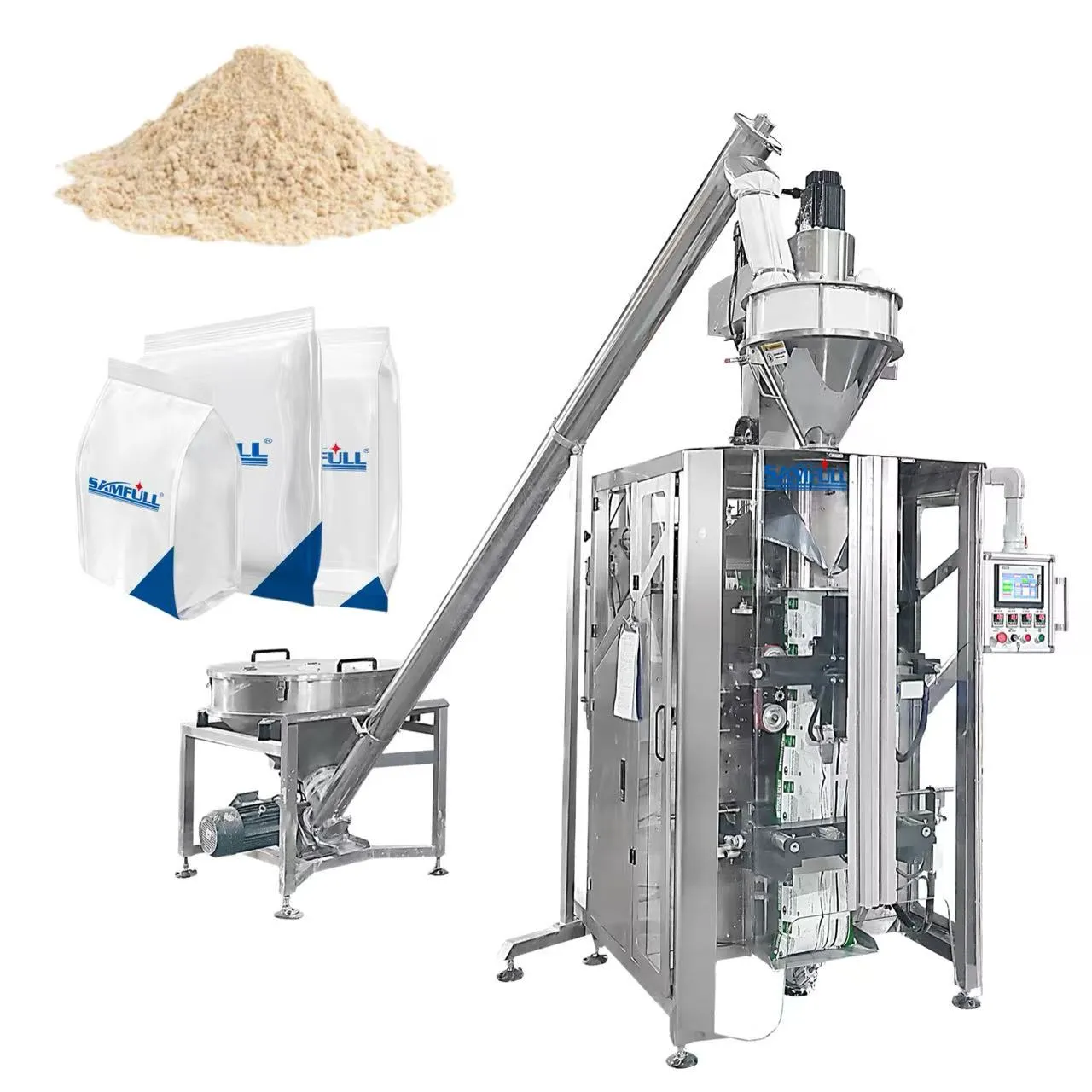

Suitable for powder packing such as flour, intestinal powder,coffee powder, milk powder,milk tea powder, seasoning, and building materials powder products,etc

PACKAGING

BOPP / Polyethylene, Aluminium / Polyethylene, Polyester / Aluminizing / Polyethylene, Nylon / CPP, Paper / Polyethylene, etc.

FUNCTIONAL FEATURES

1. The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;

2. Equipped with safety protection, in line with the requirements of enterprise safety management;

3. Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;

4. Servo motor film drawing, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;

5. Double belt film drawing, film drawing system and color code control system can be automatically adjusted by touch screen, simple operation for sealing and notching correction;

6. The touch screen can store a variety of packaging process parameters of different products, and can be used at any time without adjustment when replacing products;

7. The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;

8. The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag-making, filling, sealing, cutting and product conveying;

9. It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs;

10. The machine adopts closed Structure to prevent dust from entering the machine effectively.
