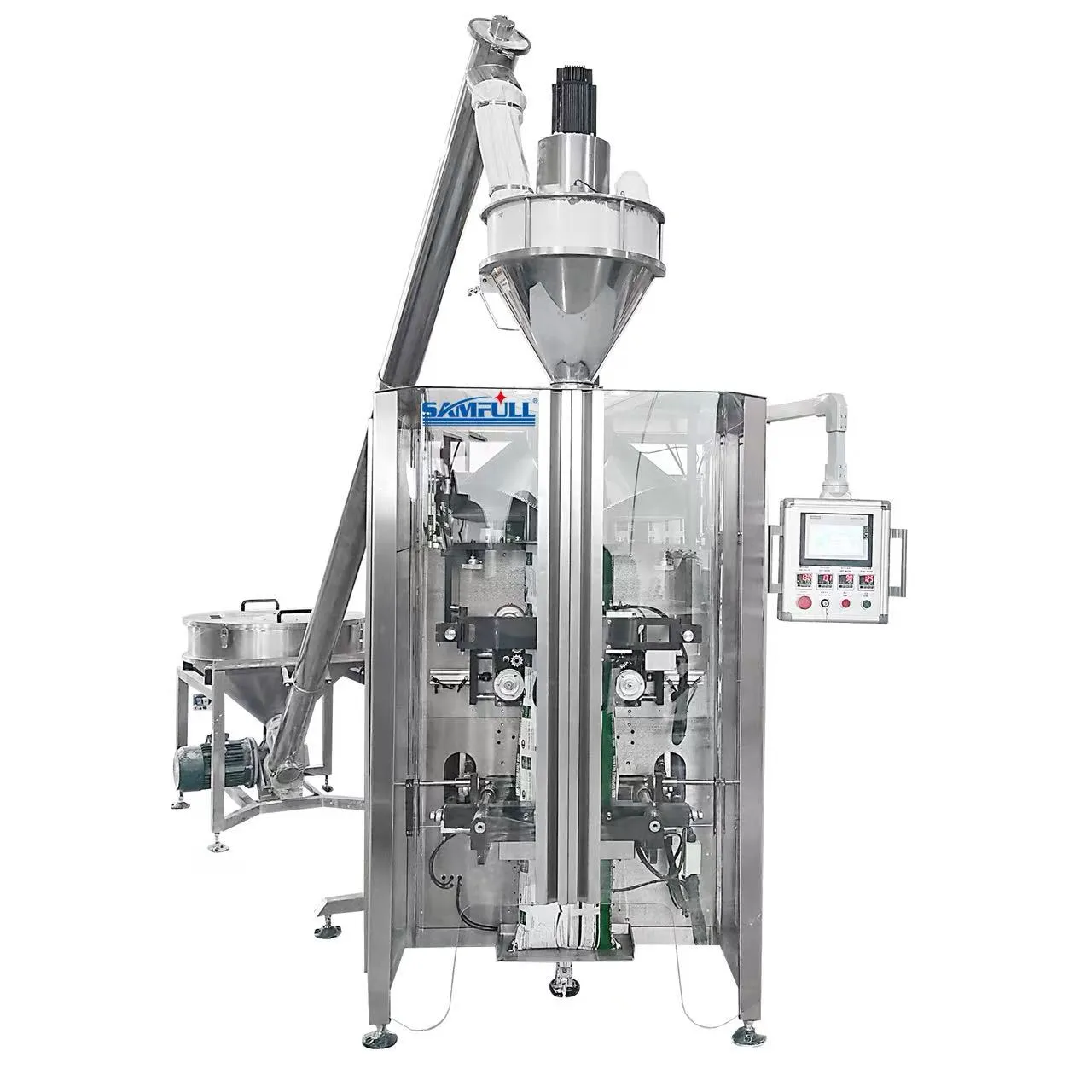

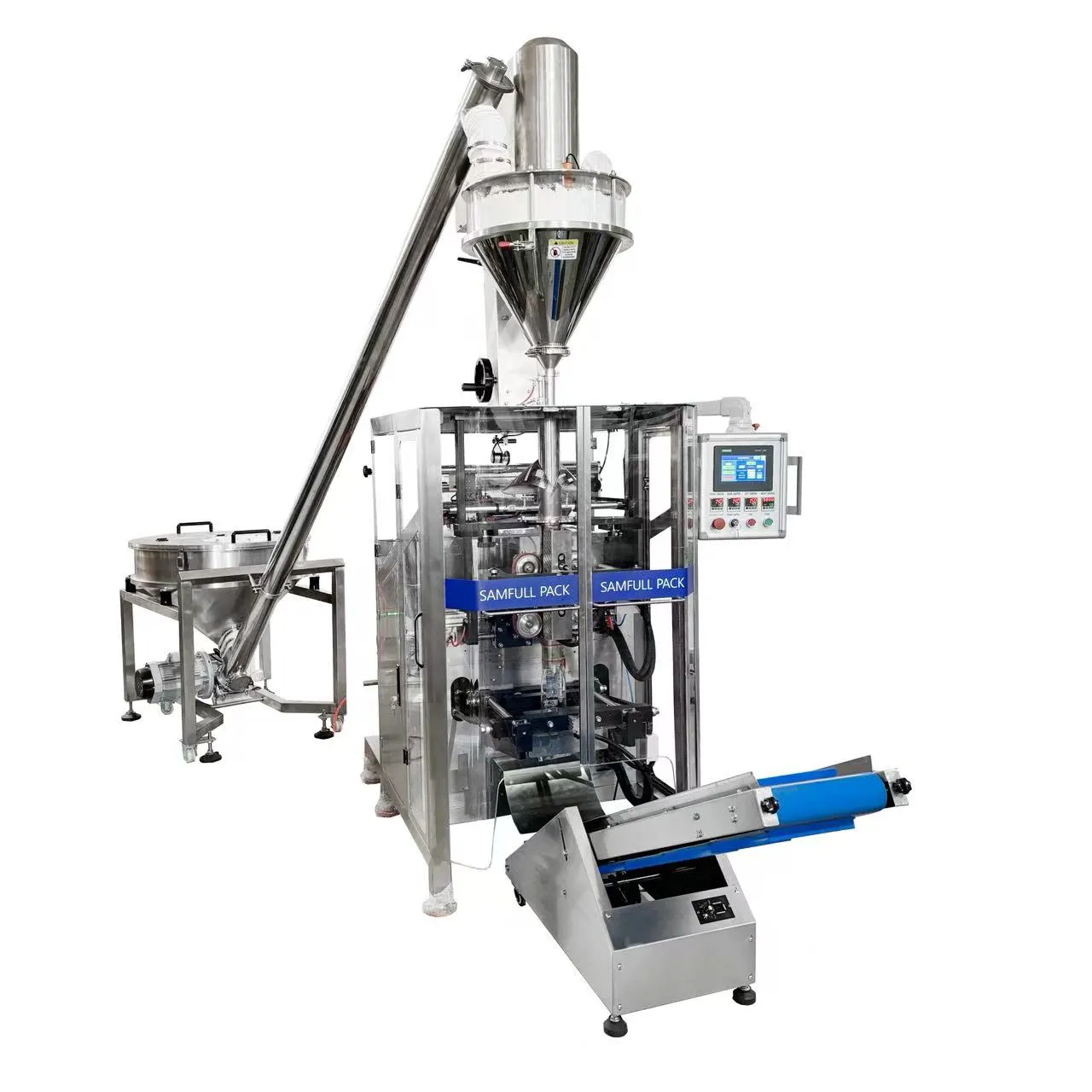

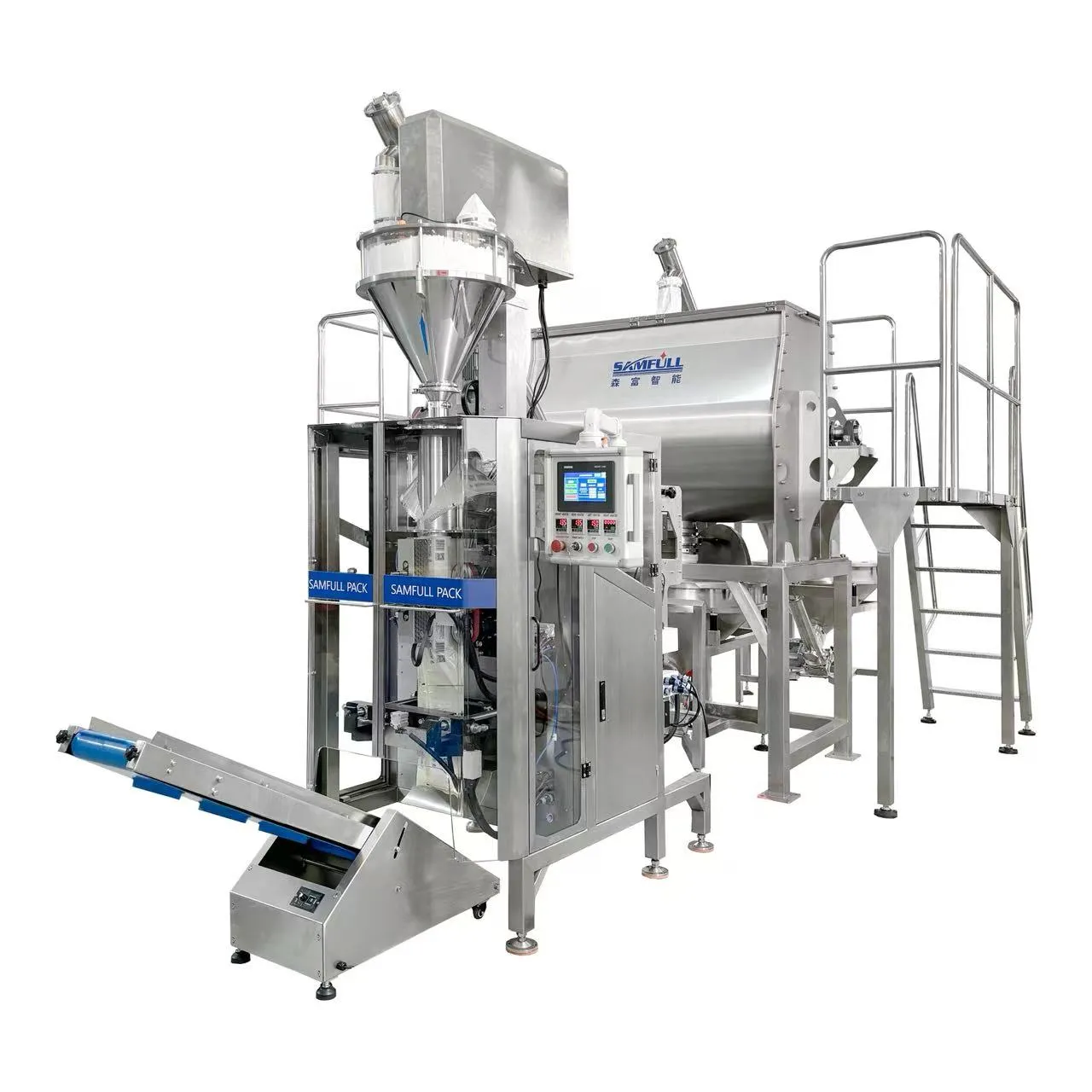

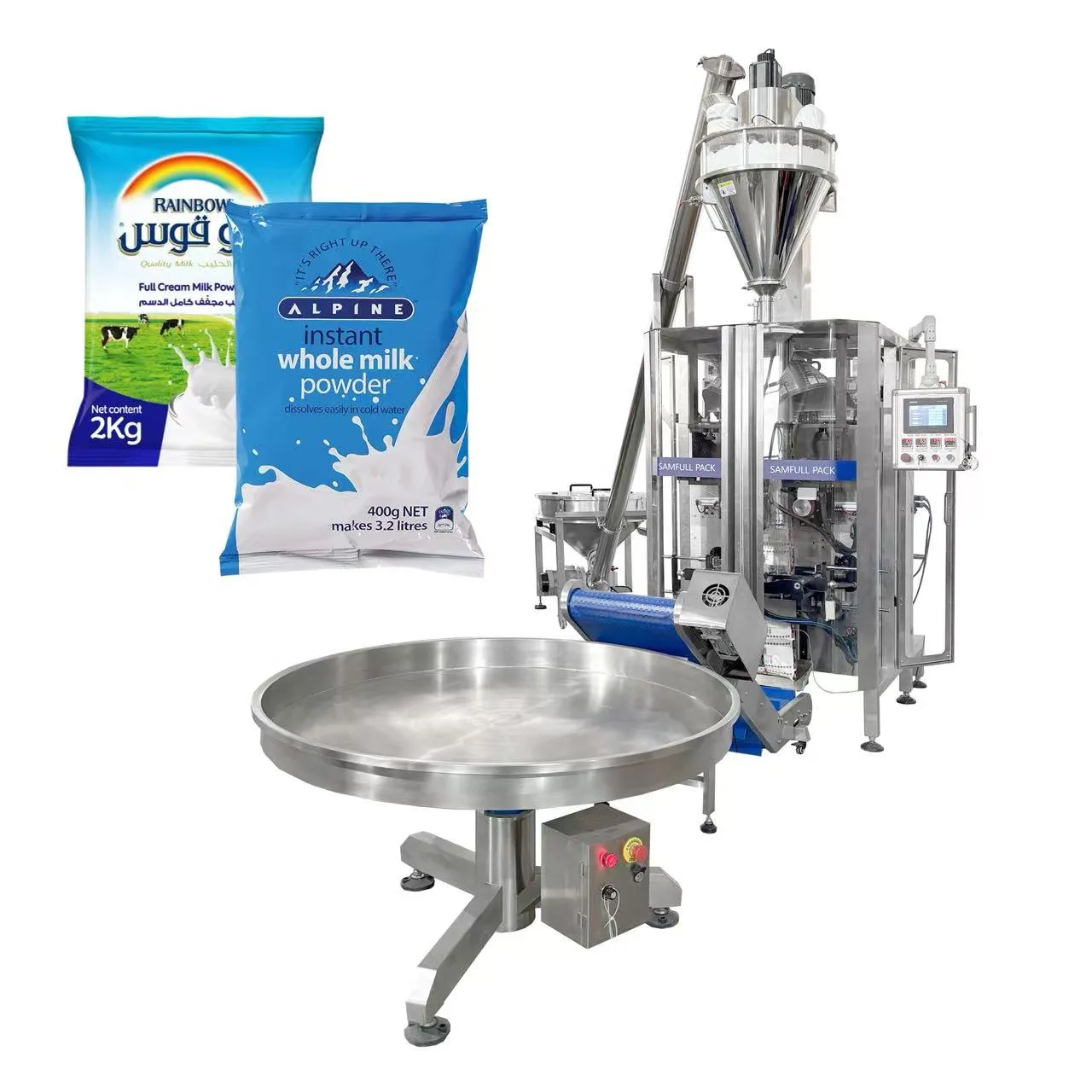

Formula Milk Powder Packaging Machine Vertical Powder Packaging for Dairy and Nutritional Powders

Technical details

Model	SF-2.0T	SF-3.0T
Max Width Of Roll Film	520mm	720mm
Bag Sizes	W 80–250mm L 100–400mm	W 150–350mm L 100–480mm
Packing Speed	15–35 bags/min	5–30 bags/min
Packing Material	OPP/CPP, OPP/PE, PET/PE, PE
Bag Type	Back sealing / Pillow bag Gusset bag / Quad seal bag
Total Weight	1200kg	1300kg
Dimension	L4105×W2579×H2855mm	L4305×W2685×H3155mm

Inquire Now

APPLICATIONS

This vertical powder VFFS packaging machine is designed for hygienic and efficient packaging of a wide range of food-grade powders. In addition to formula milk powder, it is suitable for dairy powders, whole milk powder, skim milk powder, protein powder, nutritional supplements, infant cereal powder, coffee powder, cocoa powder, flour, starch, and seasoning powders.

Equipped with a precision auger dosing system and stable film forming structure, the machine ensures consistent filling accuracy and reliable sealing performance for fine and light-density powders. The stainless steel construction meets food production requirements and supports continuous automatic operation in dairy processing plants, nutritional product factories, and food manufacturing facilities.

The system supports pillow bags and gusseted bag formats and can be integrated with upstream powder feeding systems and downstream conveying or cartoning units to form a complete automatic powder packaging line.

Kindly Reminder

Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.

Product type – What powder or granular material do you want to package? (e.g., food, feed, chemical, industrial)

Filling weight per bag

Bag dimensions (length and width)

Bag style (pillow bag, gusseted bag, or customized pouch)

Required packing speed and output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1. The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;

2. Equipped with safety protection, in line with the requirements of enterprise safety management;

3. Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;

4. Servo motor film drawing, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;

5. Double belt film drawing, film drawing system and color code control system can be automatically adjusted by touch screen, simple operation for sealing and notching correction;

6. The touch screen can store a variety of packaging process parameters of different products, and can be used at any time without adjustment when replacing products;

7. The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;

8. The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag-making, filling, sealing, cutting and product conveying;

9. It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs;

10. The machine adopts closed Structure to prevent dust from entering the machine effectively.
