Technical details
| Model | SF-2.0T | SF-3.0T |
| Max Width Of Roll Film | 520mm | 720mm |
| Bag Sizes | W 80–250mm L 100–400mm | W 150–350mm L 100–480mm |
| Packing Speed | 15–35 bags/min | 5–30 bags/min |
| Packing Material | OPP/CPP, OPP/PE, PET/PE, PE | |
| Bag Type | Back sealing / Pillow bag Gusset bag / Quad seal bag | |
| Air Consumption | 6–8 kgf/cm², 0.6 m³/min | |
| Power And Voltage | AC380V Three phase 50–60Hz, 6.0kW | AC380V Three phase 50–60Hz, 6.5kW |
| Total Weight | 1200kg | 1300kg |
| Dimension | L4105×W2579×H2855mm | L4305×W2685×H3155mm |
APPLICATIONS

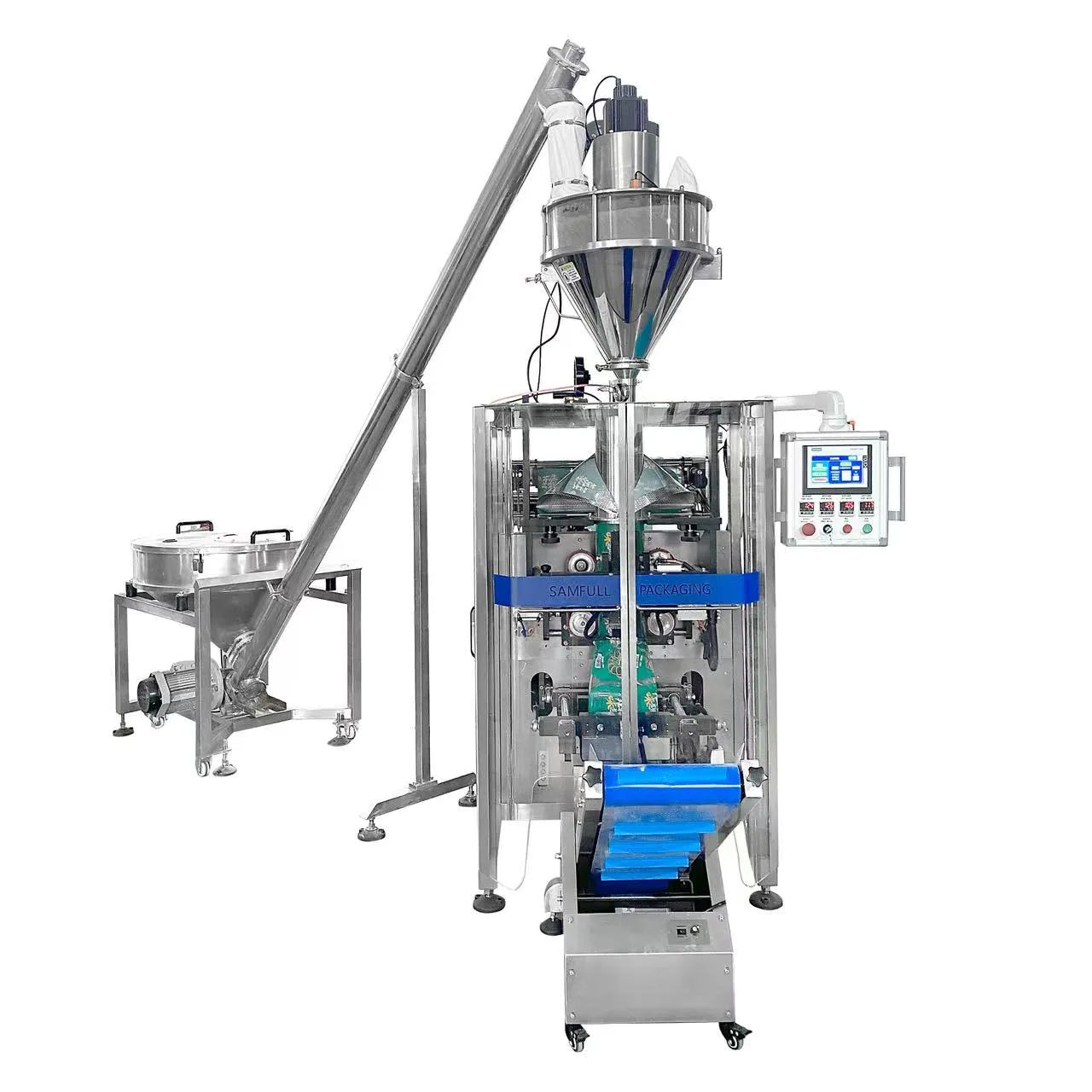

This vertical powder VFFS packaging machine is suitable for automatic weighing, filling, and sealing of a wide range of fine, free-flowing, and dusty powder products. Typical applications include food powders such as flour, starch, milk powder, protein powder, coffee powder, seasoning powder, and baking ingredients; feed and fermentation-related powders such as distillers yeast, enzyme powder, premix additives, and nutritional supplements; as well as chemical and industrial powders including detergents, additives, pigments, and auxiliary materials.

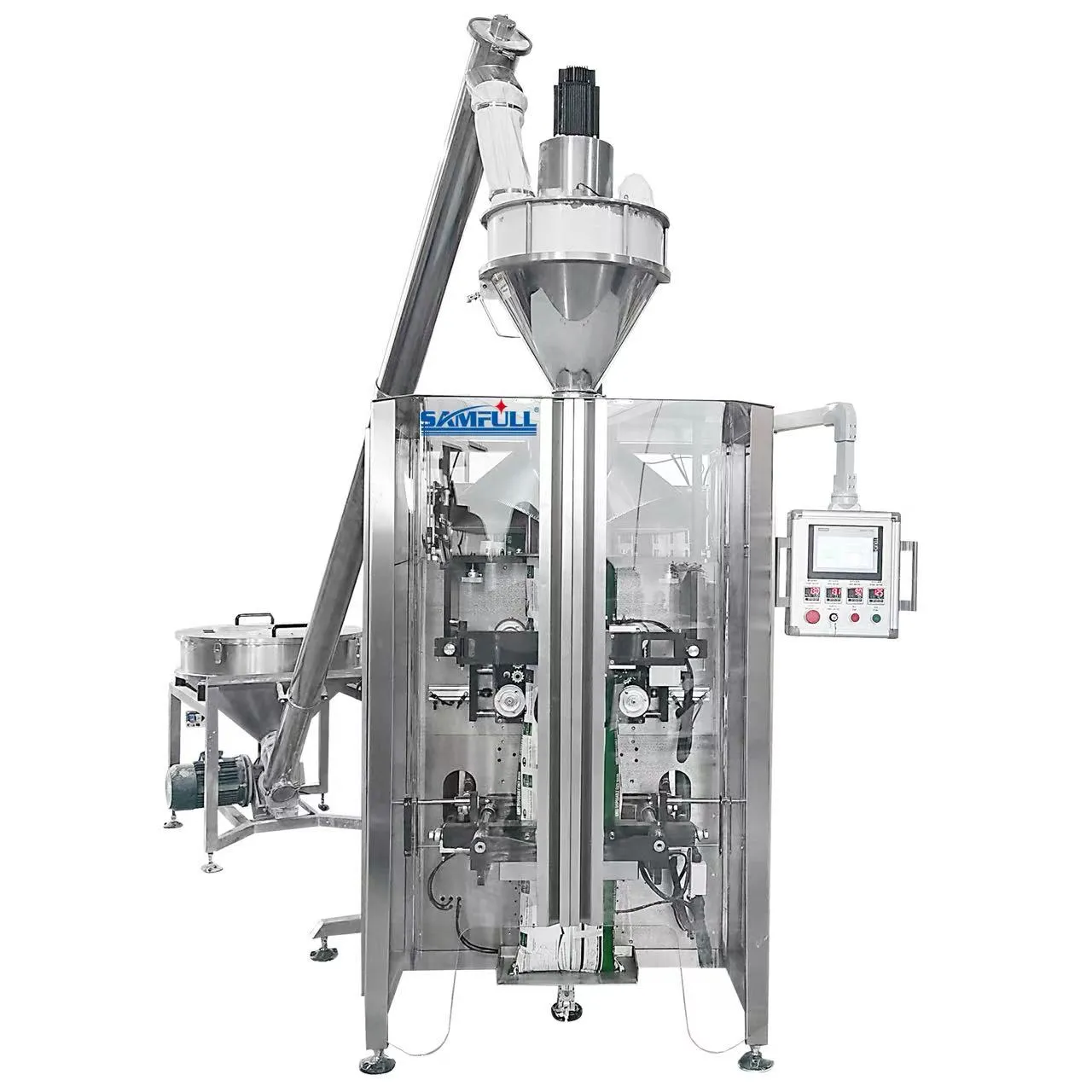

Equipped with a high-accuracy auger filler weighing system, the machine ensures consistent dosing performance, stable bag forming, and reliable sealing quality. It is widely used in food processing plants, feed mills, fermentation factories, and chemical production facilities requiring continuous, automated, and hygienic powder packaging solutions.
Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.
Product type – What powder or granular material do you want to package? (e.g., food, feed, chemical, industrial)
Filling weight per bag
Bag dimensions (length and width)
Bag style (pillow bag, gusseted bag, or customized pouch)
Required packing speed and output capacity
PACKAGING
Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.
FUNCTIONAL FEATURES
1. The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;
2. Equipped with safety protection, in line with the requirements of enterprise safety management;

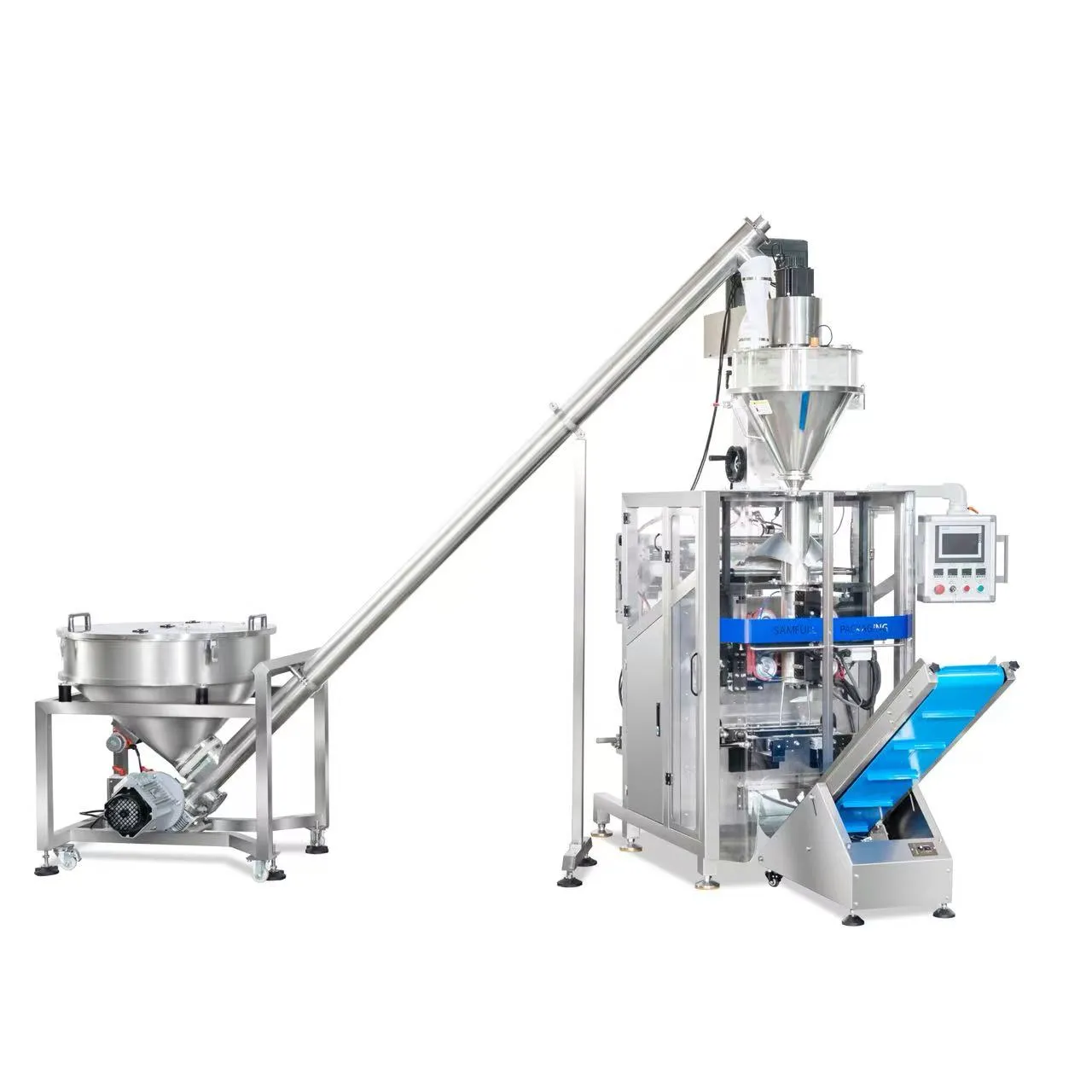

3. Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;
4. Servo motor film drawing, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;

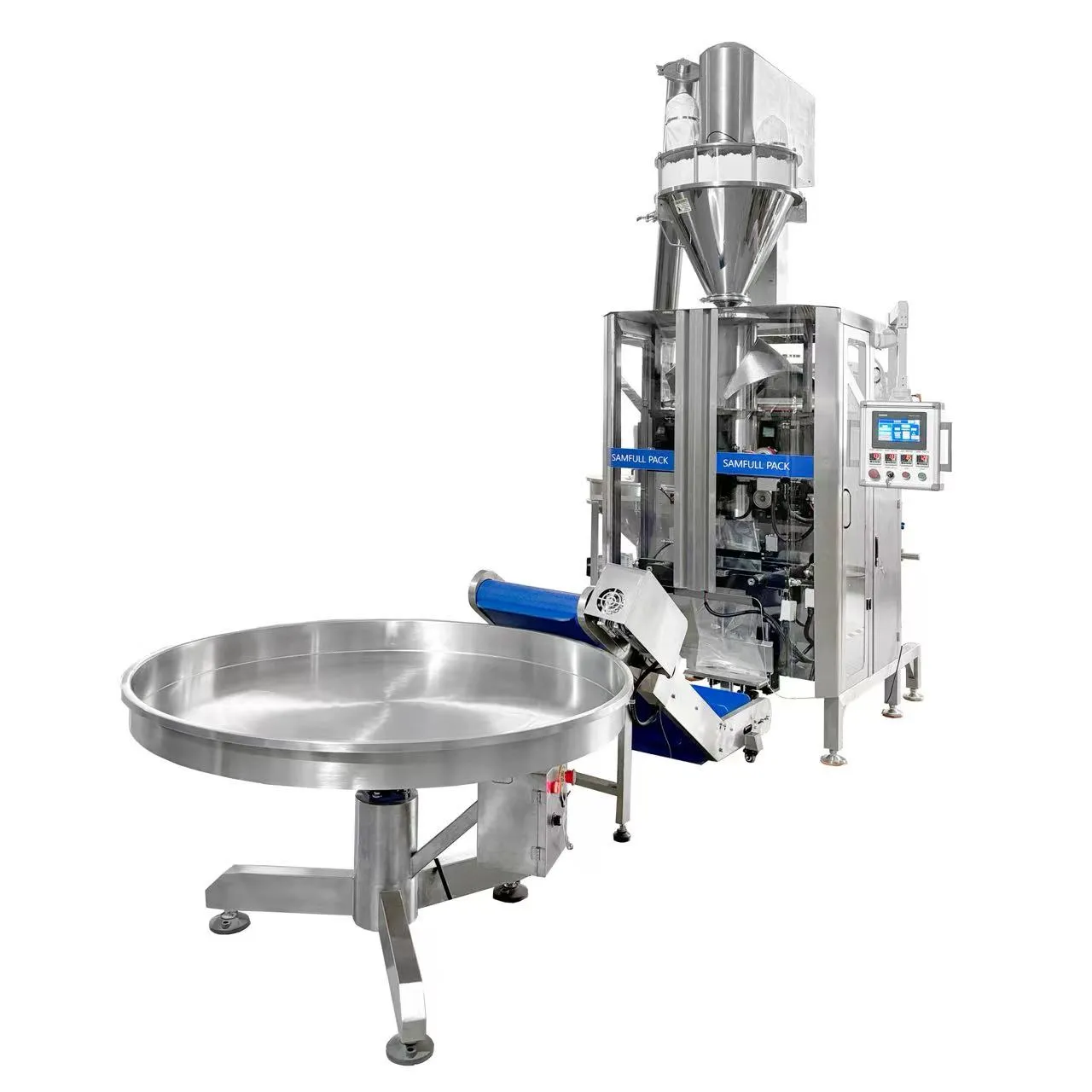

5. Double belt film drawing, film drawing system and color code control system can be automatically adjusted by touch screen, simple operation for sealing and notching correction;
6. The touch screen can store a variety of packaging process parameters of different products, and can be used at any time without adjustment when replacing products;
7. The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;
8. The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag-making, filling, sealing, cutting and product conveying;
9. It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs;
10. The machine adopts closed Structure to prevent dust from entering the machine effectively.
