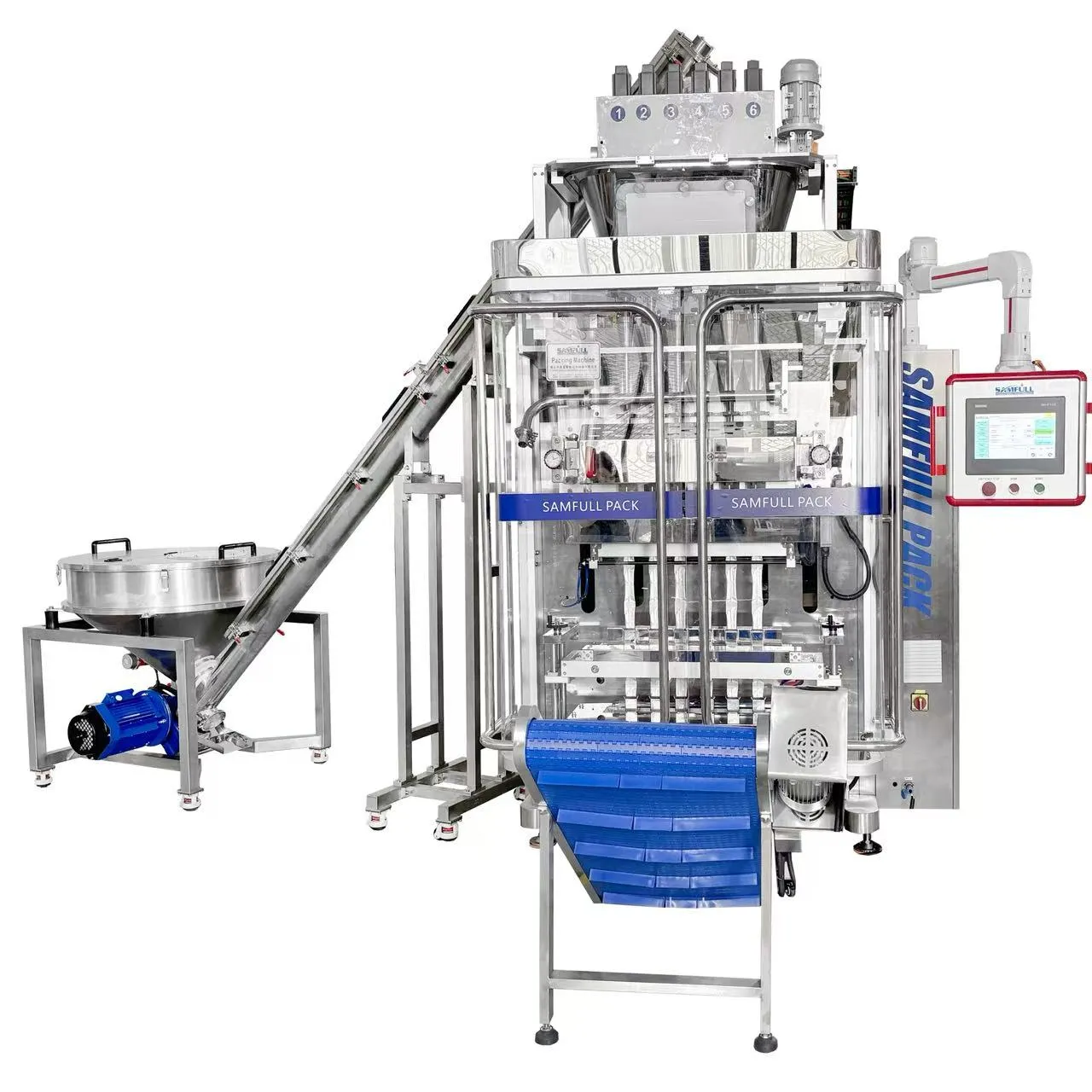

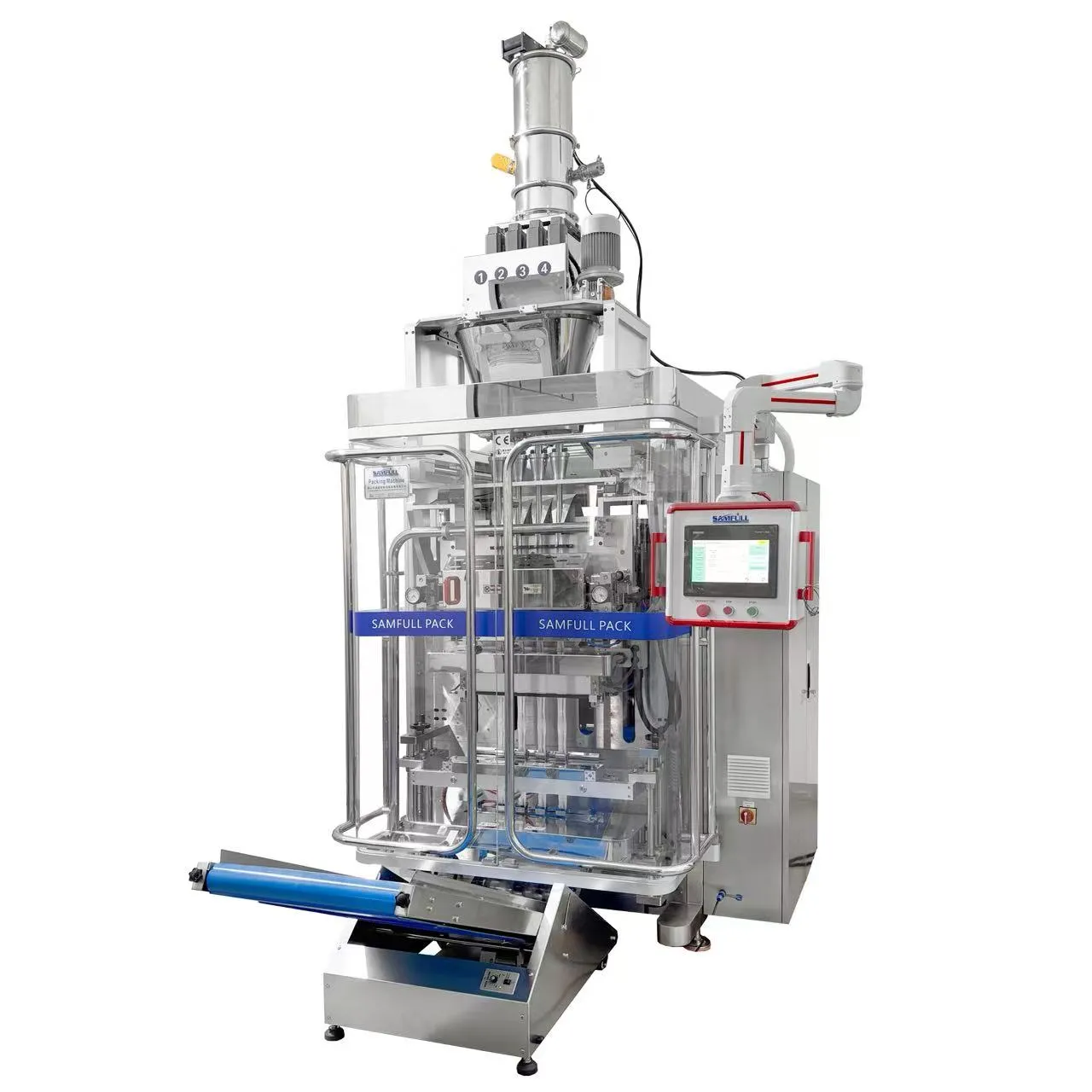

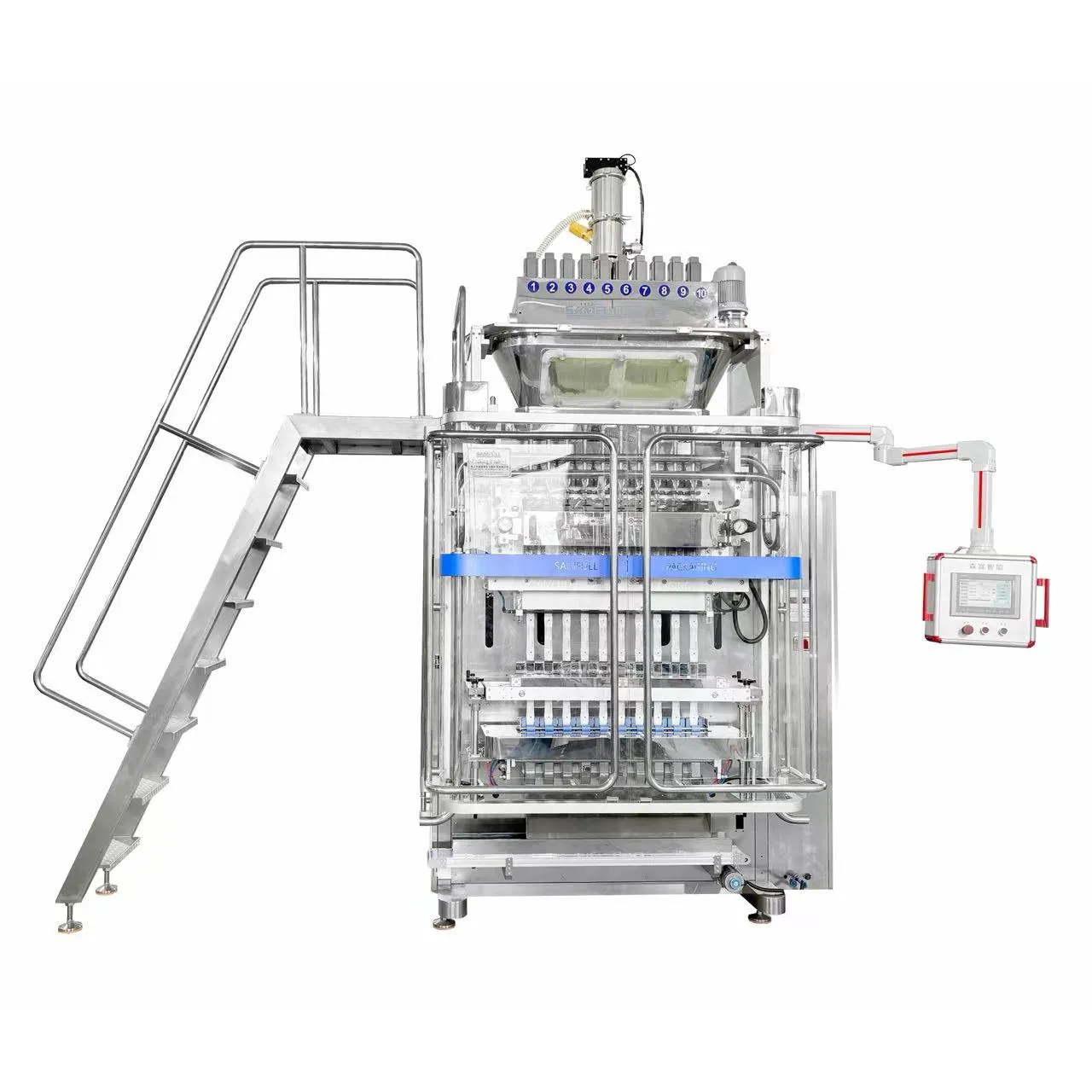

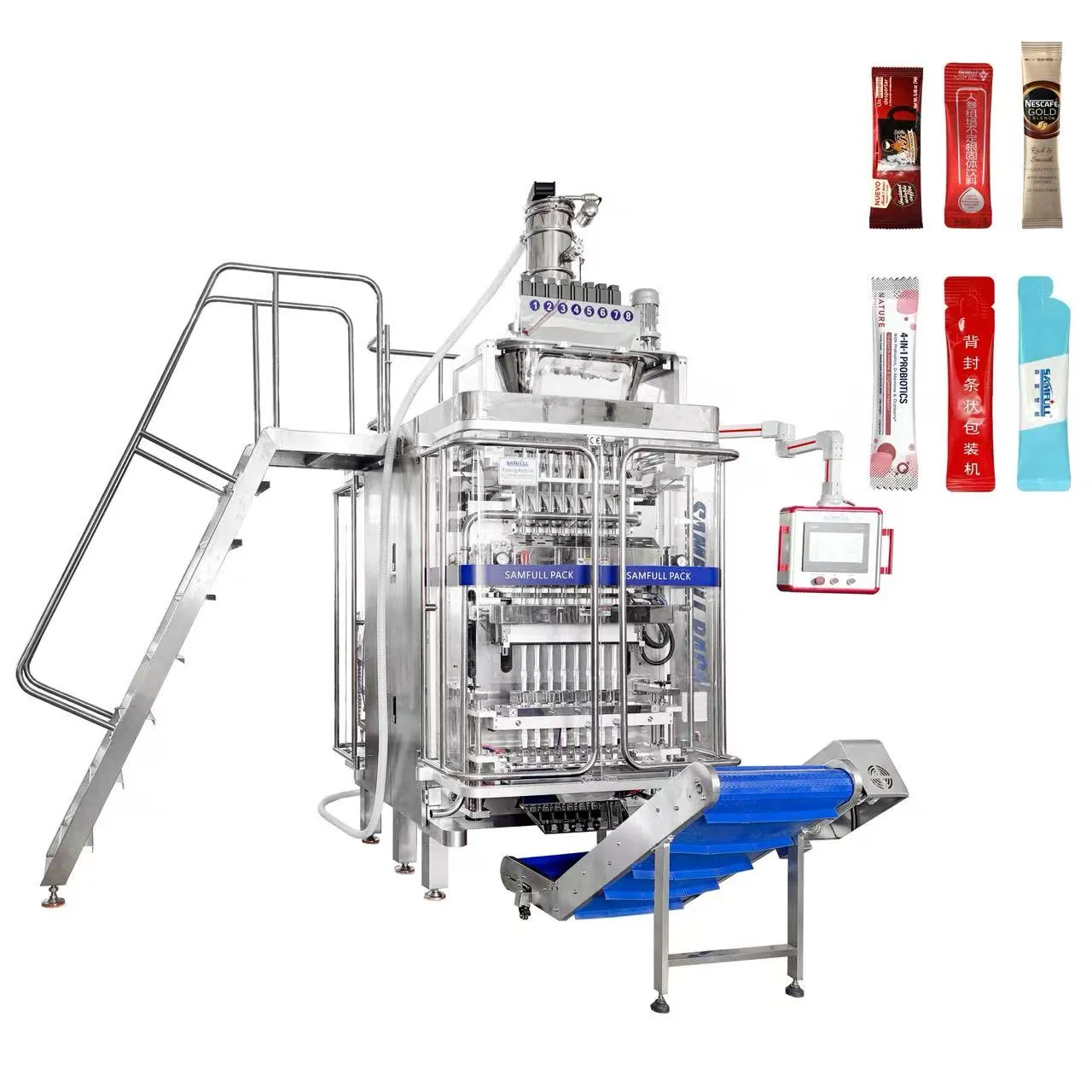

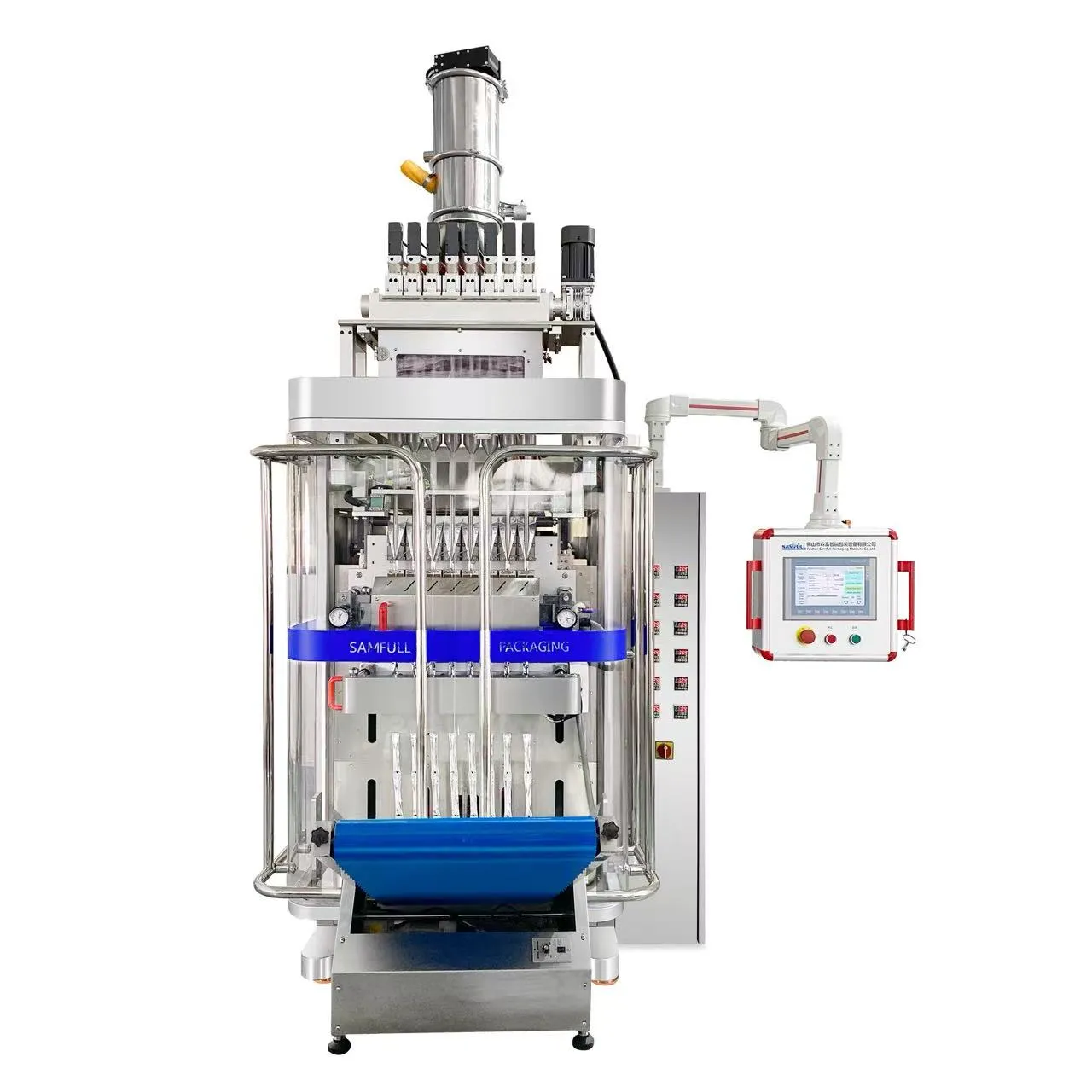

Powder Multilane Packing Machine
Technical details
Item | SF2.0S | SF3.0S | SF4.0S |
Track Number | 4-10 (Track) | 4-12 (Track) | 4-12 (Track) |
Filling Method | Auger filler by servo motor | ||
Capacity | 30-45 cut/min (According to the material condition) | ||
Film Width & Thickness | 520 mm, 0.06-0.1 mm | 720 mm, 0.06-0.1 mm | 820 mm, 0.06-0.1 mm |
Sachet Size | L: 45-160 mm / W: 17-80 mm (Customized bag length) | ||
Sealing Type | Back sealing / Stick bag | ||
Cutting Type | Flatten cutting / Zig zag cutting / Round cutting | ||
Air Consumption & Voltage | 0.8 MPa0.8 m³ / 4.5 kW | 0.8 MPa0.8 m³ / 5.5 kW | 0.8 MPa0.8 m³ / 6.5 kW |
Power | AC380V Three phase, AC220V Single phase, 50-60Hz | ||
Dimension & Total Weight | L1400×W2000×H2800 mm1100 kg | L1500×W2000×H2800 mm1200 kg | L1600×W2100×H2800 mm1300 kg |
APPLICATIONS
This multilane powder stick pack packing machine is suitable for automatic packaging of a wide range of fine, free-flowing, and dusty powder products. Typical applications include food powders, beverage powders, seasoning powders, pharmaceutical and nutraceutical powders, chemical additives, and daily-use powder products. The machine supports 4–10 lanes back seal stick pack sachets, offering high-speed output, consistent dosing accuracy, and stable sealing quality. It is widely used in food processing plants, pharmaceutical manufacturing, chemical factories, and industrial powder packaging lines where efficient, continuous, and large-scale production is required.
Kindly Reminder
To help us recommend the most suitable high-speed packaging solution, please provide the following details when sending your inquiry:
Product type and material characteristics
Bag dimensions (length, width, and gusset if applicable)
Filling weight per bag
Bag style (pillow bag, gusseted bag, quad seal, etc.)
Required packing speed and output capacity
PACKAGING
Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.
FUNCTIONAL FEATURES
1.The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;
2.Equipment with safety protection, in line with enterprise safety management requirements;
3.Imported-brand electrical components; Siemens PLC + touch screen control, high reliability and intelligence, high speed and high efficiency;
4.Independent temperature control system with accurate control; sealing is beautiful and smooth;
5.Film pulling system and color mark control can be adjusted via touch screen; easy deviation correction and incision deviation correction; recipes can be stored for quick product changeover;
6.4–12 lanes packing according to bag width; can connect with dosing line and automatic cartoning machine to achieve packing & cartoning automation production line.
