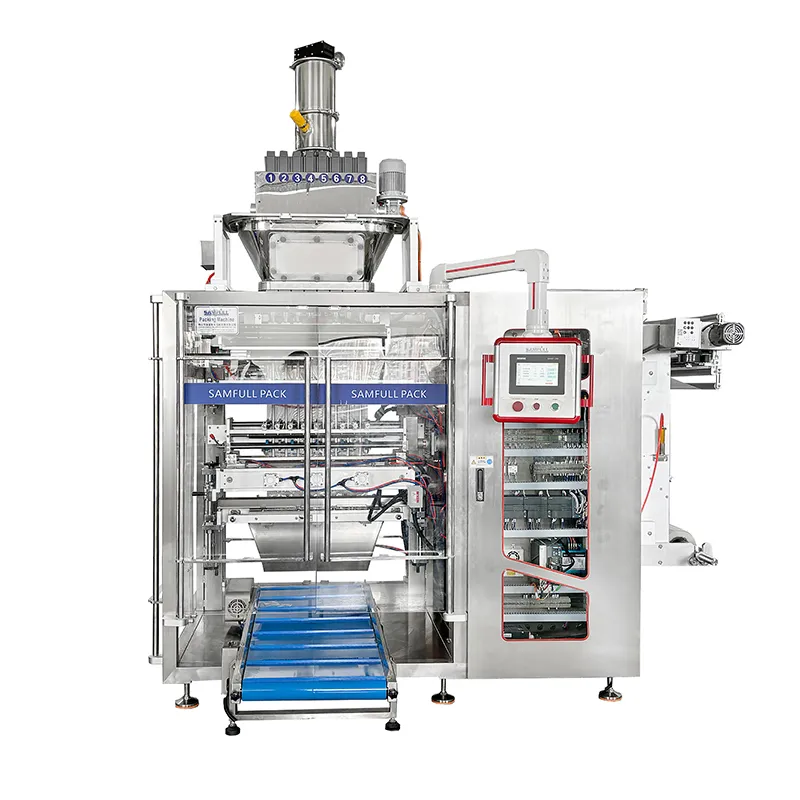

Multilane Powder Four Sides Sealing Sachets Packing Machine

Technical details

Item	SF2.0F	SF3.0F	SF4.0F
Track Number	4–10 (Track)	4–12 (Track)
Filling Method	Auger filler by servo motor
Capacity	30–45 cuts/min (According to the material condition)
Film Width & Thickness	Max: 720mm, 0.06–0.1mm	Max: 960mm, 0.06–0.1mm	Max: 1200mm, 0.06–0.1mm
Sachet Size	L: 45–140mm W: 35–120mm (Customized bag length)
Sealing Type	Four sides sealing
Cutting Type	Flatten cutting / Zig zag cutting / Continuous cutting
Air Consumption & Voltage	0.8MPa, 0.8m³/4.5kW	0.8MPa, 0.8m³/5.5kW	0.8MPa, 0.8m³/6.5kW
Power	AC380V Three phase, AC220V Single phase, 50–60Hz
Dimension & Total Weight	L1500×W1500×H2850mm, 1100kg	L2300×W1500×H2700mm, 1200kg	L2200×W1600×H2600mm, 1500kg

Inquire Now

APPLICATIONS

Suitable for powder: milk powder, flour, seasoning powder, medicine powder, protein powder,etc.

PACKAGING

BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1.The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;

2.The electrical components are imported famous brands, stable and efficient, with low failure rate;

3.Equipped with safety protection, in line with enterprise safety management requirements;

4.Independent temperature control system is adopted, and the temperature control is accurate; the sealing is beautiful and smooth;

5.Siemens PLC control, touch screen control, automatic control capability of the whole machine, high reliability and intelligence, high speed and high efficiency;

6.Independent servo motor metering, servo motor pull film, film pull system and eyemark system can be automatically adjusted through touch screen, automatic correction system of roll film system, automatic storage of multiple products formulas, replacement of products can be used at any time without adjustment, no adjustment is required.
