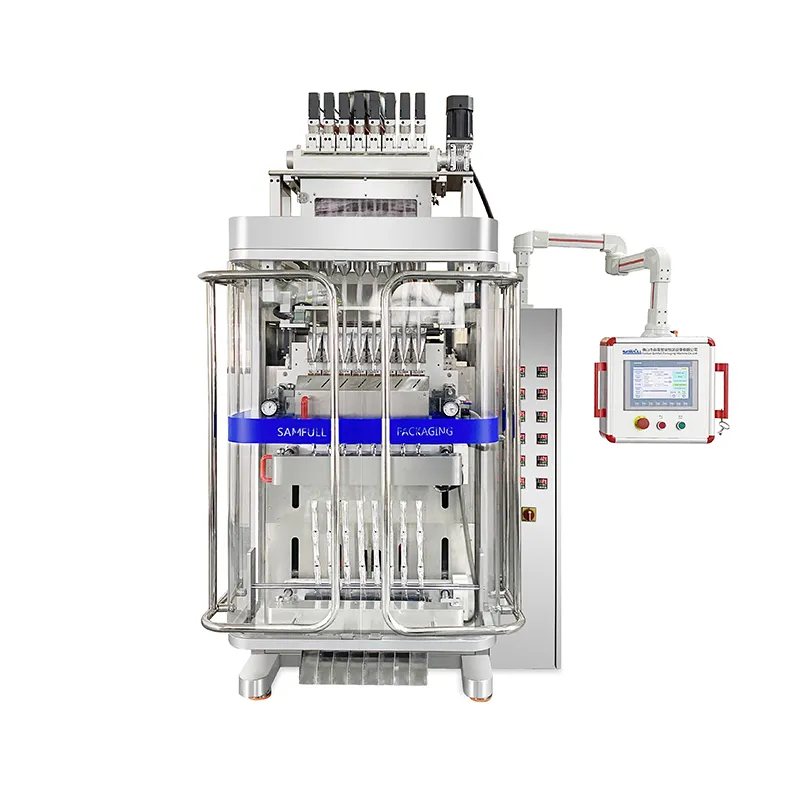

Multilane Powder Back Sealing Sachet Packing Machine

Technical details

SF2.0S / SF3.0S / SF4.0S Technical Parameters

Item	SF2.0S	SF3.0S	SF4.0S
Track Number	4-10 (Track)	4-12 (Track)	4-12 (Track)
Filling Method	Auger filler by servo motor
Capacity	30-45 cut/min (According to the material condition)
Film Width & Thickness	Max: 520 mm, 0.06-0.1 mm	Max: 720 mm, 0.06-0.1 mm	Max: 820 mm, 0.06-0.1 mm
Sachet Size	L: 45-160 mm / W: 17-80 mm (Customized bag length)
Sealing Type	Back sealing / Stick bag
Cutting Type	Flatten cutting / Zig zag cutting / Round cutting
Air Consumption & Voltage	0.8 MPa, 0.8 m³ / 4.5 kW	0.8 MPa, 0.8 m³ / 5.5 kW	0.8 MPa, 0.8 m³ / 6.5 kW
Power	AC380V Three phase, AC220V Single phase, 50-60Hz
Dimension & Total Weight	L1400×W2000×H2800 mm, 1100 kg	L1500×W2000×H2800 mm, 1200 kg	L1600×W2100×H2800 mm, 1300 kg

Inquire Now

APPLICATIONS

Suitable for powder products: milk powder, flour, seasoning powder, medicine powder, protein powder, etc.

PACKAGING

BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1.The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;

2.Equipment with safety protection, in line with enterprise safety management requirements;

3.Imported-brand electrical components; Siemens PLC + touch screen control, high reliability and intelligence, high speed and high efficiency;

4.Independent temperature control system with accurate control; sealing is beautiful and smooth;

5.Film pulling system and color mark control can be adjusted via touch screen; easy deviation correction and incision deviation correction; recipes can be stored for quick product changeover;

6.4–12 lanes packing according to bag width; can connect with dosing line and automatic cartoning machine to achieve packing & cartoning automation production line.
