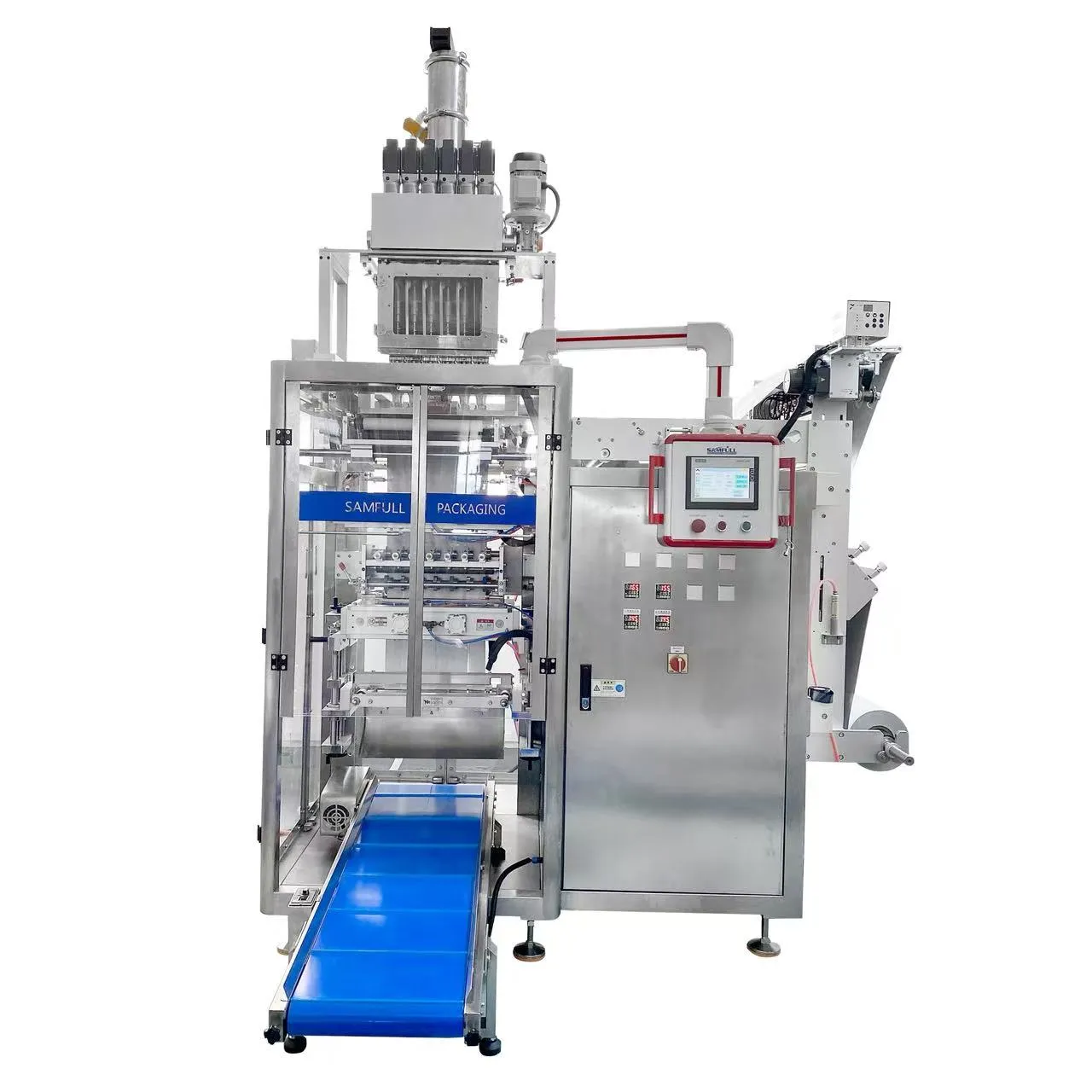

Multi-lane powder sachet packaging machine overall view

Laundry Detergent Powder Multi-Lane Packaging, Multi-Lane Powder Sachet Packing, Detergent Powder Sachet Packaging Equipment

Technical details

Item	SF2.0F	SF3.0F	SF4.0F
Track Number	4–10 (Track)	4–12 (Track)
Filling Method	Auger filler by servo motor
Capacity	30–45 cuts/min
Film Width & Thickness	720mm, 0.06–0.1mm	960mm, 0.06–0.1mm	1200mm, 0.06–0.1mm
Sachet Size	L: 45–140mm W: 35–120mm
Sealing Type	Four sides sealing
Cutting Type	Flatten cutting / Zig zag cutting / Continuous cutting
Air Consumption Voltage	0.8MPa, 0.8m³/4.5kW	0.8MPa, 0.8m³/5.5kW	0.8MPa, 0.8m³/6.5kW
Power	AC380V Three phase, AC220V Single phase, 50–60Hz
Dimension & Total Weight	L1500×W1500×H2850mm 1100kg	L2300×W1500×H2700mm 1200kg	L2200×W1600×H2600mm 1500kg

Inquire Now

APPLICATIONS

This multi-lane powder sachet packaging machine is designed for high-speed, simultaneous packaging of a wide range of powder products. In addition to laundry detergent powder, it is suitable for household cleaning powders, soap powder, bleaching powder, disinfectant powder, and other daily-use chemical powders.

The machine can also be applied to food-grade powders such as sugar, coffee powder, milk powder, seasoning powders, and beverage mixes, as well as industrial and chemical powders including additives, catalysts, and fine granules. With its multi-lane structure, the system produces multiple sachets in one cycle, significantly improving output efficiency for large-scale production.

Accurate powder dosing, stable film forming, and consistent sealing quality make it ideal for factories requiring continuous, automated, and high-volume sachet packaging. The machine supports back-seal sachet formats and can be integrated with downstream conveying, counting, or cartoning equipment to build a complete automatic packaging line.

Kindly Reminder

To help us recommend the most suitable multi-lane high-speed powder packaging solution, please kindly provide the following information when sending your inquiry:

Product type and powder characteristics (flowability, dust level, hygroscopicity)

Sachet or stick pack dimensions (length and width)

Filling weight per sachet

Packaging style (stick pack, pillow sachet, back seal, etc.)

Required production speed and output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;
The electrical components are imported famous brands, stable and efficient, with low failure rate;
Equipped with safety protection, in line with enterprise safety management requirements;
Independent temperature control system is adopted, and the temperature control is accurate; the sealing is beautiful and smooth;
Siemens PLC control, touch screen control, automatic control capability of the whole machine, high reliability and intelligence, high speed and high efficiency;
Independent servo motor metering, servo motor pull film, film pull system and eyemark system can be automatically adjusted through touch screen, automatic correction system of roll film system, automatic storage of multiple products formulas, replacement of products can be used at any time without adjustment, no adjustment is required.
