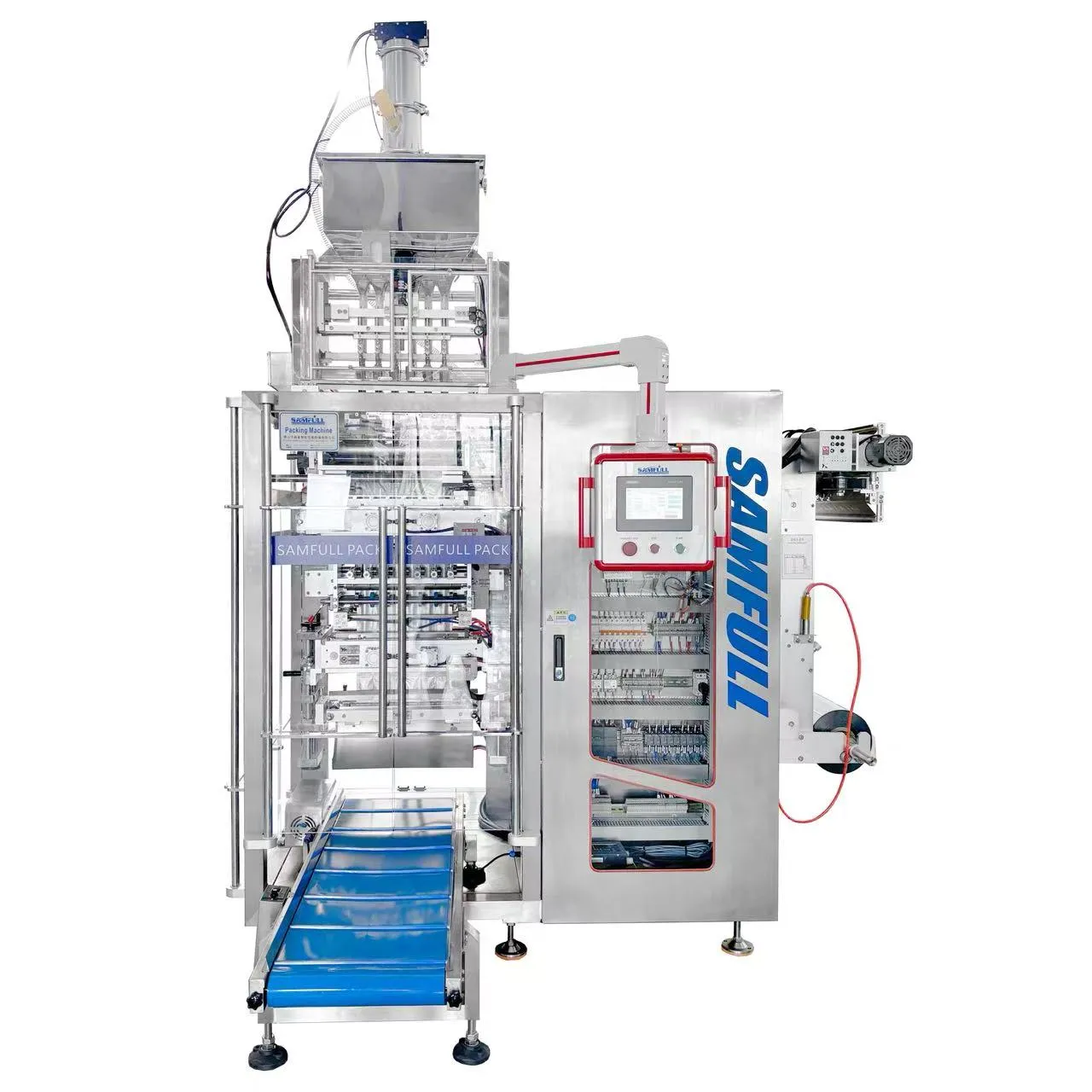

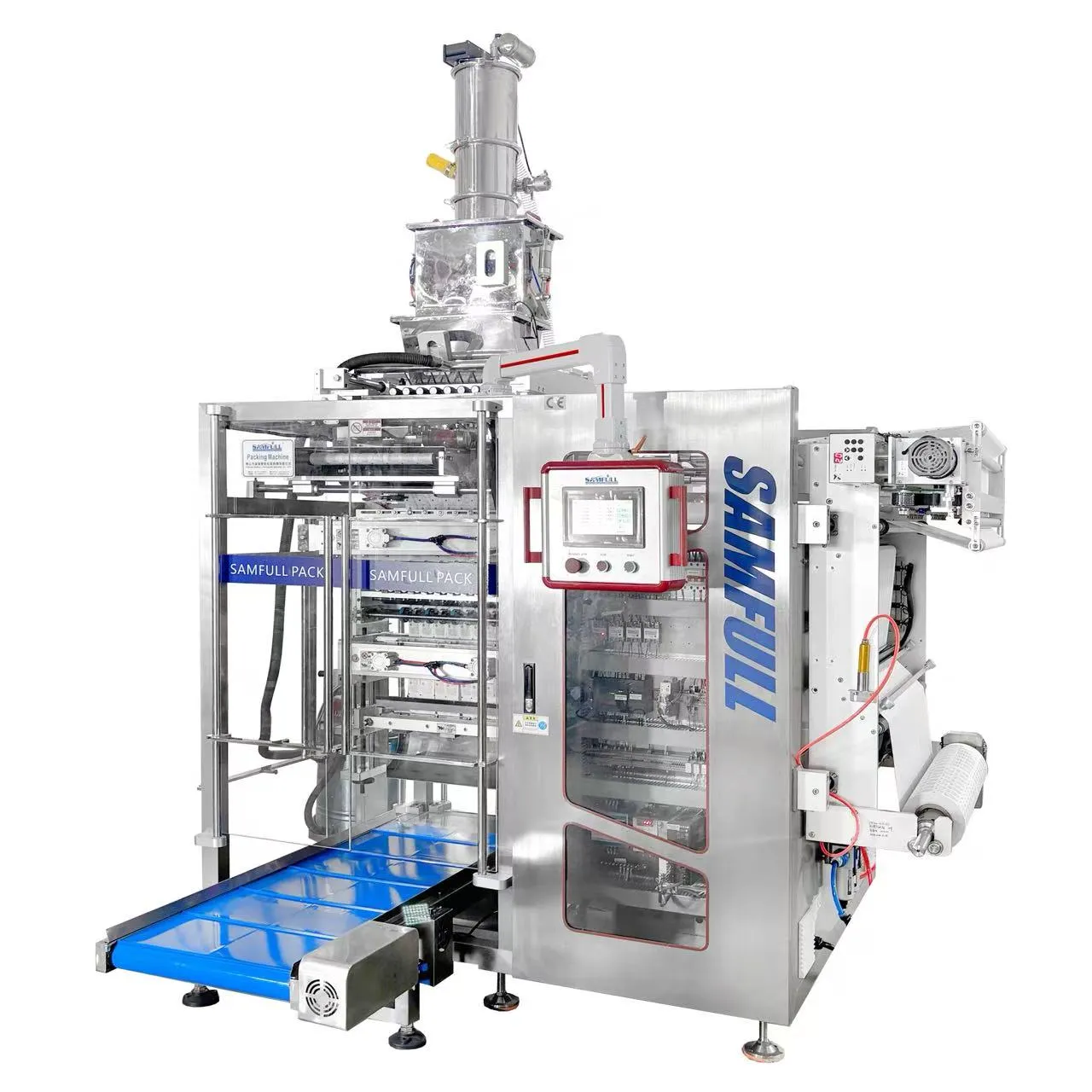

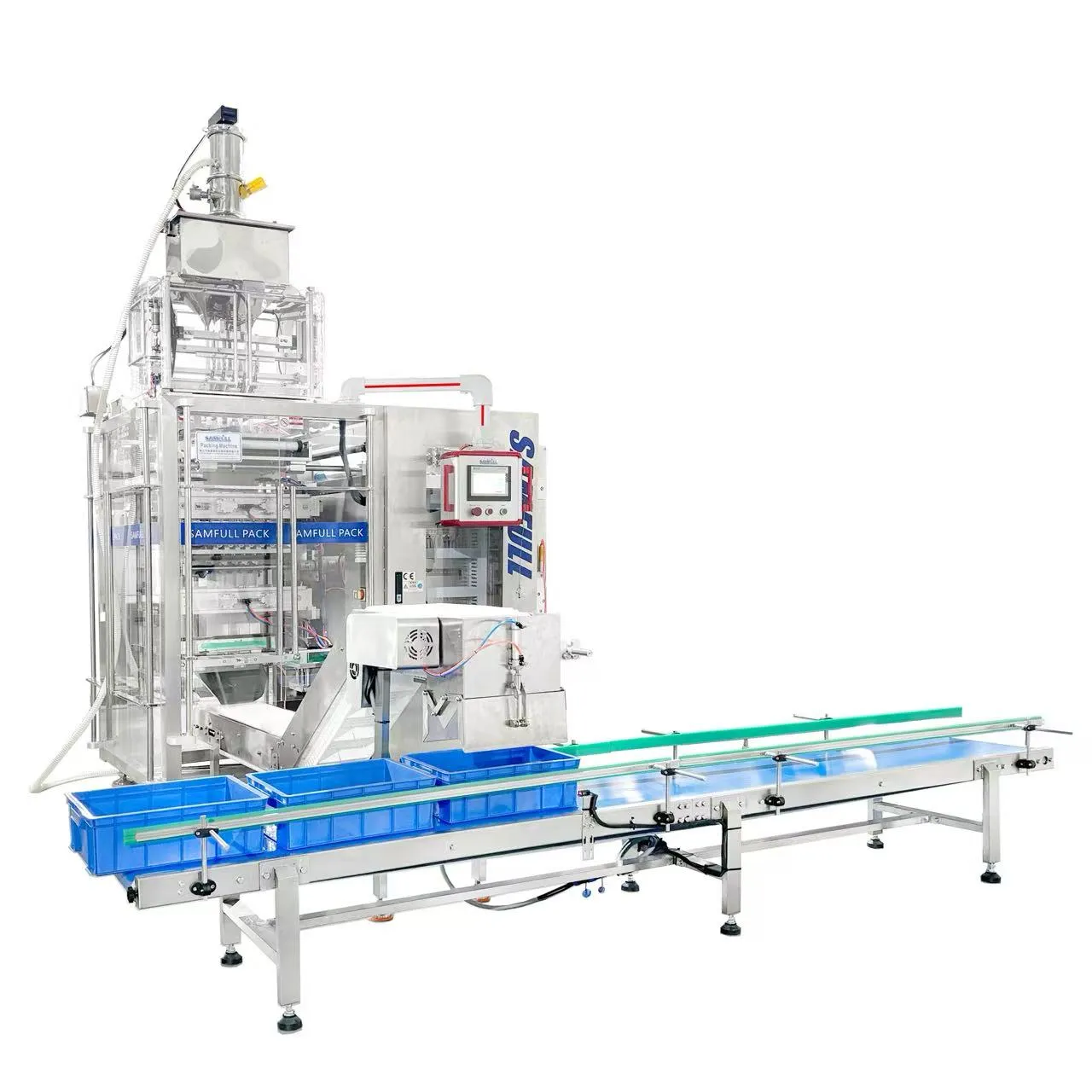

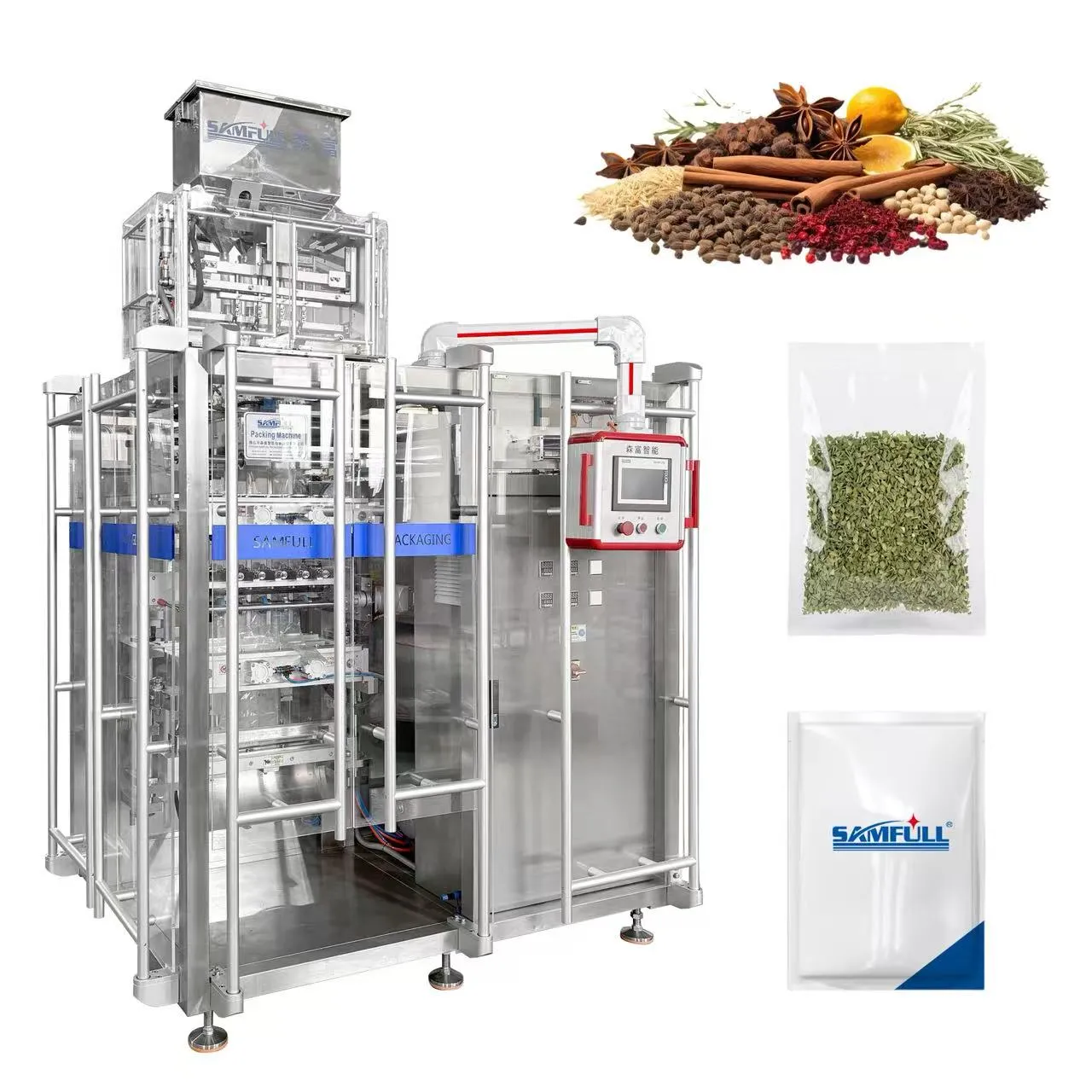

Multilane four side seal sachet packaging machine for spices flakes

Multilane Four Side Seal Sachets Spices Flakes Dried Scallion Packing Machine

Technical details

Model	SF2.0F	SF3.0F	SF4.0F
Track Number	4–10 Track	4–12 Track
Filling Method	Volumetric cup
Capacity	30–45 Cut/min
Film Width & Thickness	Max: 720m m0.06–0.1mm	Max: 960mm 0.06–0.1mm	Max: 1200mm 0.06–0.1mm
Sachet Size	L: 45–140mm W: 35–120mm	L: 45–140mm W: 35–120mm	L: 45–140mm W: 35–120mm
Sealing Type	Four sides sealing
Cutting Type	Flatten / Zig zag / Continuous
Dimension & Total Weight	L1900 W1500 H2600mm 1000kg	L2100 W1500 H2600mm 1100kg	L2200 W1600 H2600mm 1200kg

Inquire Now

APPLICATIONS

This multilane four side seal sachet packaging machine is designed for automatic packaging of lightweight flakes, small granules, and irregular seasoning materials. In addition to dried scallion flakes, it is widely used for spice flakes, dried vegetable pieces, seasoning mixes, dehydrated garlic flakes, chili flakes, onion flakes, parsley flakes, and other dried herb products.

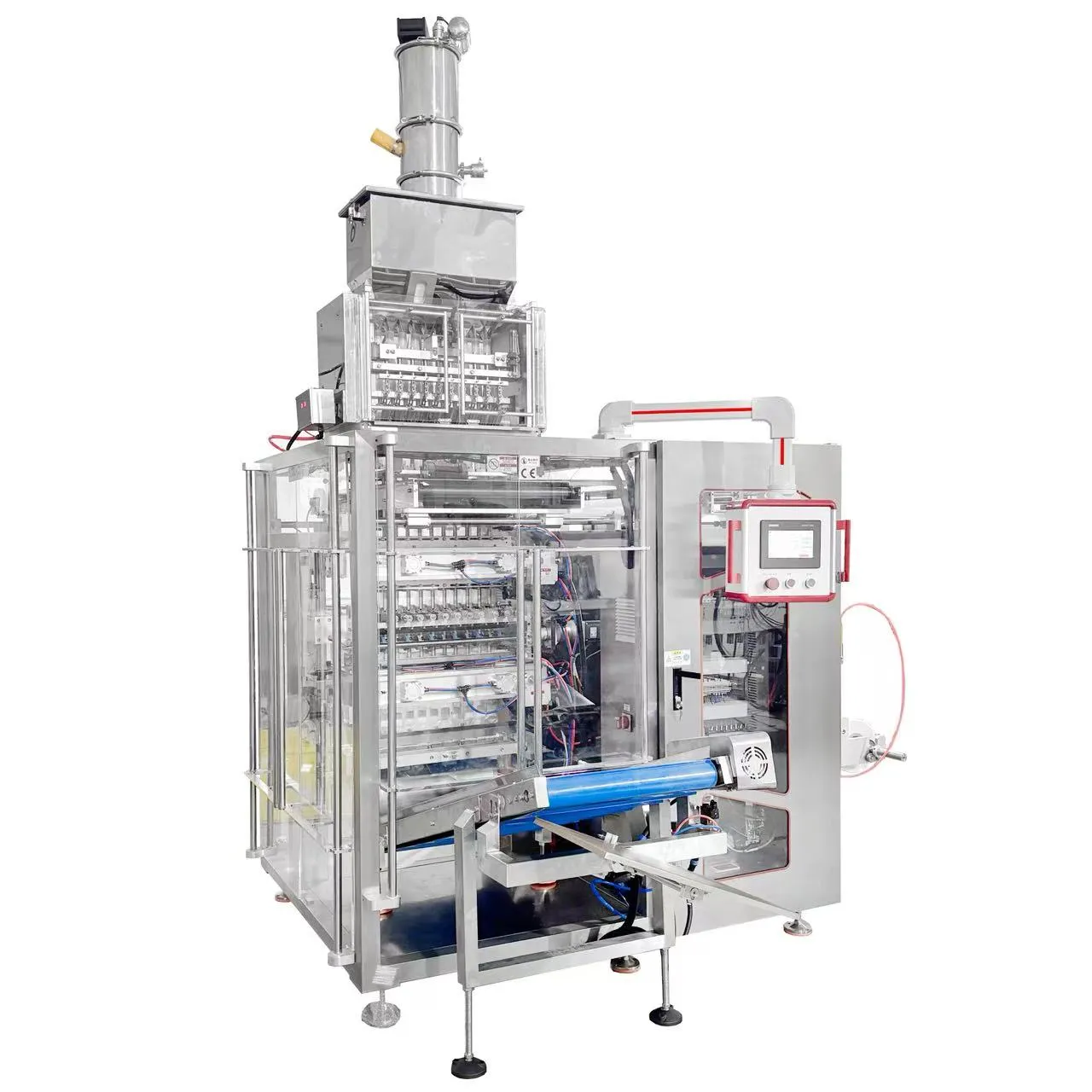

The multi-lane structure allows simultaneous filling and sealing of multiple sachets, significantly increasing production efficiency for high-volume food packaging operations. The system ensures accurate dosing, stable film forming, and consistent four side sealing quality.

It is widely used in food processing plants, seasoning factories, dehydrated vegetable processing facilities, and condiment packaging lines where continuous and efficient sachet production is required.

Kindly Reminder

To help us recommend the most suitable multi-lane high-speed powder packaging solution, please kindly provide the following information when sending your inquiry:

Product type and powder characteristics (flowability, dust level, hygroscopicity)

Sachet or stick pack dimensions (length and width)

Filling weight per sachet

Packaging style (stick pack, pillow sachet, back seal, etc.)

Required production speed and output capacity

PACKAGING

Applicable Packaging Film: BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;
The electrical components are imported famous brands, stable and efficient, with low failure rate;
Equipped with safety protection, in line with enterprise safety management requirements;
Independent temperature control system is adopted, and the temperature control is accurate; the sealing is beautiful and smooth;
Siemens PLC control, touch screen control, automatic control capability of the whole machine, high reliability and intelligence, high speed and high efficiency;
Independent servo motor metering, servo motor pull film, film pull system and eyemark system can be automatically adjusted through touch screen, automatic correction system of roll film system, automatic storage of multiple products formulas, replacement of products can be used at any time without adjustment, no adjustment is required.
