Multi-lane irregular shaped sachet packaging machine overview

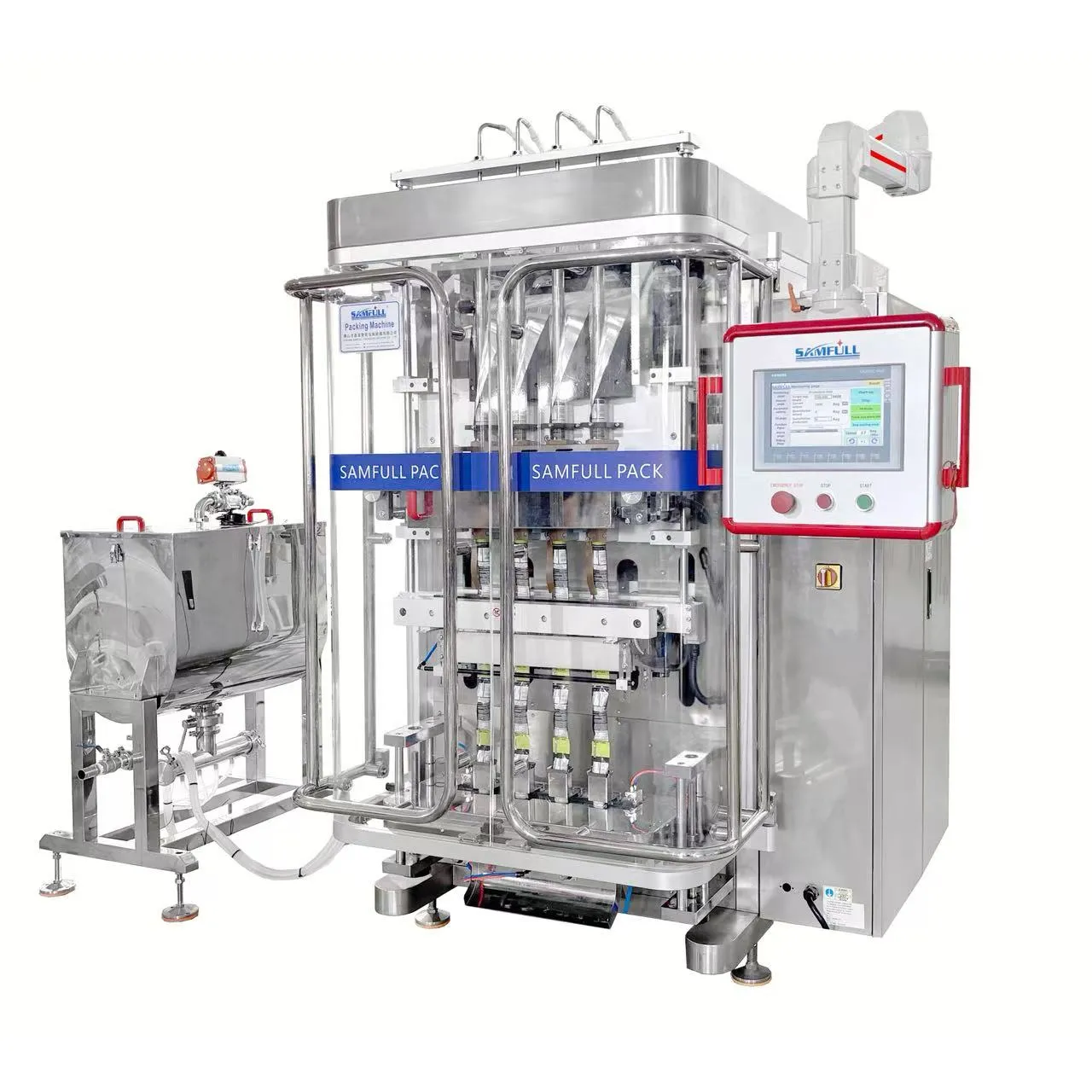

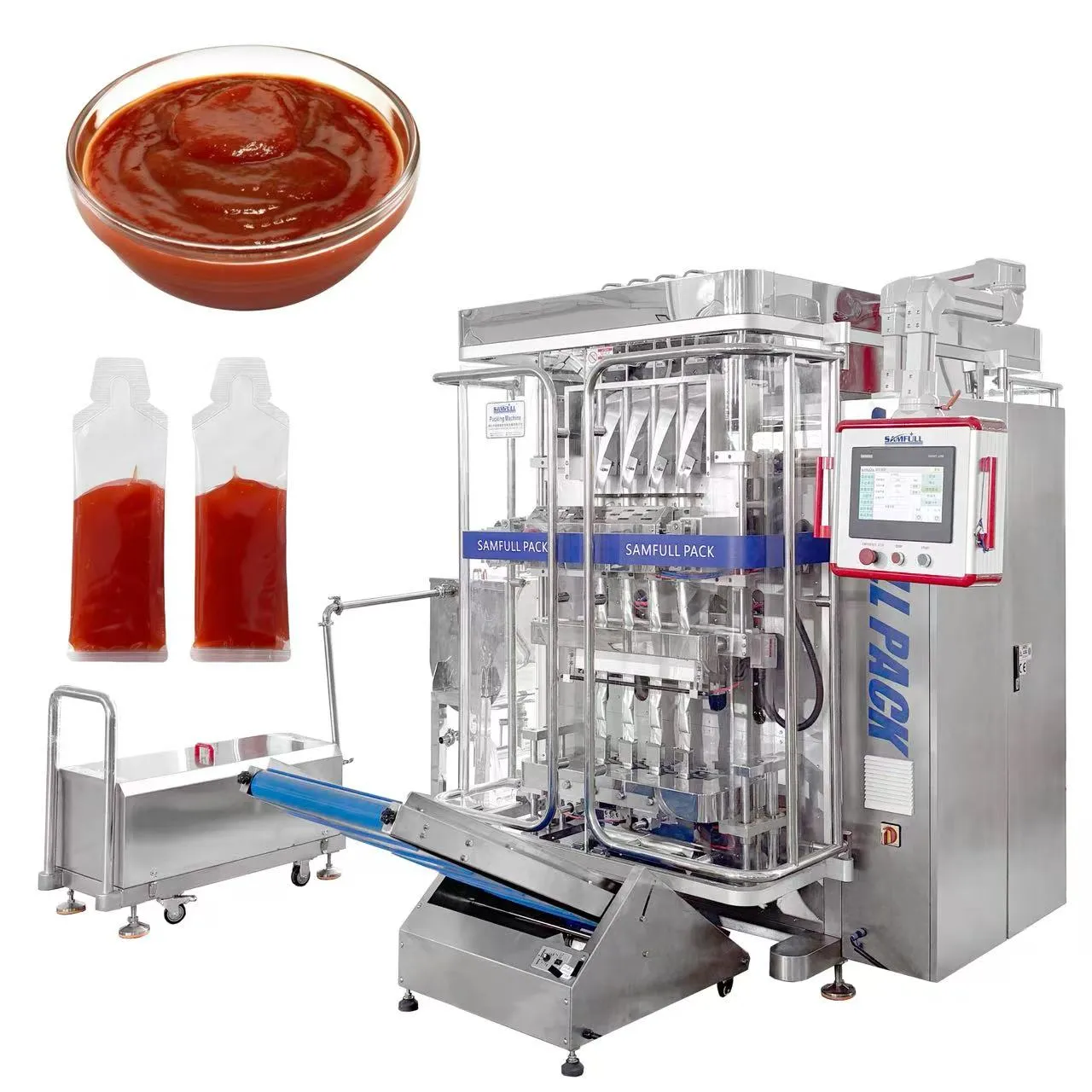

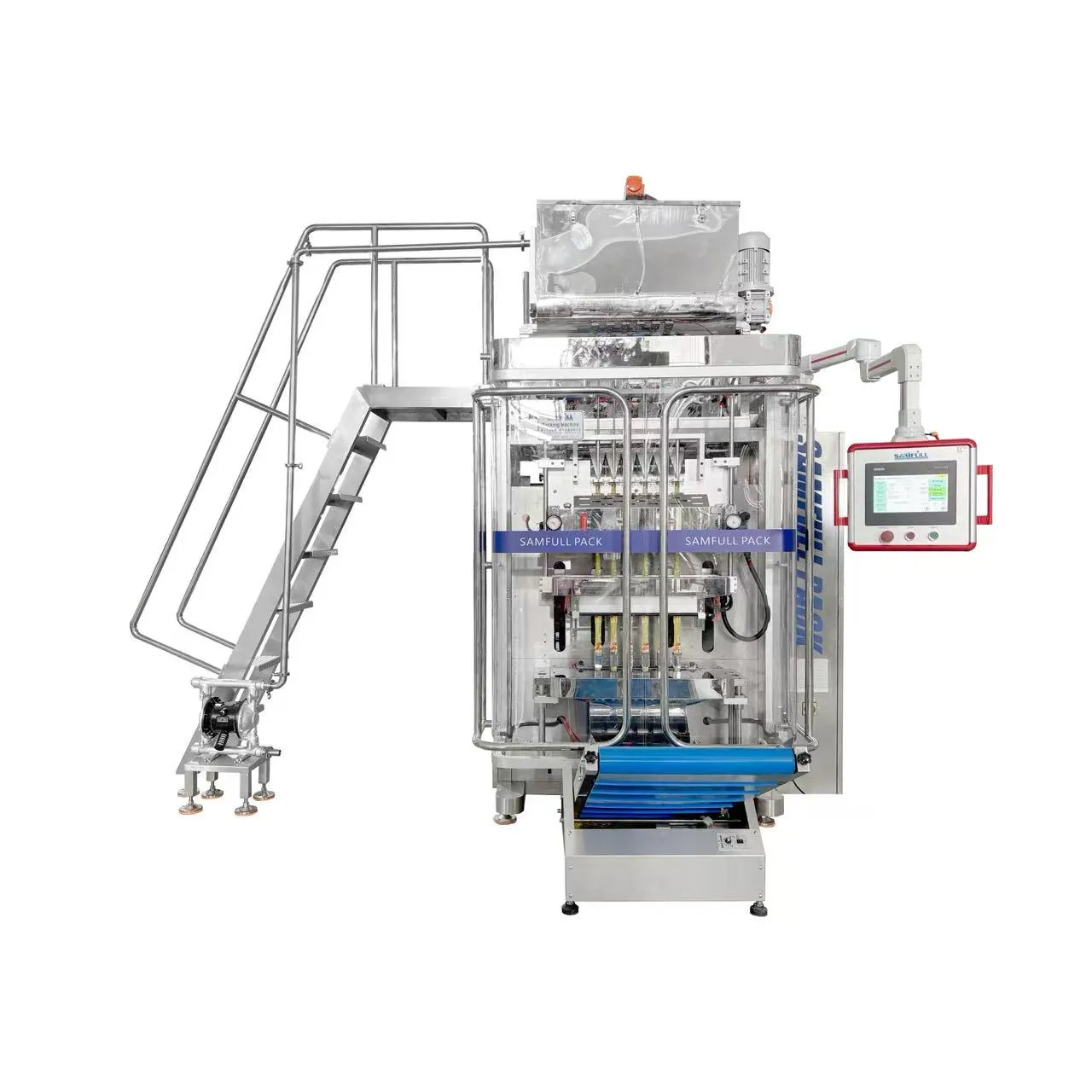

Multi-Lane (4-8 Tracks) Packaging Machine for Tomato Ketchup Small Irregular Shaped Sachets

Technical details

Main Machine Model	SF520 4-lane special-shaped back-sealed side-seal packaging machine
Frame Material	Main body: 304	Main Machine System	Siemens system
Packaging Material	Sports gel \| Ketchup	Dosing Method	Servo ceramic pump
Product Weight	10–60g	Speed Requirement	30–35 bags/min/line
Pass Rate	0.3%	Pouch Size	50mm,150mm ;180mm
Total Film Width	428mm (according to roll design drawing)	Packaging Material	Composite film
Cutter/Knife Pattern	Flat cut, striped	Date Printing	UV laser coding
Feeding Pump	Rotor pump	Voltage/Frequency	3-phase 220V 50Hz

Inquire Now

APPLICATIONS

This multi-lane packaging machine is designed for automatic filling and sealing of liquid and semi-liquid products in small irregular shaped sachets. In addition to tomato ketchup, it is suitable for a wide range of products such as chili sauce, soy sauce, salad dressing, honey, syrup, fruit jam, chocolate sauce, and other condiment or sweet spreads.

The system supports low to medium viscosity liquids, ensuring accurate dosing and stable sealing even for sticky or sugar-based products. The irregular sachet forming system allows customized shapes, making the final packaging more attractive and suitable for retail and single-serving applications.

With 4–8 track simultaneous production, the machine significantly improves output efficiency while maintaining consistent pouch quality. It is widely used in food processing plants, sauce production lines, and single-serve packaging applications where differentiation and high-speed production are required.

Kindly Reminder

Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.

1. Product type and characteristics

2. Bag dimensions (length and width)

3. Filling weight per sachet

4. Bag style

5. Required output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1.The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;

2.Equipment with safety protection, in line with enterprise safety management requirements;

3.Imported-brand electrical components; Siemens PLC + touch screen control, high reliability and intelligence, high speed and high efficiency;

4.Independent temperature control system with accurate control; sealing is beautiful and smooth;

5.Film pulling system and color mark control can be adjusted via touch screen; easy deviation correction and incision deviation correction; recipes can be stored for quick product changeover;

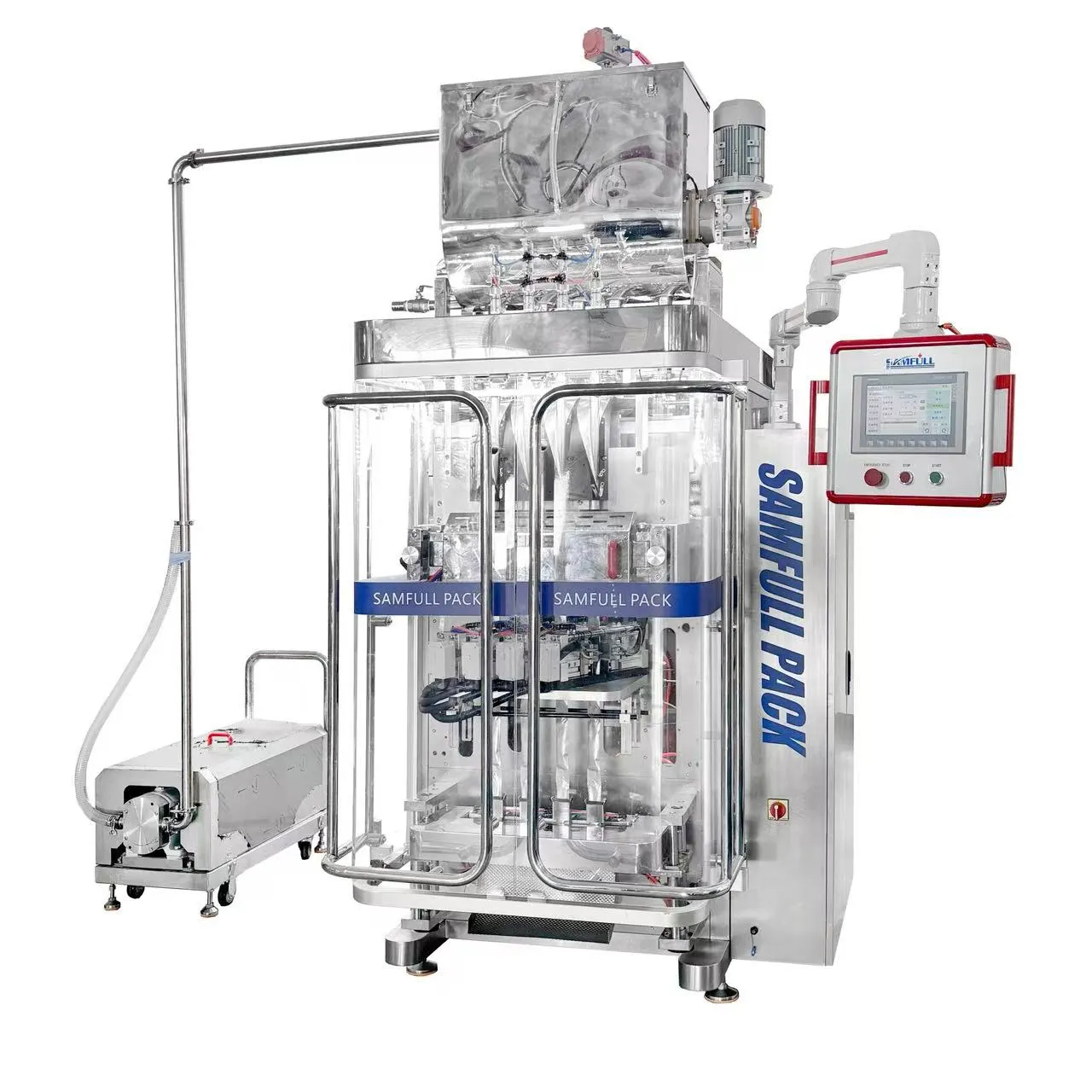

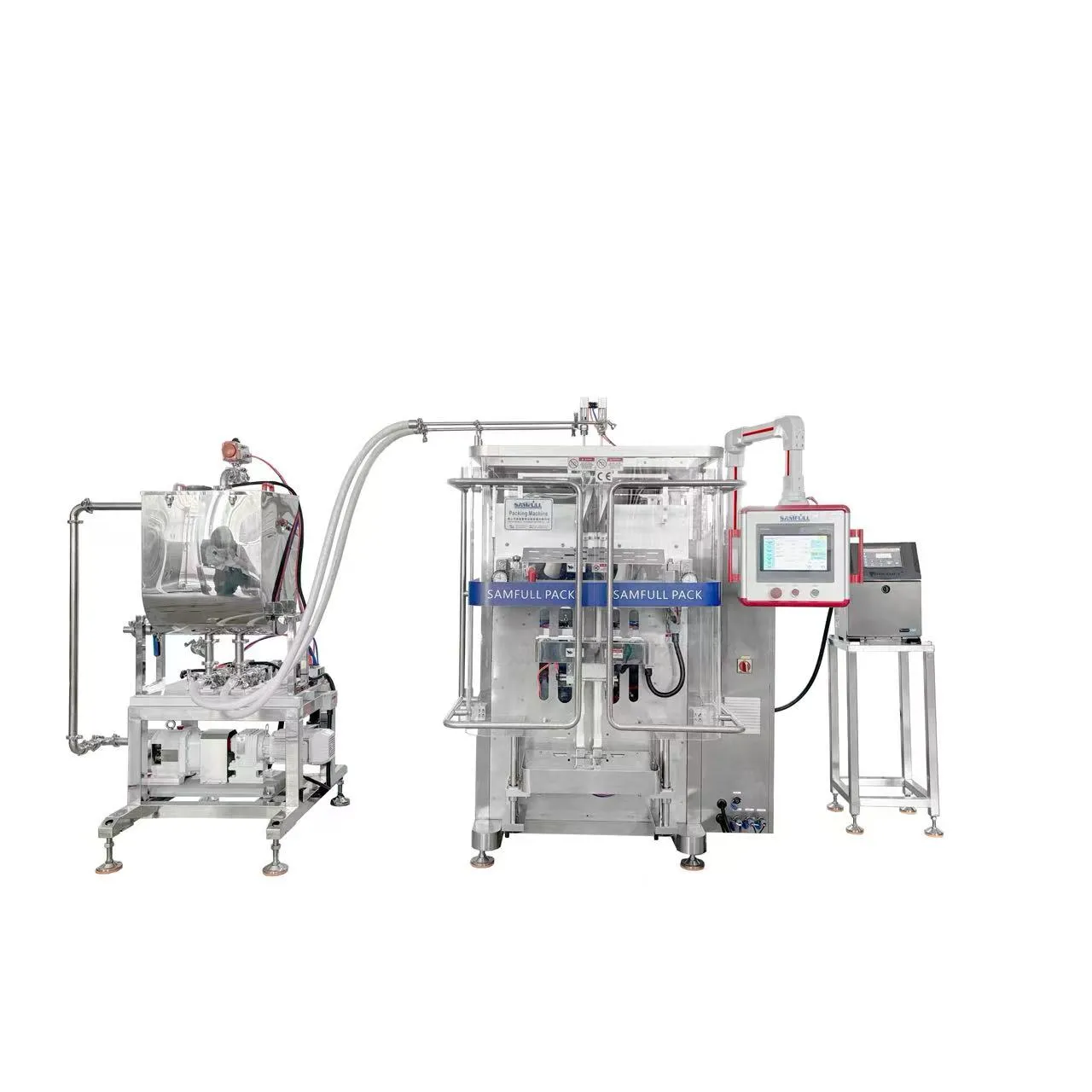

6.Single lanes packing; for liquid products, which can be integrated with liquid dosing systems and downstream equipment such as automatic cartoning machines to form a fully automatic liquid packaging and cartoning production line.
