Multi-lane Packaging Machine

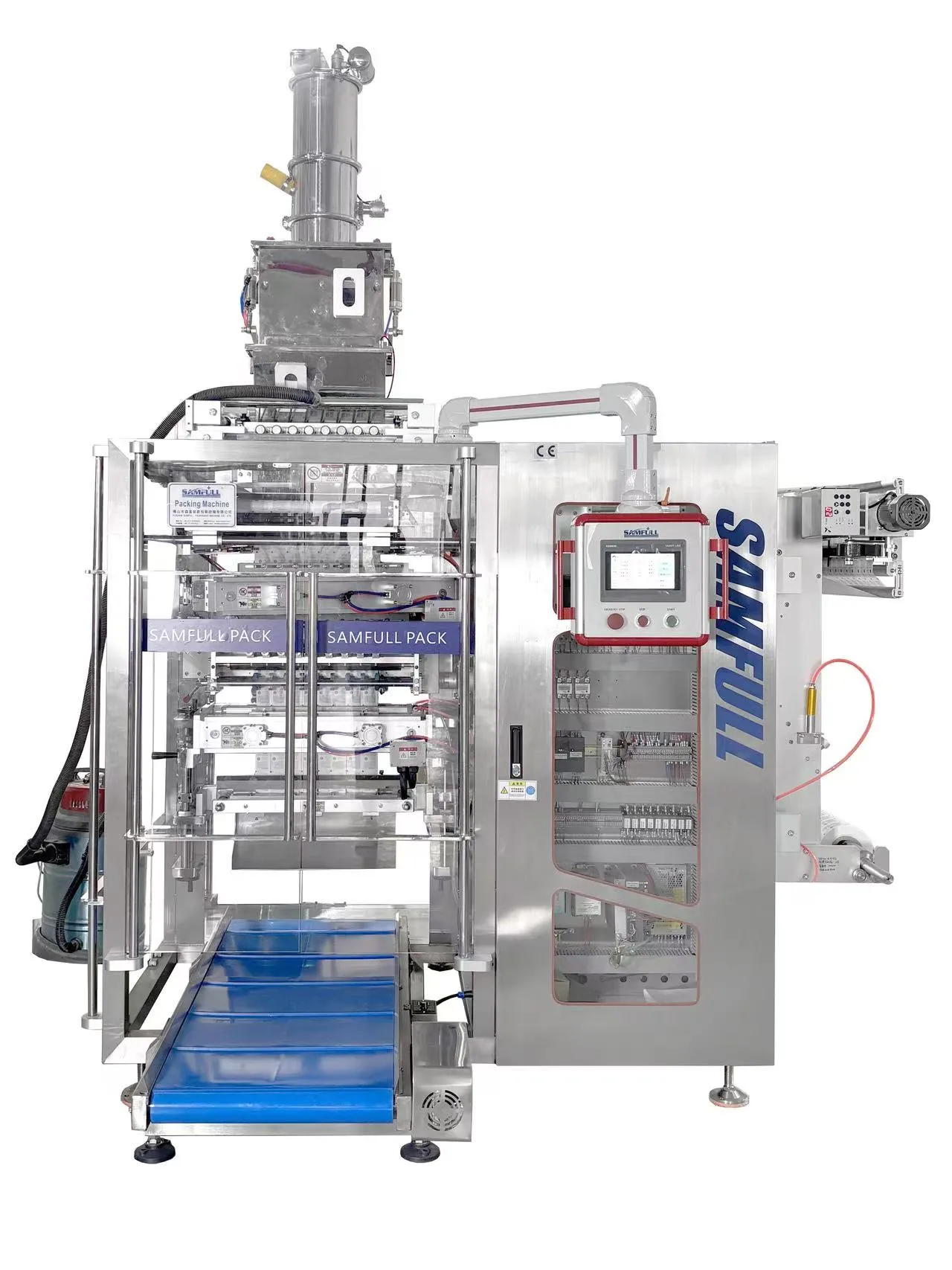

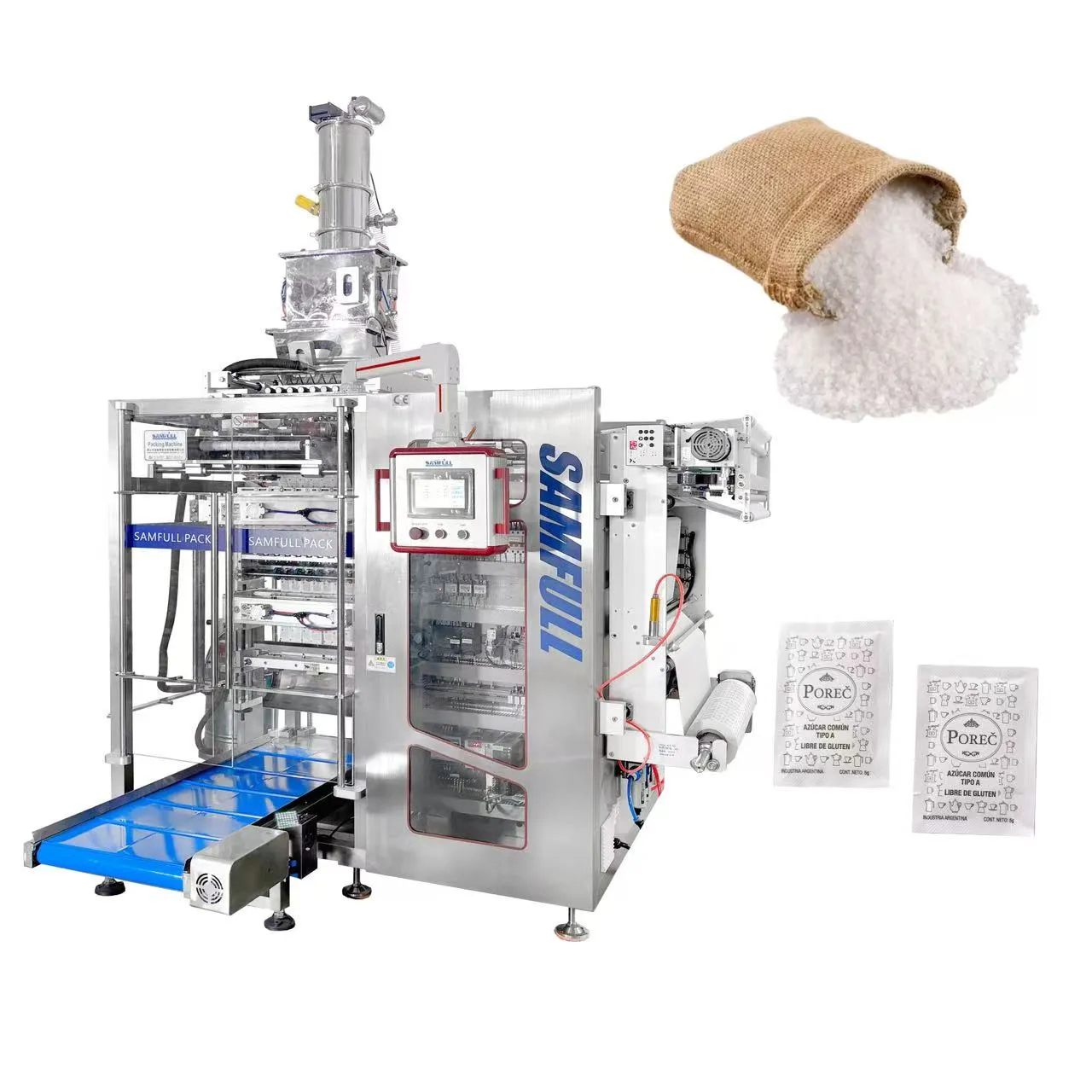

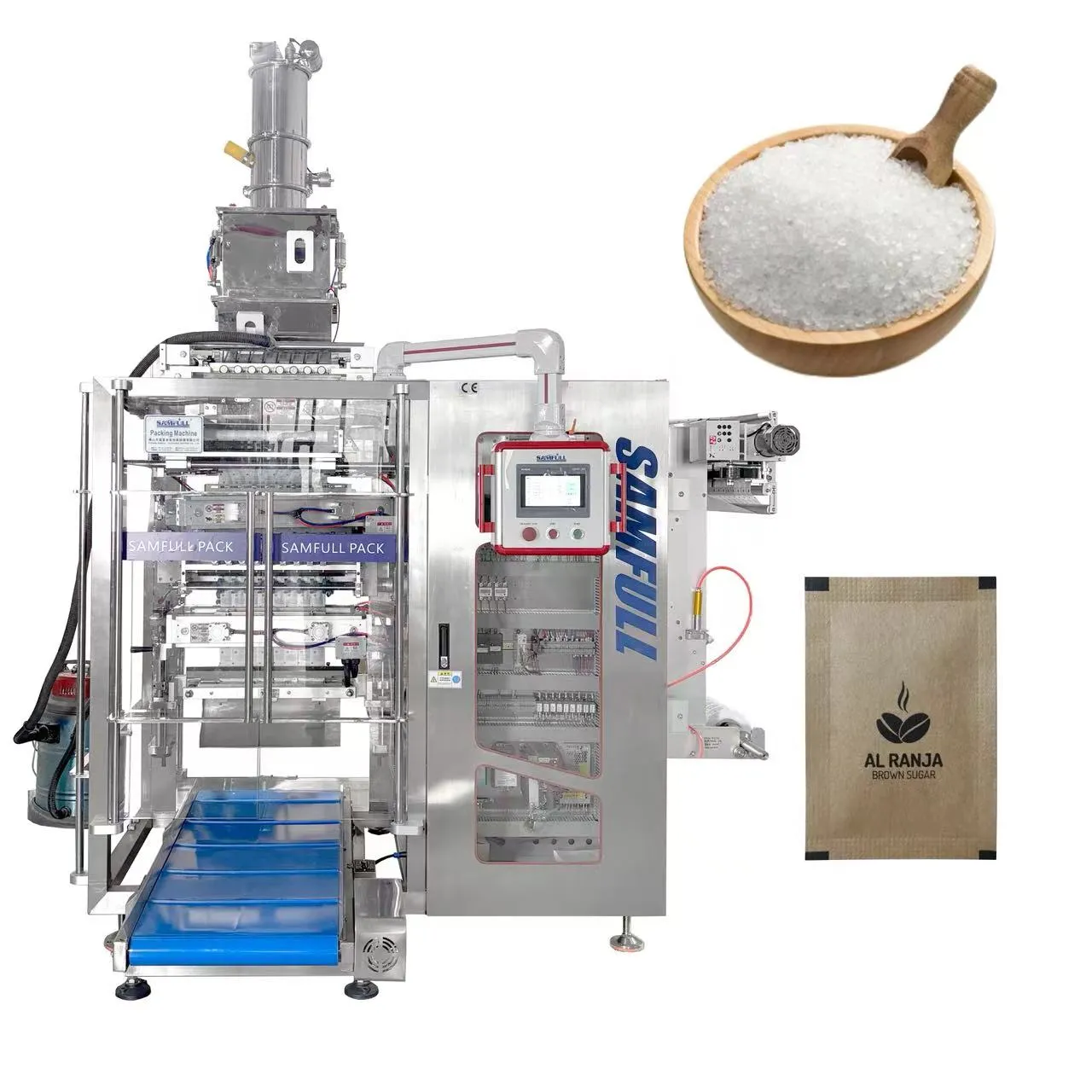

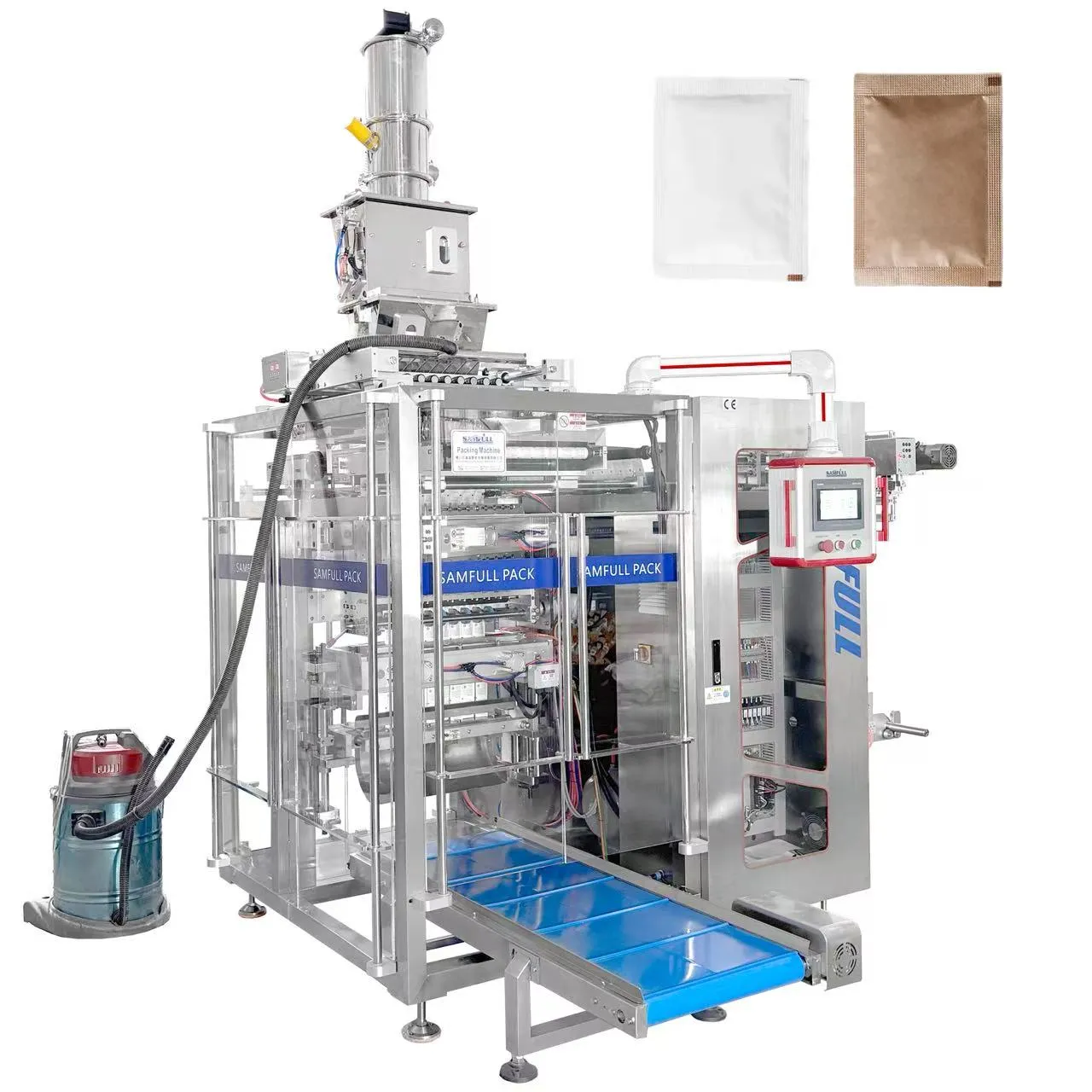

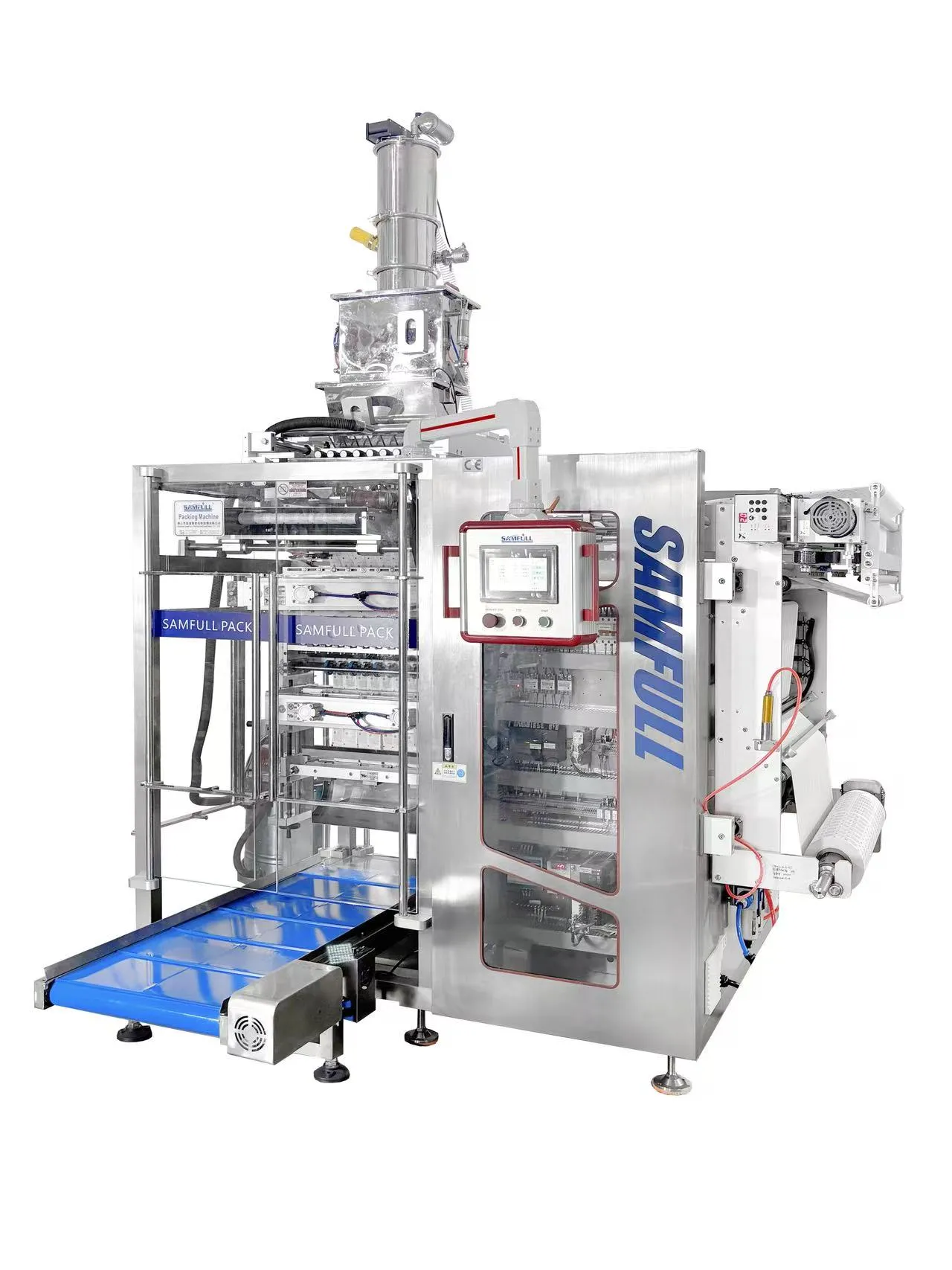

Automatic Multilane Four-Side Seal Packaging Machine for Sugar, Salt, and Seasoning Sachets

Technical details

Technical Specs

Model            SF-960 (10-Lane)
Sealing Type            4-Side Seal (Multilane)
Target Product            Salt / Granules
Dosing Method            Volumetric Cups
Packing Speed            35 - 45 bags/min
Weight Per Bag            1g (Customizable)
Max Film Width            700 mm
Control System            Siemens PLC
Power Supply
3-Phase, 415V, 50Hz
Structure Material
SS304 Main Frame
(Contact Parts: Food-Grade SS316)
Single Pouch Size
W: 35mm × L: 35mm
Applicable Film
Paper Film / Laminates (50-70 mic)
Share:

APPLICATIONS

This automatic multilane four-side seal packaging machine is engineered for high-speed packaging of sugar, salt, seasoning powder, spice powder, coffee powder, instant beverage powder, and other free-flowing powder or fine granular products. It is widely used for single-serve sachet packaging across the food, beverage, and condiment industries.

■ High-Capacity Multi-Lane Productivity

The integrated multi-lane structure enables multiple sachets to be produced simultaneously, significantly increasing overall production capacity compared to traditional single-lane machinery. Combined with precise dosing systems and stable sealing technology, the machine consistently ensures high filling accuracy, an attractive sachet appearance, and reliable package integrity.

■ Professional Four-Side Seal Format

The premium four-side seal sachet format provides excellent sealing strength, superior moisture resistance, and convenient portion control. This makes it an ideal fit for an array of demanding global sectors:

Fast-paced Retail & Supermarket Display

Commercial Catering & Food Services

High-End Hotel Amenities & Airline Meal Kits

* Note: Depending on your specific product requirements, the machinery can be flexibly configured for different sachet dimensions and precise filling volumes.

■ Intelligent Control & Targeted Facilities

Equipped with intelligent PLC control systems, stable continuous operation, and industry-leading automation levels, this high-performance packaging solution is widely utilized in large-scale seasoning factories, professional sugar packaging plants, salt processing facilities, coffee production lines, and heavy-duty sachet manufacturing operations globally


PACKAGING

⚙️ System Integration Details

——————

Continuous & Stable Running            Tight & Clean Sealing            Food-Grade Hygiene

The following illustration details the synchronized operation of our advanced multi-lane packing system. Every component is meticulously engineered to ensure stable film pulling, accurate dosing, and airtight 4-side sealing at industrial high speeds.

ChatGPT Image 2026年5月20日 11_41_09.png

FUNCTIONAL FEATURES

Premium Material & Hygiene Standards    The equipment heavy-duty frame is fully constructed from premium 304 stainless steel, strictly aligning with food industry QS licensing requirements and global pharmaceutical GMP hygiene standards.

Renowned Brand Electrical Components    All core electrical components are imported from world-famous brands, ensuring exceptionally stable, smooth, and highly efficient operation with a remarkably low failure rate over extended lifespans.

Integrated Safety Protection    The machine is fully equipped with advanced mechanical and electrical safety protection doors and interlocks, tightly conforming to modern enterprise safety management and accident prevention requirements.

Independent Temperature Control    An intelligent, independent PID temperature control system is adopted to ensure pinpoint temperature tracking, delivering consistently beautiful, smooth, and airtight pouch sealing results.

Siemens PLC & Touch Screen Control    Driven by a high-end Siemens PLC and intuitive touch screen HMI, the machine boasts full automated control capabilities, supreme operational reliability, high processing intelligence, and high-efficiency output speeds.

Independent Servo Drives & Recipe Memory    Utilizing independent servo motors for both precise material metering and smooth film pulling. The film pulling and photoelectric eyemark system can be automatically tuned via the touch screen. It features an automatic roll film alignment correction system and supports automated formula recipe storage. When replacing production items, predefined settings can be reloaded instantly without complex manual adjustments.
