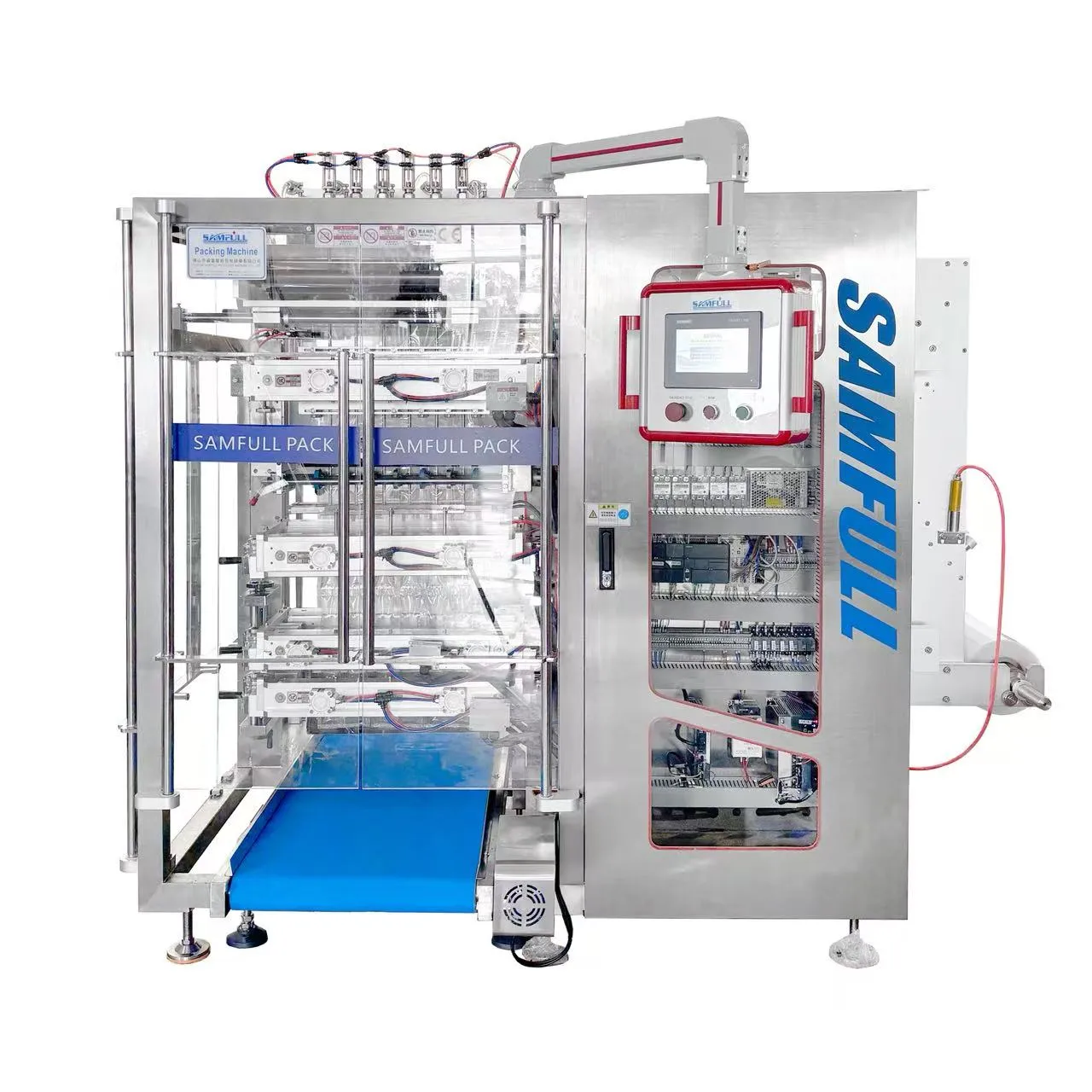

Multi-lane liquid sachet packaging machine overall view

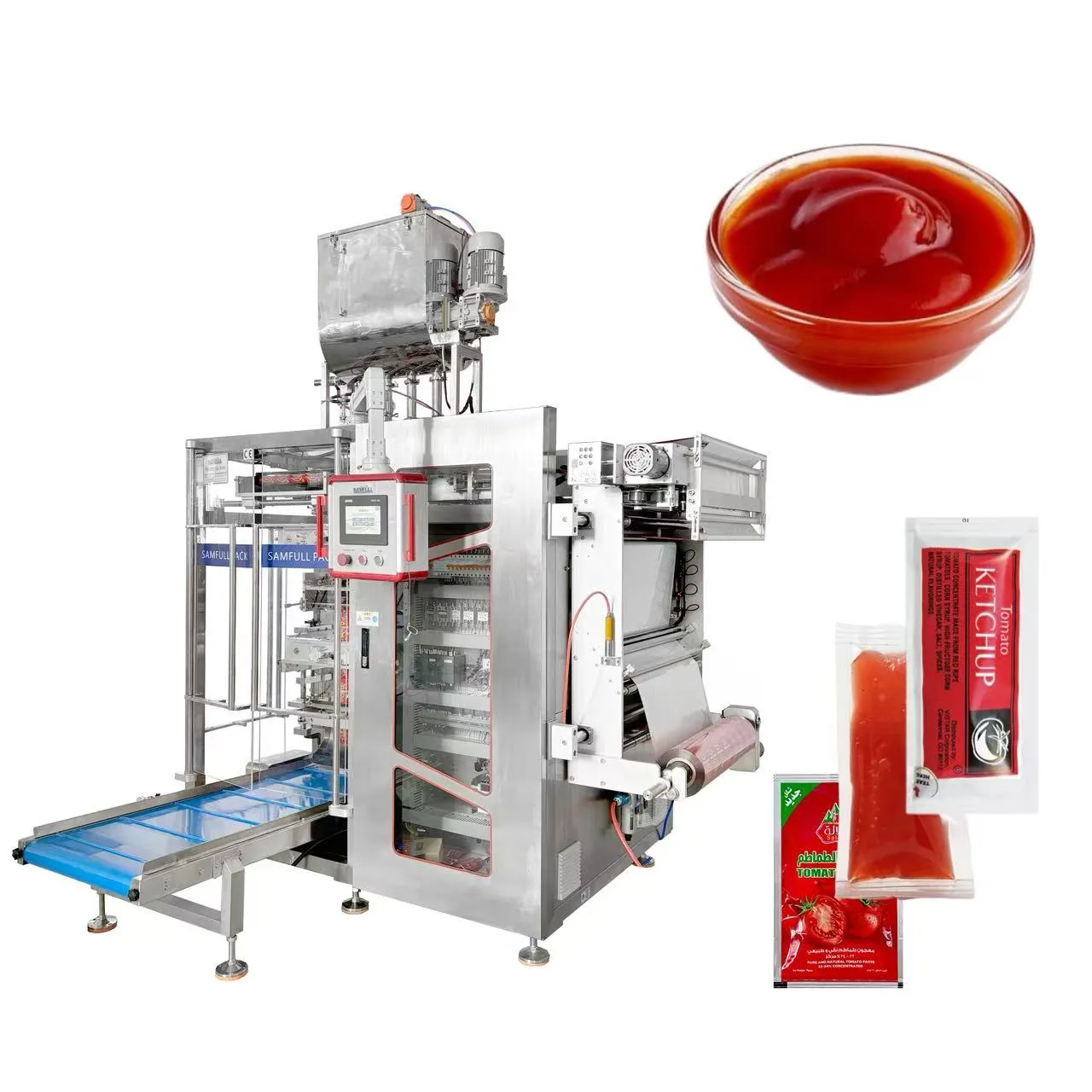

Tomato Ketchup Four Side Seal Multi-Lane Packaging, Sauce and Fruit Jam Sachet Filling and Sealing, Multi-Track Liquid and Paste Packing Solution

Technical details

Model	SF2.0F	SF3.0F	SF4.0F
Track Number	4–10 (Track)	4–12 (Track)	4–12 (Track)

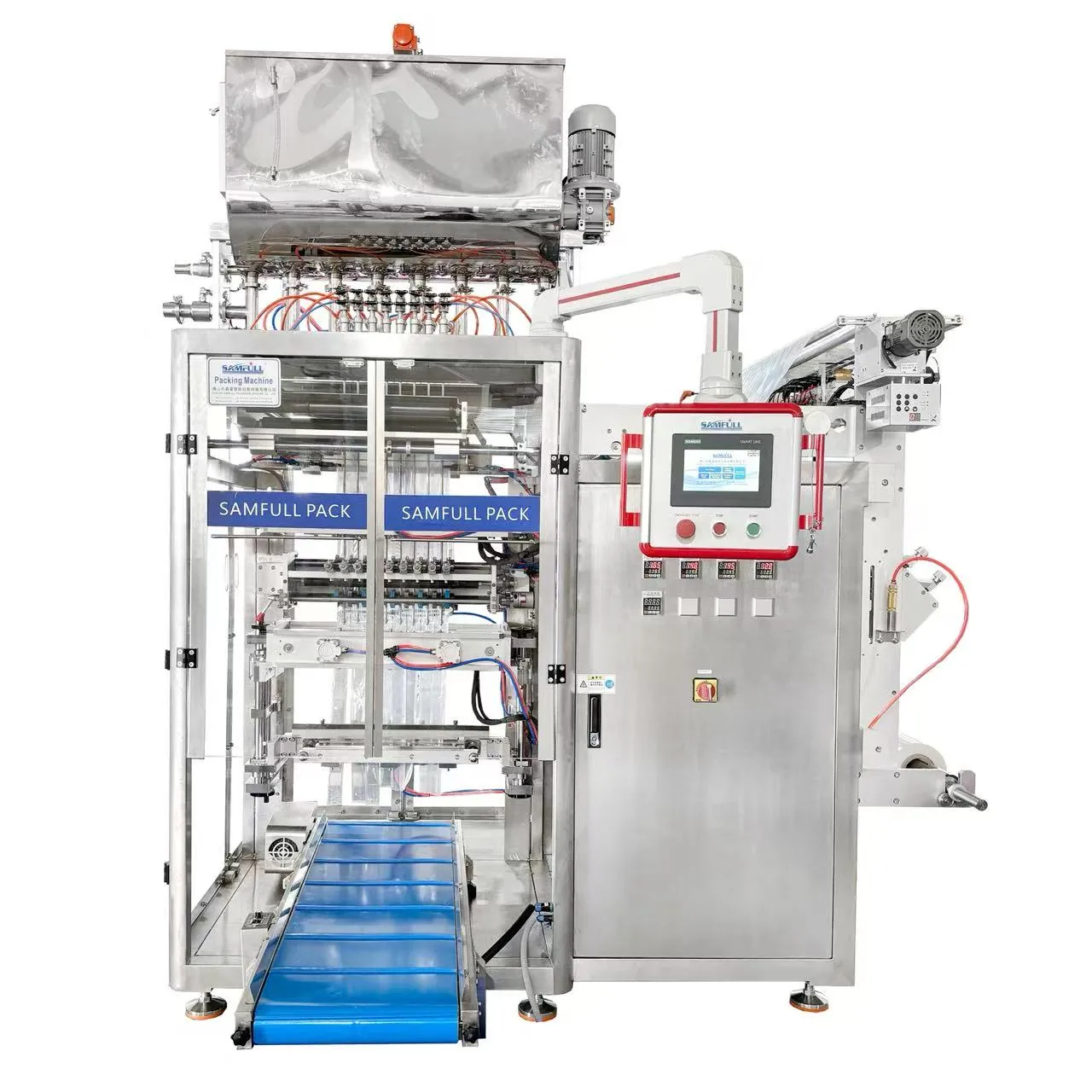

Filling Method	Peristaltic pump / Piston pump / Ceramic pump
Capacity	30–45 Cut/min (According to the material condition)
Film Width And Thickness	Max: 720mm, 0.06–0.1mm	Max: 960mm, 0.06–0.1mm	Max: 1200mm, 0.06–0.1mm
Sachet Size	L: 45–140mm W: 35–120mm (Customized bag length)

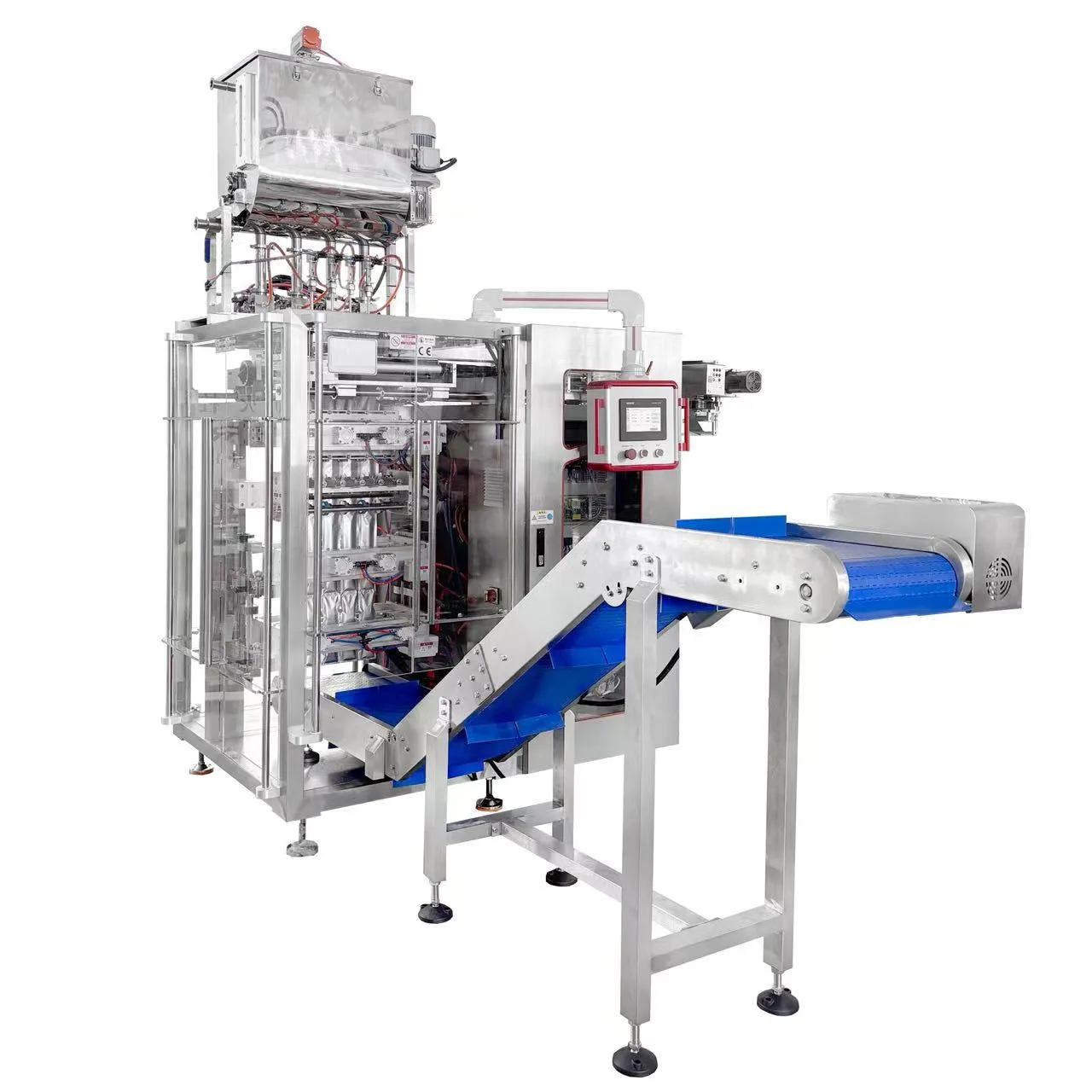

Sealing Type	Four sides sealing
Cutting Type	1. Flatten cutting 2. Zig zag cutting 3. Continuous cutting
Power	AC380V Three phase, AC220V Single phase, 50–60Hz
Dimension And Total Weight	L1900 x W1500 x H2600mm 1000kg	L2100 x W1500 x H2800mm 1200kg	L2200 x W1600 x H2800mm 1400kg

Inquire Now

APPLICATIONS

This multi-lane liquid and paste packaging machine is designed for high-speed four side seal sachet production of various liquid and semi-liquid products. In addition to tomato ketchup, it is suitable for chili sauce, soy sauce, salad dressing, mayonnaise, honey, fruit jam, chocolate sauce, syrup, cooking oil, and other food condiments.

The machine is also applicable to cosmetic and daily chemical products such as shampoo, lotion, cream, liquid soap, and gel products, as well as certain pharmaceutical or health-care liquids. With synchronized multi-track filling, it significantly increases production capacity while maintaining consistent dosing accuracy and sealing quality.

The system supports continuous automatic operation and can be integrated with upstream storage tanks and downstream counting or cartoning systems to build a complete multi-lane sachet packaging line.

Kindly Reminder

Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.

Product type and liquid characteristics
Bag dimensions (length and width)
Filling volume per sachet
Bag style (sachet or stick pack)
Required output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;
The electrical components are imported famous brands, stable and efficient, with low failure rate;
Equipped with safety protection, in line with enterprise safety management requirements;
Independent temperature control system is adopted, and the temperature control is accurate; the sealing is beautiful and smooth;
Siemens PLC control, touch screen control, automatic control capability of the whole machine, high reliability and intelligence, high speed and high efficiency;
Independent servo motor metering, servo motor pull film, film pull system and eyemark system can be automatically adjusted through touch screen, automatic correction system of roll film system, automatic storage of multiple products formulas, replacement of products can be used at any time without adjustment, no adjustment is required.
