liquid multilane stick pack packing machine overview

ORS Oral Saline Sugar Based Stick Pack Liquid Multilane Packing Machine for Electrolyte Sachets

Technical details

Item	SF2.0F	SF3.0F	SF4.0F
Track Number	4–10 (Track)	4–12 (Track)
Filling Method	Auger filler by servo motor
Capacity	30–45 cuts/min
Film Width & Thickness	720mm, 0.06–0.1mm	960mm, 0.06–0.1mm	1200mm, 0.06–0.1mm
Sachet Size	(Customized bag length)
Sealing Type	Back sealing/ Four side seal
Power	AC380V Three phase, AC220V Single phase, 50–60Hz
Dimension Total Weight	L1500×W1500×H2850mm, 1100kg	L2300×W1500×H2700mm, 1200kg	L2200×W1600×H2600mm, 1500kg

Inquire Now

APPLICATIONS

We provide automatic multilane sachet and stick pack packaging solutions for ORS oral saline, sugar based electrolyte solutions, beverages, fruit drinks, energy drinks, and other liquid products. The system is suitable for both medium and large-scale production environments requiring stable output and consistent packaging quality.

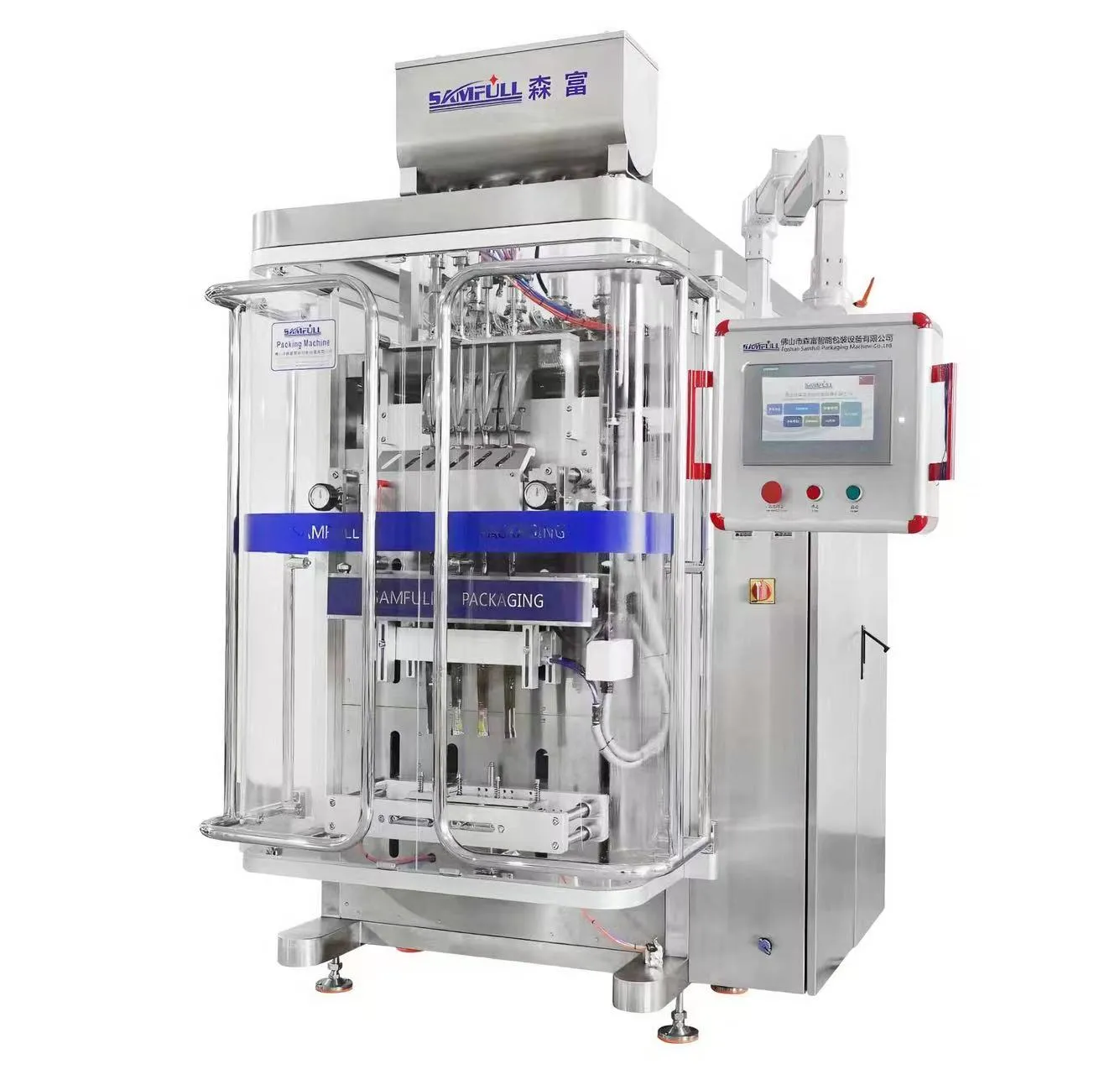

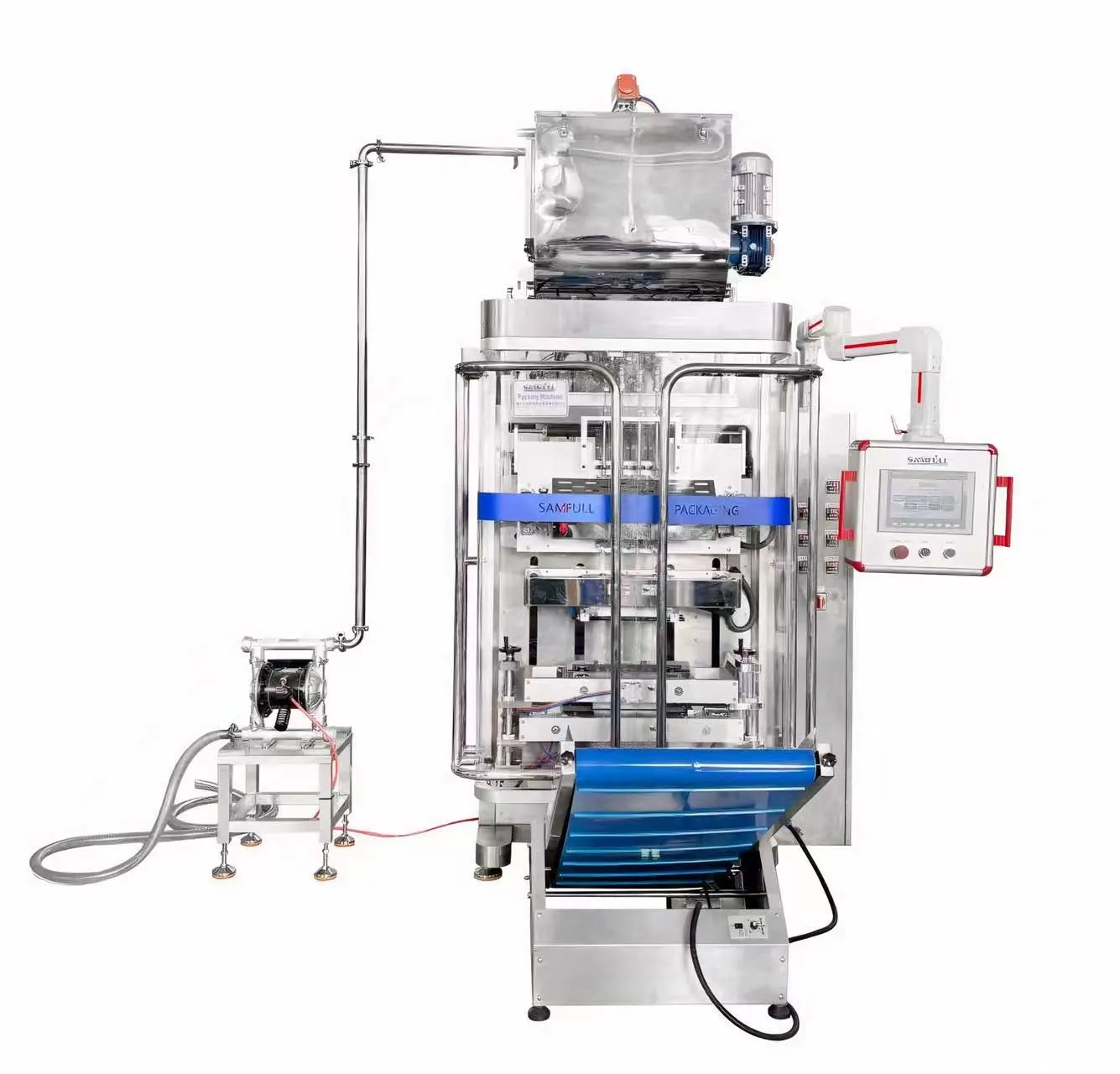

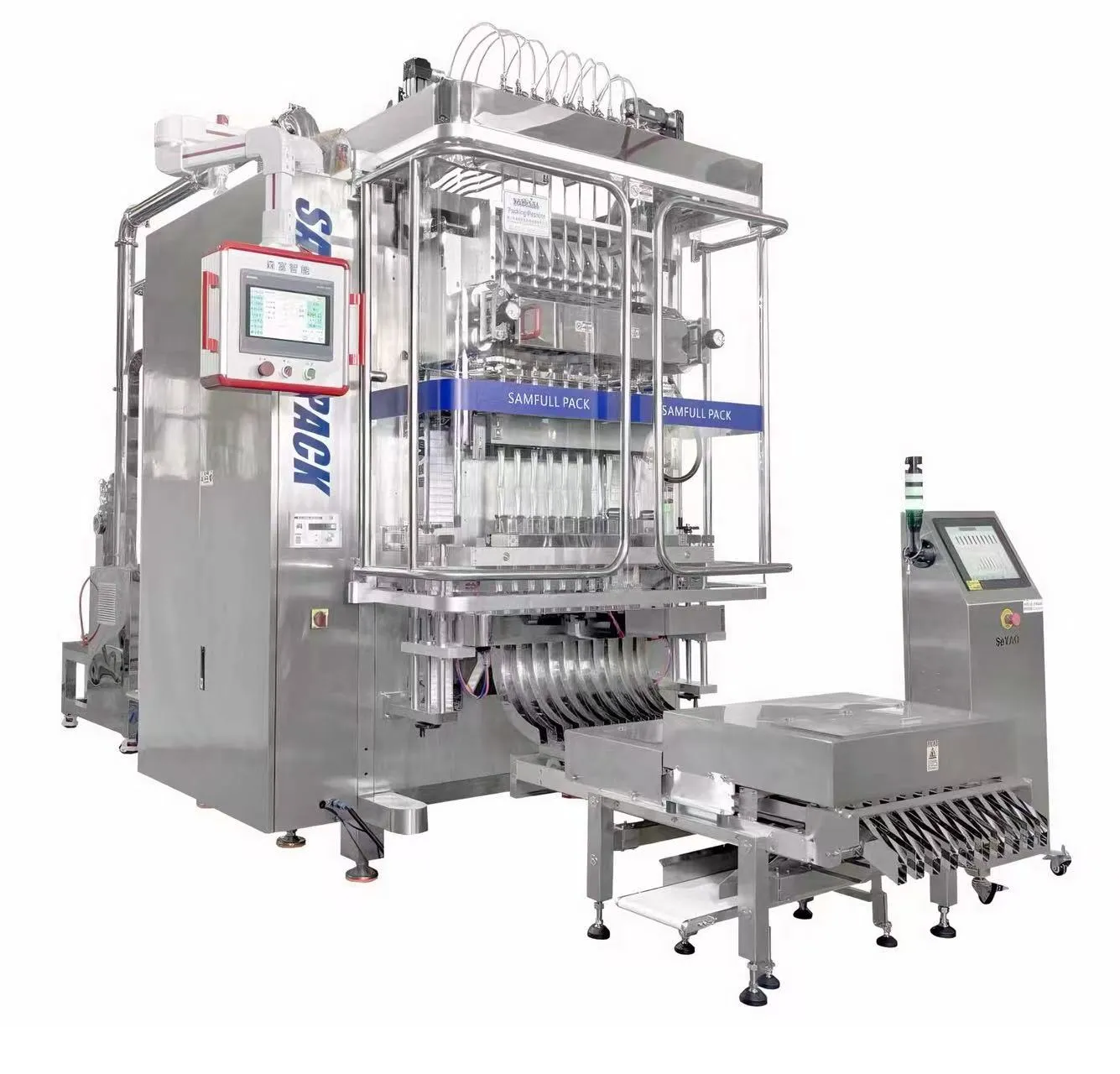

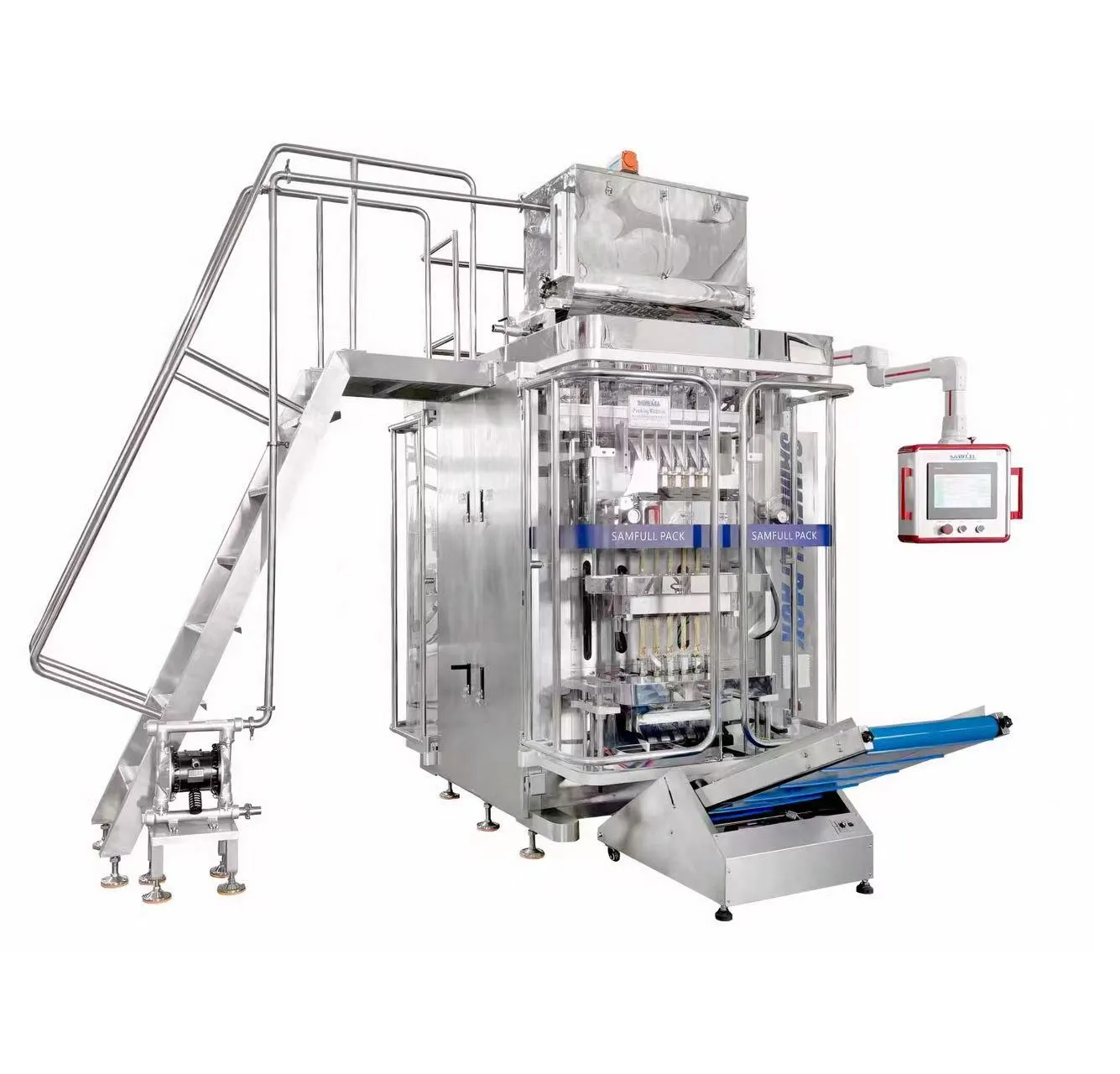

The 4–10 and 4–12 lanes liquid multilane packing machines are designed to form and fill multiple sachets or stick packs simultaneously, achieving a stable production speed of 30–55 cuts per minute depending on liquid characteristics and filling system configuration. This makes the machine ideal for high-efficiency, high-volume liquid packaging lines.

Multiple liquid filling systems are supported, including peristaltic pumps, piston pumps, and ceramic pumps, ensuring accurate, hygienic, and reliable dosing for liquids with different viscosities and compositions.

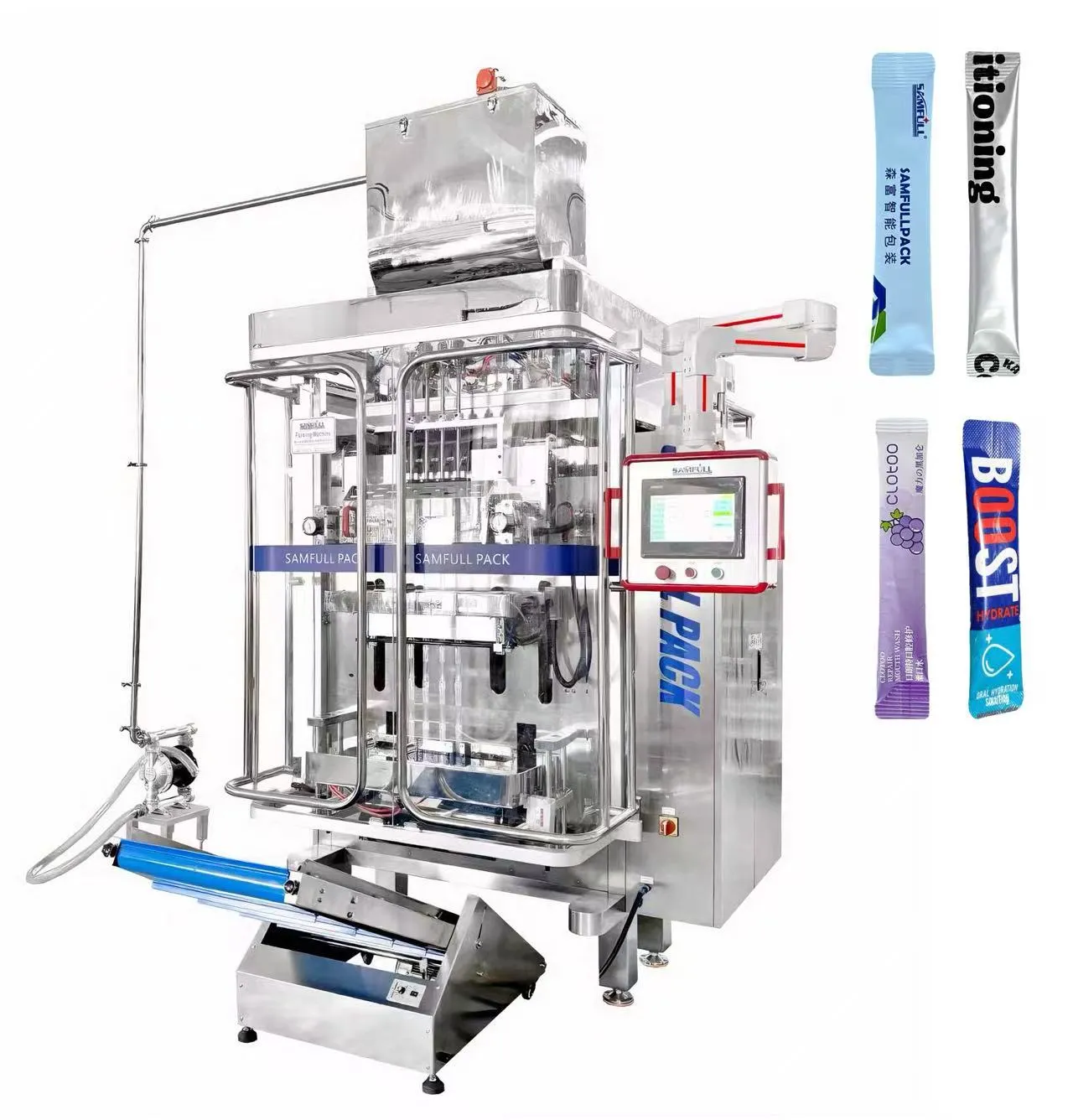

The machine supports flexible packaging formats such as back-sealed sachets and stick packs, with adjustable bag length and multiple cutting modes to meet various market and branding requirements.

In addition, the system can be integrated with downstream equipment such as counting units, cartoning machines, and secondary bagging or vertical form fill seal machines to build a complete automated liquid packaging line.

Kindly Reminder

Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.

Product type and liquid characteristics
Bag dimensions (length and width)
Filling volume per sachet
Bag style (sachet or stick pack)
Required output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1.The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;

2.Equipment with safety protection, in line with enterprise safety management requirements;

3.Imported-brand electrical components; Siemens PLC + touch screen control, high reliability and intelligence, high speed and high efficiency;

4.Independent temperature control system with accurate control; sealing is beautiful and smooth;

5.Film pulling system and color mark control can be adjusted via touch screen; easy deviation correction and incision deviation correction; recipes can be stored for quick product changeover;

6.4–12 lanes packing according to bag width; can connect with dosing line and automatic cartoning machine to achieve packing & cartoning automation production line.
