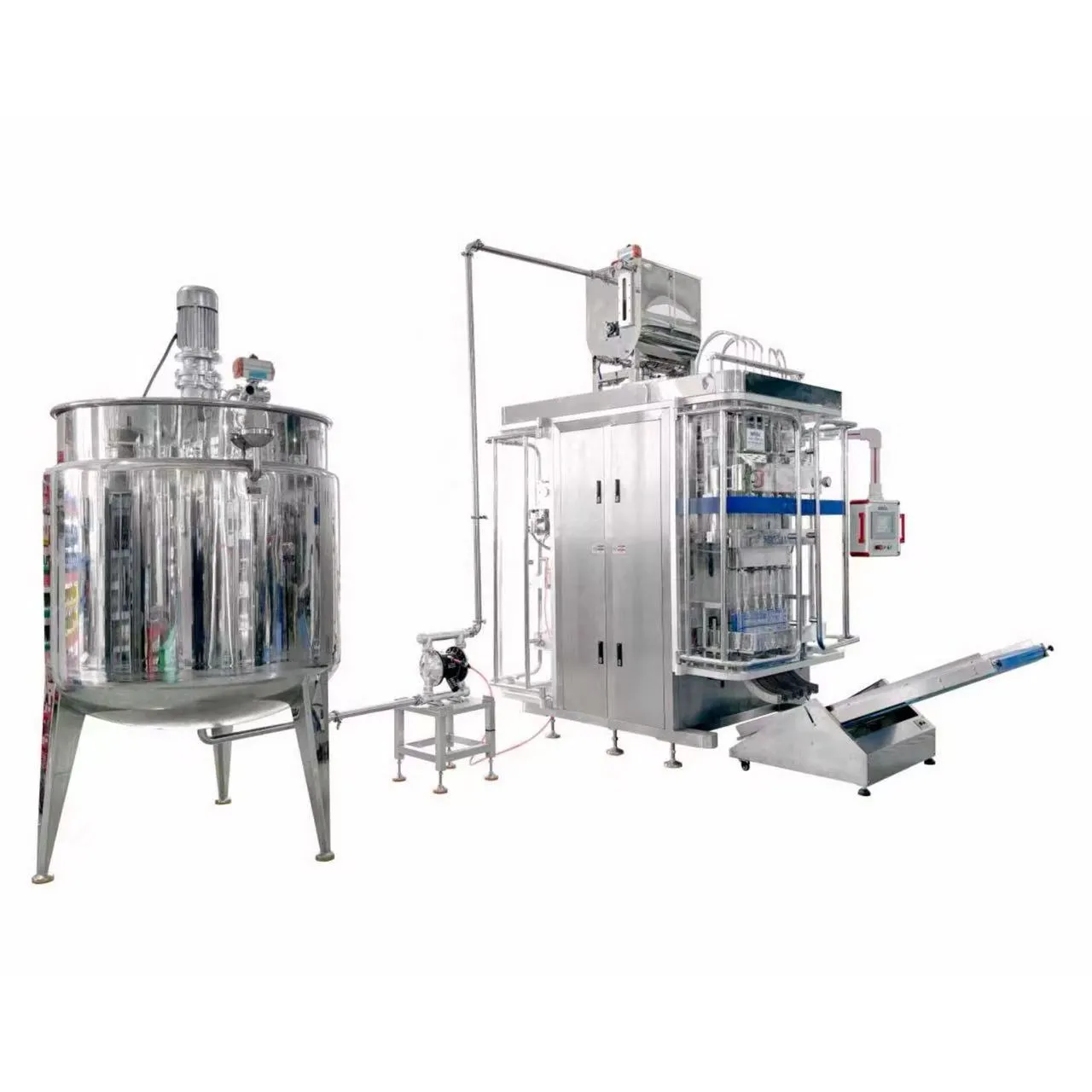

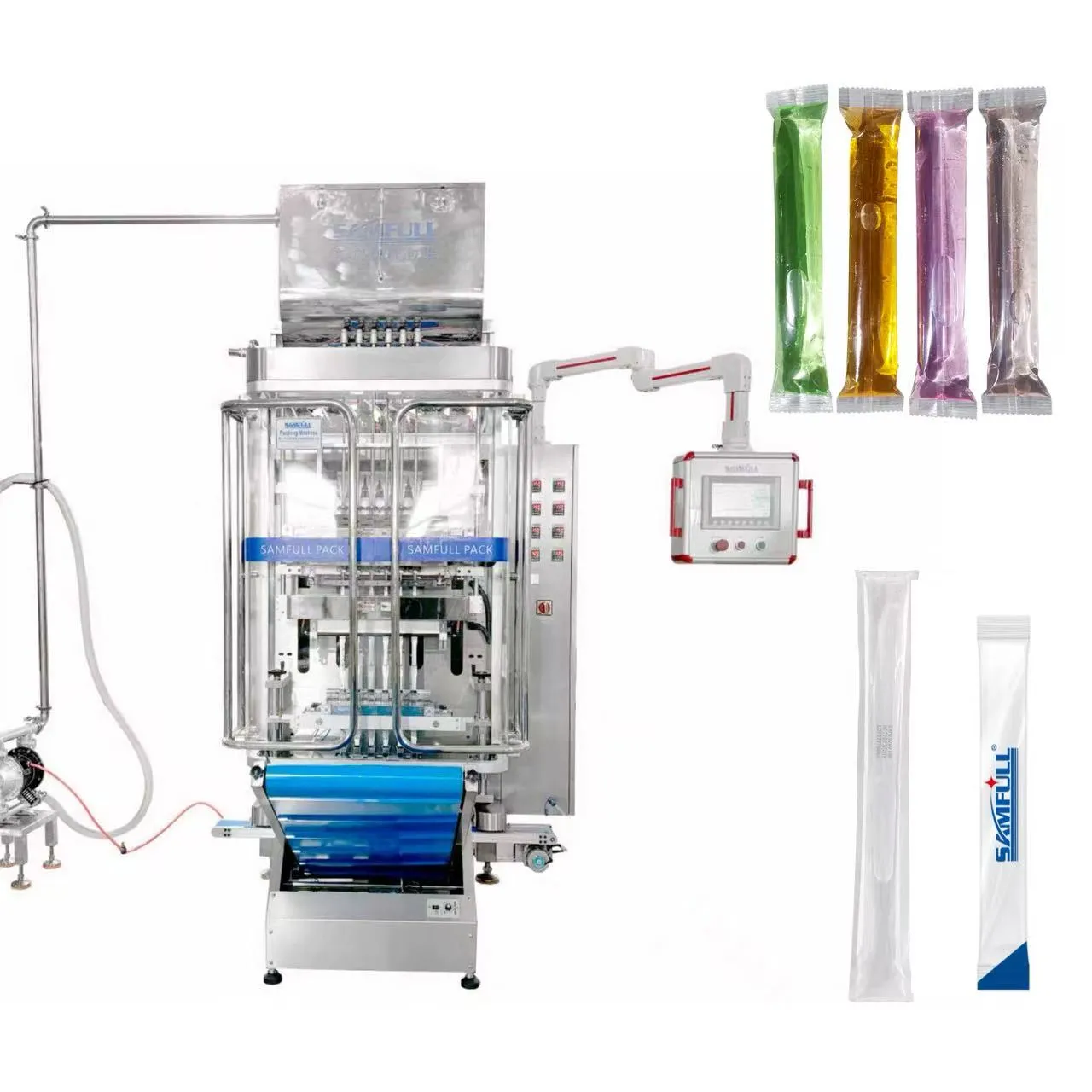

Overall view of the multi-flavor ice pop 6-lane liquid back seal packaging machine

Multi-flavor ice pop multilane 6-lane liquid back seal popsicle liquid ice juice packaging machine

Technical details

Parameters	Specifications
Model	SF2.0F
Track Number	4–10 Tracks
Filling Method	Peristaltic pump /Piston pump /Ceramic pump
Capacity	20–35 Cut/minAccording to the material condition
Film Width And Thickness	Max: 720mm, 0.06–0.1mm
Sachet Size	Length: 45–450mmWidth: 30–50mm
Sealing Type	Four sides sealing/Back sealing
Cutting Type	1. Flatten cutting 2. Zig zag cutting 3. Continuous cutting
Air Consumption And Voltage	0.8MPa, 0.8m³, 4.5kW
Power	AC380V Three phase, AC220V Single phase, 50–60Hz
Dimension And Total Weight	L1900 x W1500 x H2800mm, 1200kg

Inquire Now

APPLICATIONS

This multi-flavor ice pop 6-lane liquid back seal packaging machine is designed for efficient and precise packaging of popsicles, ice juice, and other frozen liquid products. It features a 6-lane VFFS (Vertical Form Fill Seal) system with back seal/four sides seal pouches, ensuring accurate filling, stable operation, and smooth, consistent sealing. The machine supports simultaneous packaging of multiple flavors and is equipped with a user-friendly touch screen control for easy operation and quick product changeovers.

Kindly Reminder

Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable ice pop or liquid packaging solution for your reference.

1. Product type and flavor(s)

2. Pouch dimensions (length and width)

3. Liquid filling volume per pouch

4. Bag style (back seal, stick, or other)

5.Required production capacity (units per hour)

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;
The electrical components are imported famous brands, stable and efficient, with low failure rate;
Equipped with safety protection, in line with enterprise safety management requirements;
Independent temperature control system is adopted, and the temperature control is accurate; the sealing is beautiful and smooth;
Siemens PLC control, touch screen control, automatic control capability of the whole machine, high reliability and intelligence, high speed and high efficiency;
Independent servo motor metering, servo motor pull film, film pull system and eyemark system can be automatically adjusted through touch screen, automatic correction system of roll film system, automatic storage of multiple products formulas, replacement of products can be used at any time without adjustment, no adjustment is required.
