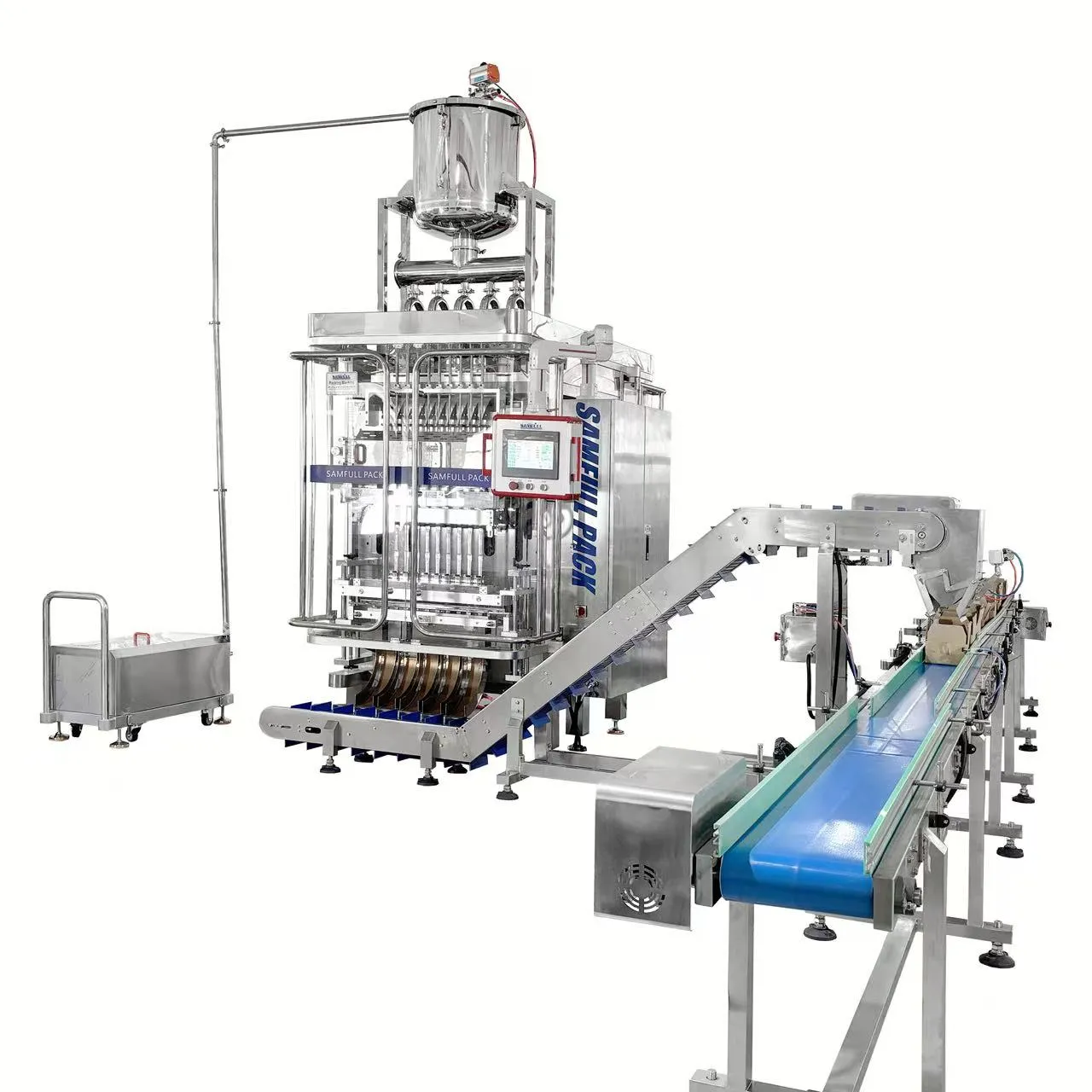

Liquid Multilane Packing Machine
Technical details
| Item | SF2.0S | SF3.0S | SF4.0S |
| Track Number | 4–10 (Track) | 4–12 (Track) | |
| Filling Method | Peristaltic pump / Piston pump / Ceramic pump | ||
| Capacity | 30–55 cuts/min (According to the material condition) | ||
| Film Width & Thickness | Max: 520mm, 0.06–0.1mm | Max: 720mm, 0.06–0.1mm | Max: 820mm, 0.06–0.1mm |
| Sachet Size | L: 45–160mm W: 17–80mm (Customized bag length) | ||
| Sealing Type | Back sealing / Stick bag | ||
| Cutting Type | Flatten cutting / Zig zag cutting / Round cutting | ||
| Air Consumption & Voltage | 0.8MPa, 0.8m³ / 4.5kW | 0.8MPa, 0.8m³ / 5.5kW | 0.8MPa, 0.8m³ / 6.5kW |
| Power | AC380V Three phase, AC220V Single phase, 50–60Hz | ||
| Dimension & Total Weight | L1400×W2000×H2400mm, 1200kg | L1500×W2000×H2500mm, 1300kg | L1600×W2100×H2600mm, 1400kg |
APPLICATIONS
We provide automatic multilane sachet and stick pack packaging solutions for honey and other liquid or viscous products, suitable for small to large-scale production requirements.
The 4–10 and 4–12 lanes multilane liquid packing machines are designed to produce multiple sachets simultaneously, with a stable output of 30–55 cuts per minute depending on product characteristics and filling method. This makes them ideal for high-efficiency and high-volume production lines.

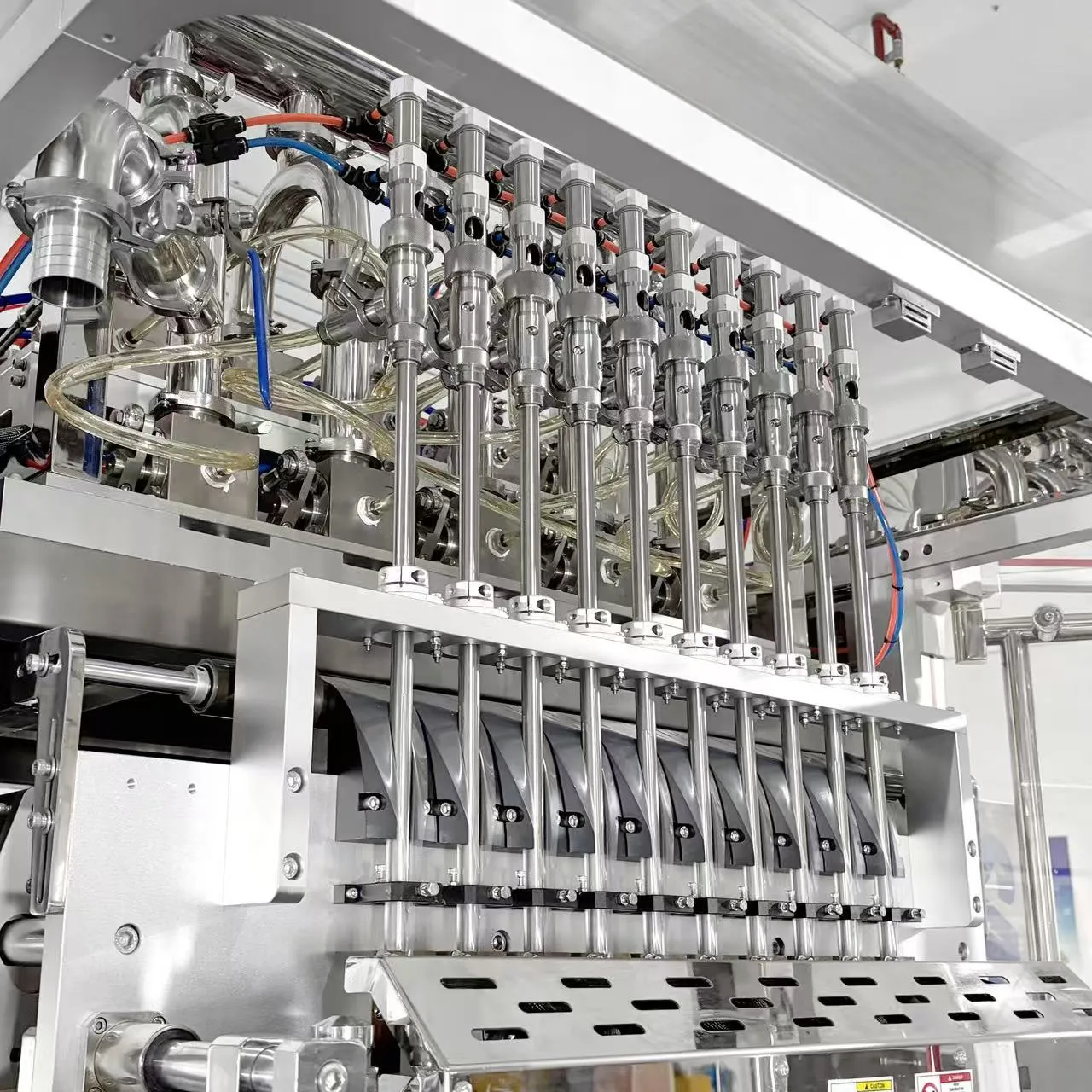

The machines support various filling systems, including peristaltic pumps, piston pumps, and ceramic pumps, ensuring accurate and hygienic dosing for different liquid viscosities.

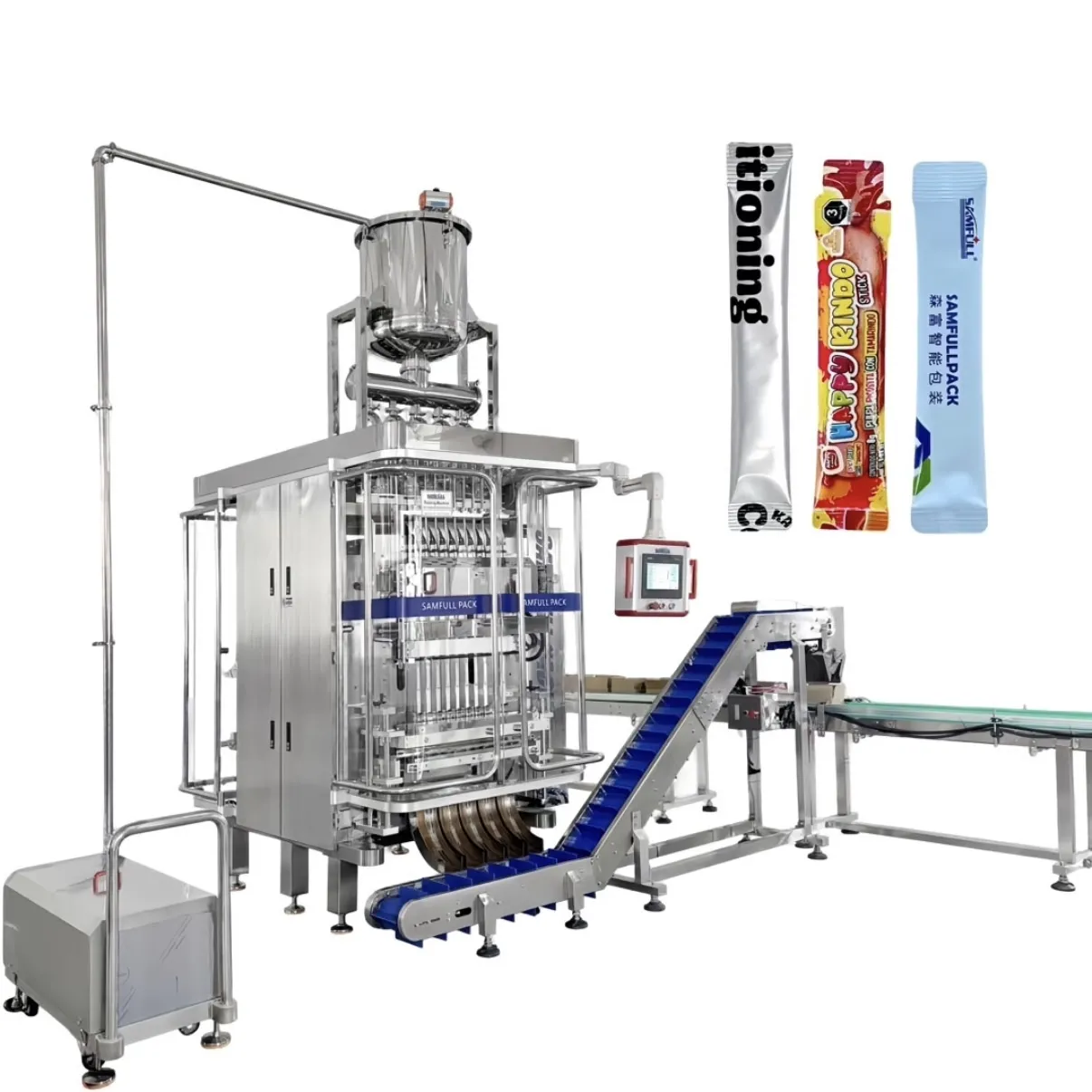

Flexible packaging formats are available, such as back-sealed sachets and stick bags, with customizable bag length and multiple cutting options to meet diverse market demands.
In addition, we can supply secondary packaging equipment, including counting devices, cartoning machines, and bag-in-bag vertical packaging machines, to build a complete automated packaging line.
Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.
Product type and characteristics
Bag dimensions (length and width)
Filling weight per sachet
Bag style (sachet or stick pack)
Required output capacity
PACKAGING
Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.
FUNCTIONAL FEATURES
1.The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards;
2.Equipment with safety protection, in line with enterprise safety management requirements;
3.Imported-brand electrical components; Siemens PLC + touch screen control, high reliability and intelligence, high speed and high efficiency;

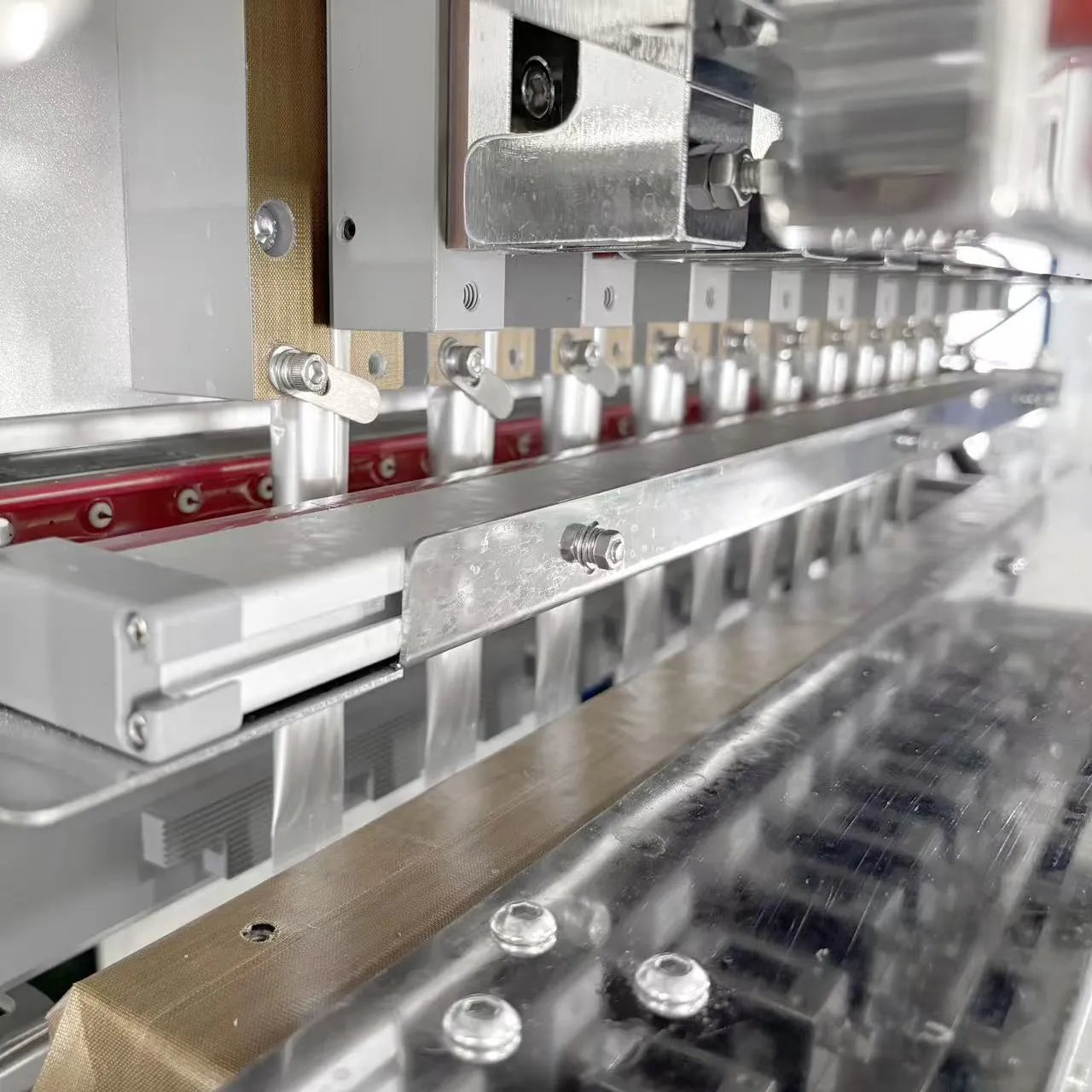

4.Independent temperature control system with accurate control; sealing is beautiful and smooth;
5.Film pulling system and color mark control can be adjusted via touch screen; easy deviation correction and incision deviation correction; recipes can be stored for quick product changeover;
6.4–12 lanes packing according to bag width; can connect with dosing line and automatic cartoning machine to achieve packing & cartoning automation production line.
