High Speed Popcorn Packaging Line With Continuous Motion VFFS, Automatic Snack Bagging System For Snacks Packing Solution

Technical details

Parameter	Value
Model	SF-2.0S
Bag Length	100–400mm
Bag Width	80–250mm
Max Width Of Roll Film	520mm
Packing Material	PET/VMPET/PE 80 micron
Packing Speed	80–150 bags per minute
Measuring Range	20g–500g
Dimension	L1080xW1300xH1400mm
Total Weight	540kg

Inquire Now

APPLICATIONS

This high speed popcorn packaging line is designed for automatic weighing and packaging of various puffed snacks and light granular food products. In addition to popcorn, it is suitable for potato chips, corn snacks, cheese balls, rice crackers, extruded snack pellets, coated peanuts, and other similar snack foods.

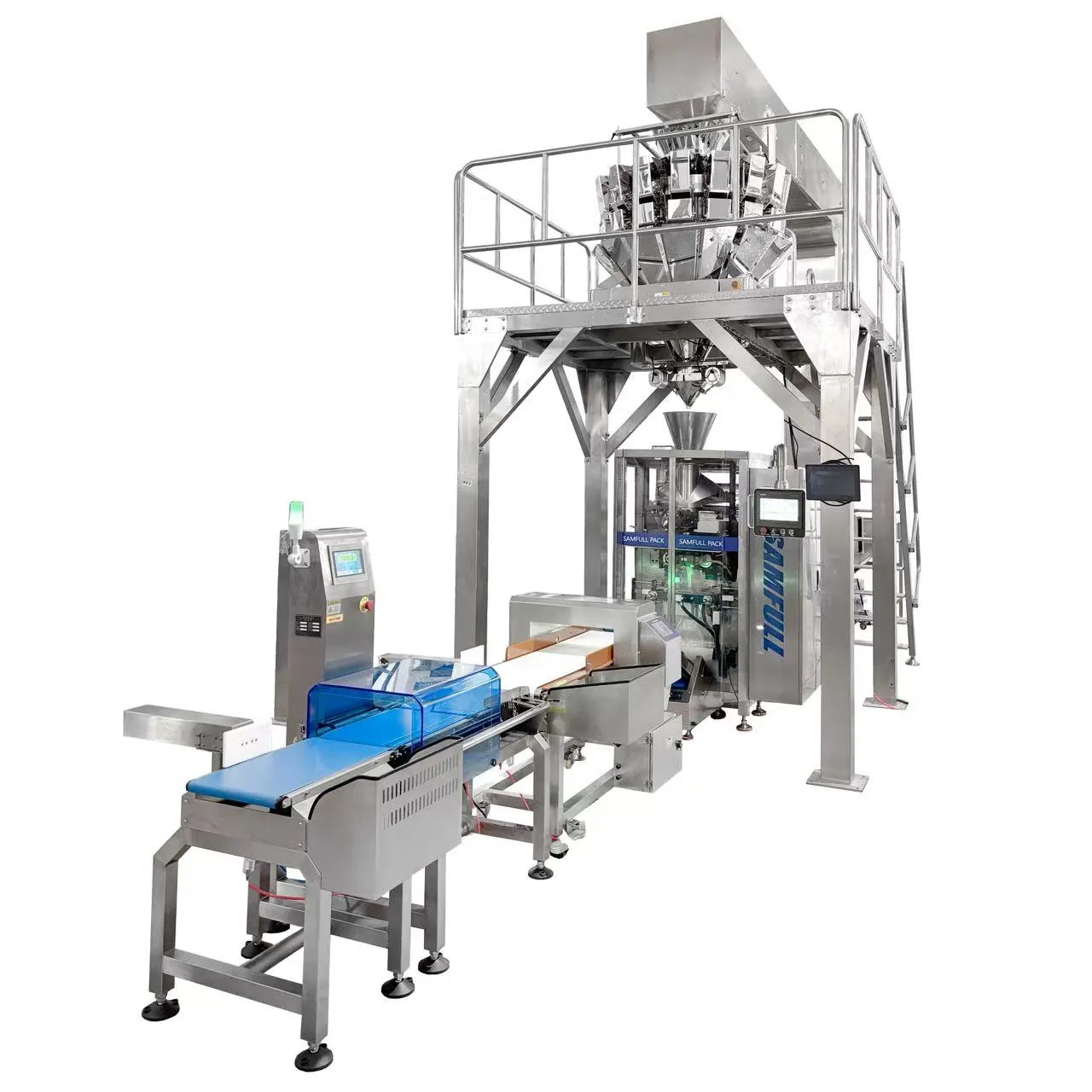

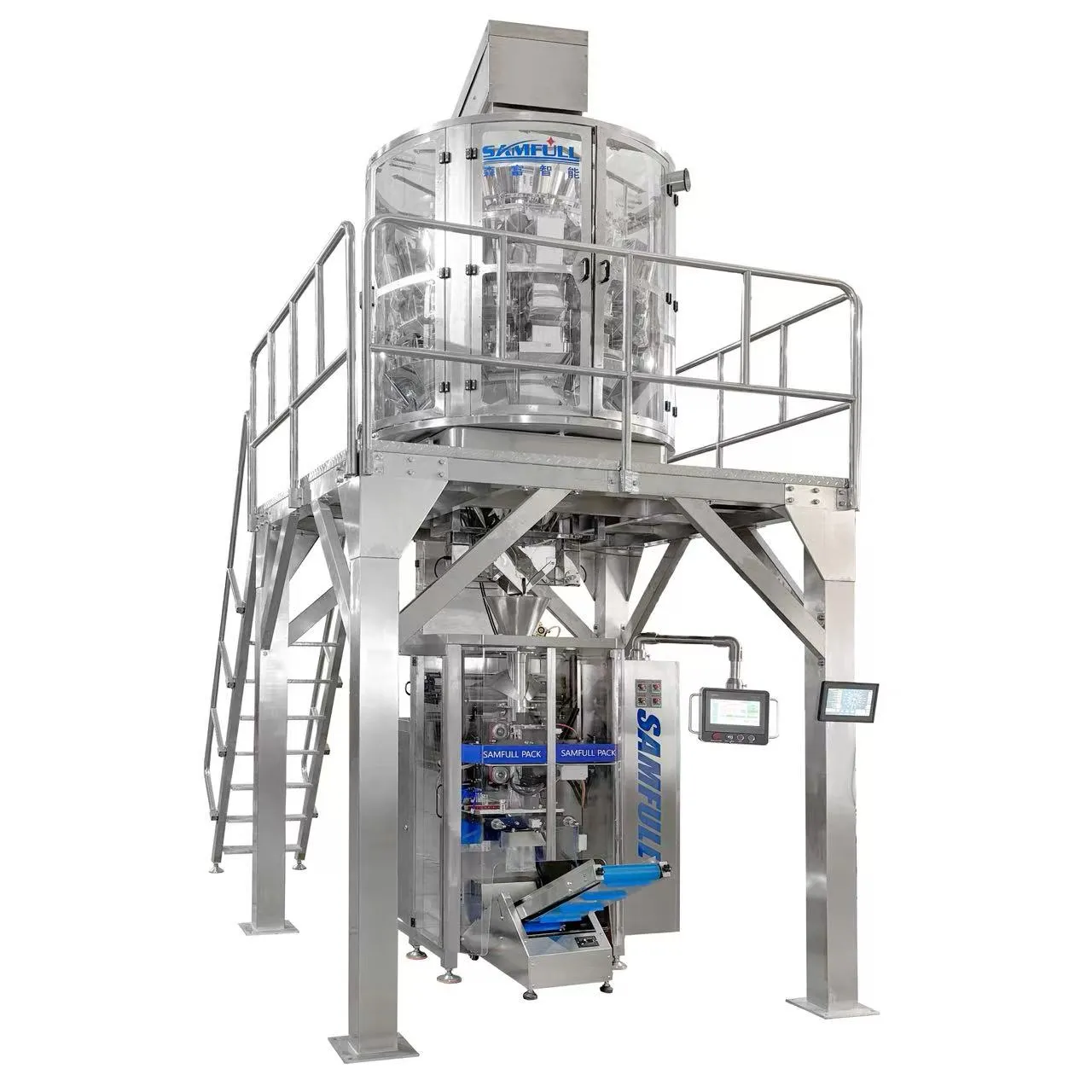

The system integrates a high-speed multihead weigher with a continuous motion VFFS packaging machine, enabling precise weighing, fast bag forming, and reliable sealing. It supports pillow bags and gusset bags commonly used in retail snack packaging.

With stable continuous operation and high output capacity, the packaging line is widely used in snack food factories, puffed food processing plants, and large-scale food production facilities requiring automated and efficient packaging solutions.

Kindly Reminder
To help us recommend the most suitable high-speed packaging solution, please provide the following details when sending your inquiry:

1. Product type and material characteristics
2. Bag dimensions (length, width, and gusset if applicable)
3. Filling weight per bag
4. Bag style (pillow bag, gusseted bag, quad seal, etc.)
5. Required packing speed and output capacity

PACKAGING

Applicable Packaging Film: BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;
Equipped with safety protection, in line with the requirements of enterprise safety management;
Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;
Servo motor film drawing, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;
Double belt film drawing, film drawing system and color code control system can be automatically adjusted by touch screen, simple operation for sealing and notching correction;
The touch screen can store a variety of packaging process parameters of different products, and can be used at any time without adjustment when replacing products;
The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;
The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag–making, filling, sealing, cutting and product conveying;
It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs;
The machine adopts closed Struture to prevent dust from entering the machine effectively.
