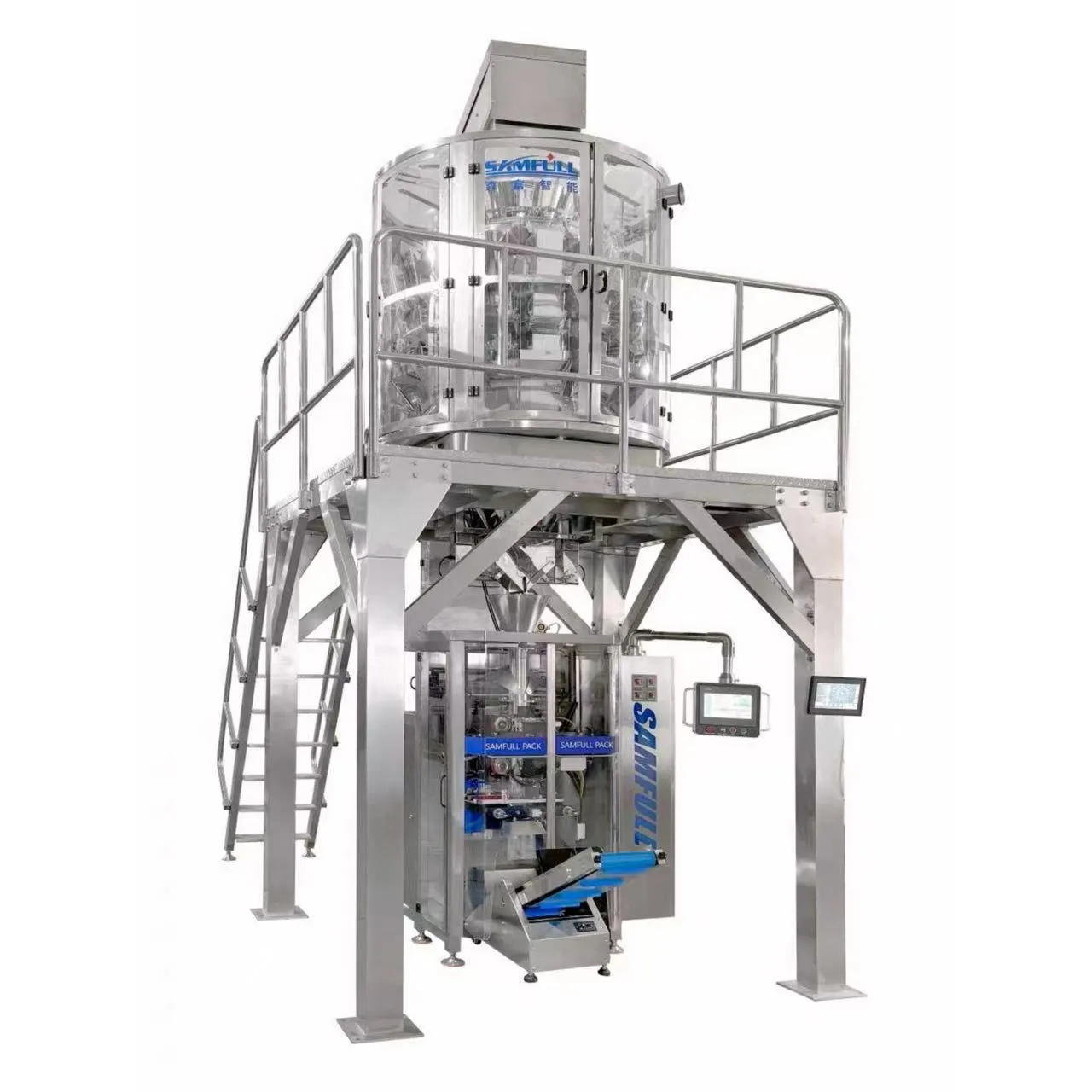

High Speed Packing Machine
Technical details
| Parameter | Value |
| Model | SF-2.0S |
| Bag Length | 100–400mm |
| Bag Width | 80–250mm |
| Max Width Of Roll Film | 520mm |
| Packing Material | PET/VMPET/PE 80 micron |
| Packing Speed | 80–150 bags per minute |
| Measuring Range | 20g–500g |
| Air Consumption | 0.65MPa, 0.3m/min |
| Power Voltage | 220VAC 50Hz |
| Power | 3KW |
| Dimension | L1080xW1300xH1400mm |
| Total Weight | 540kg |
APPLICATIONS

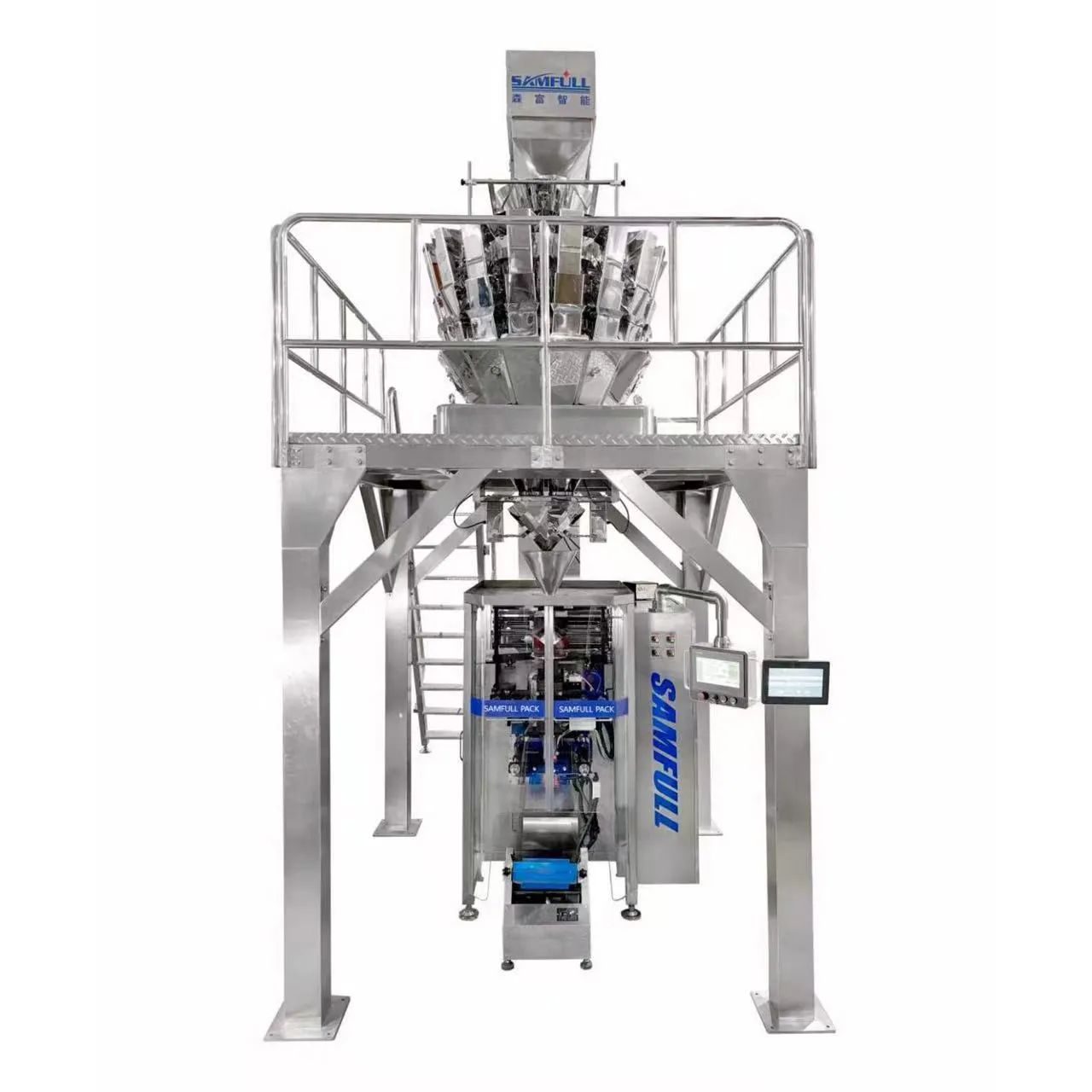

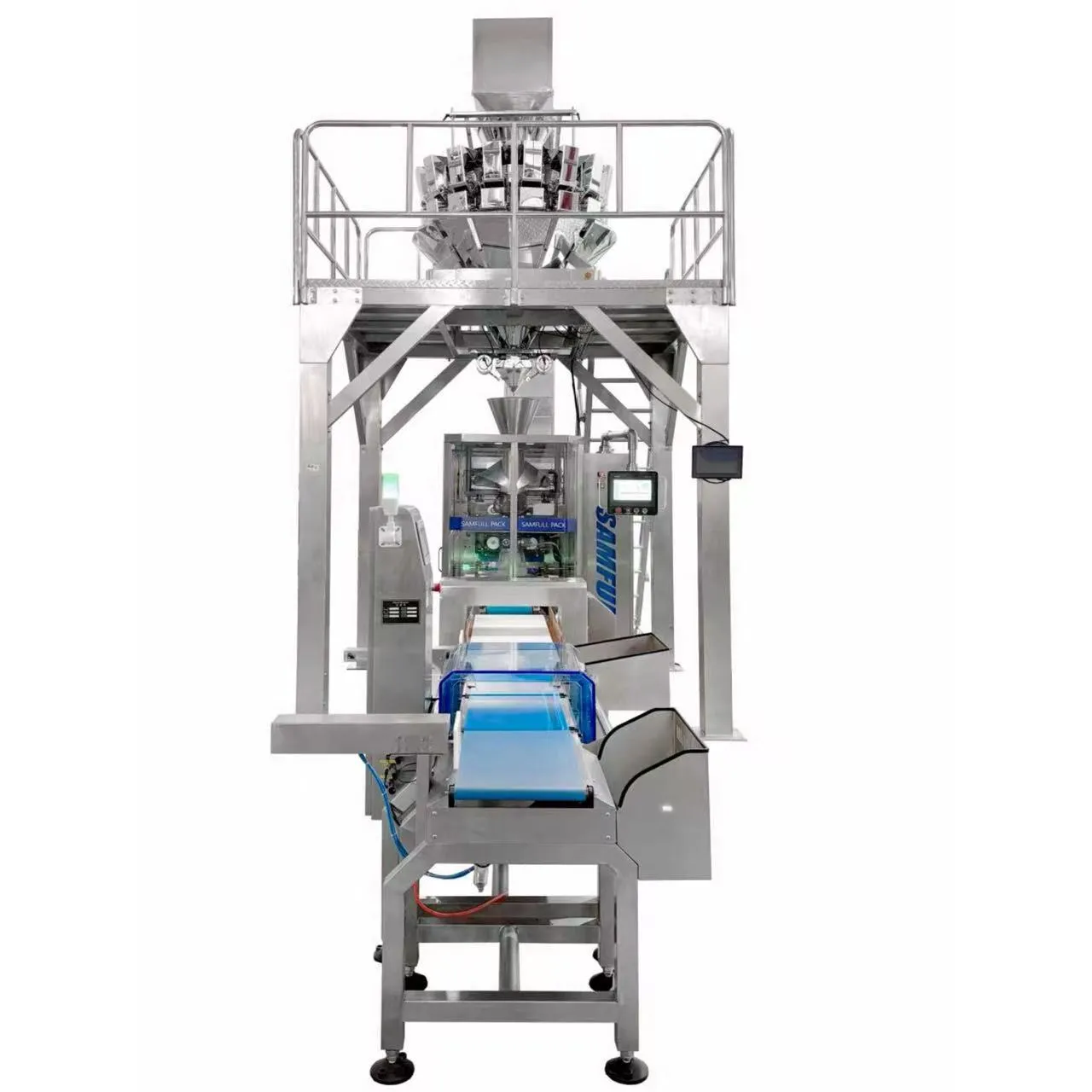

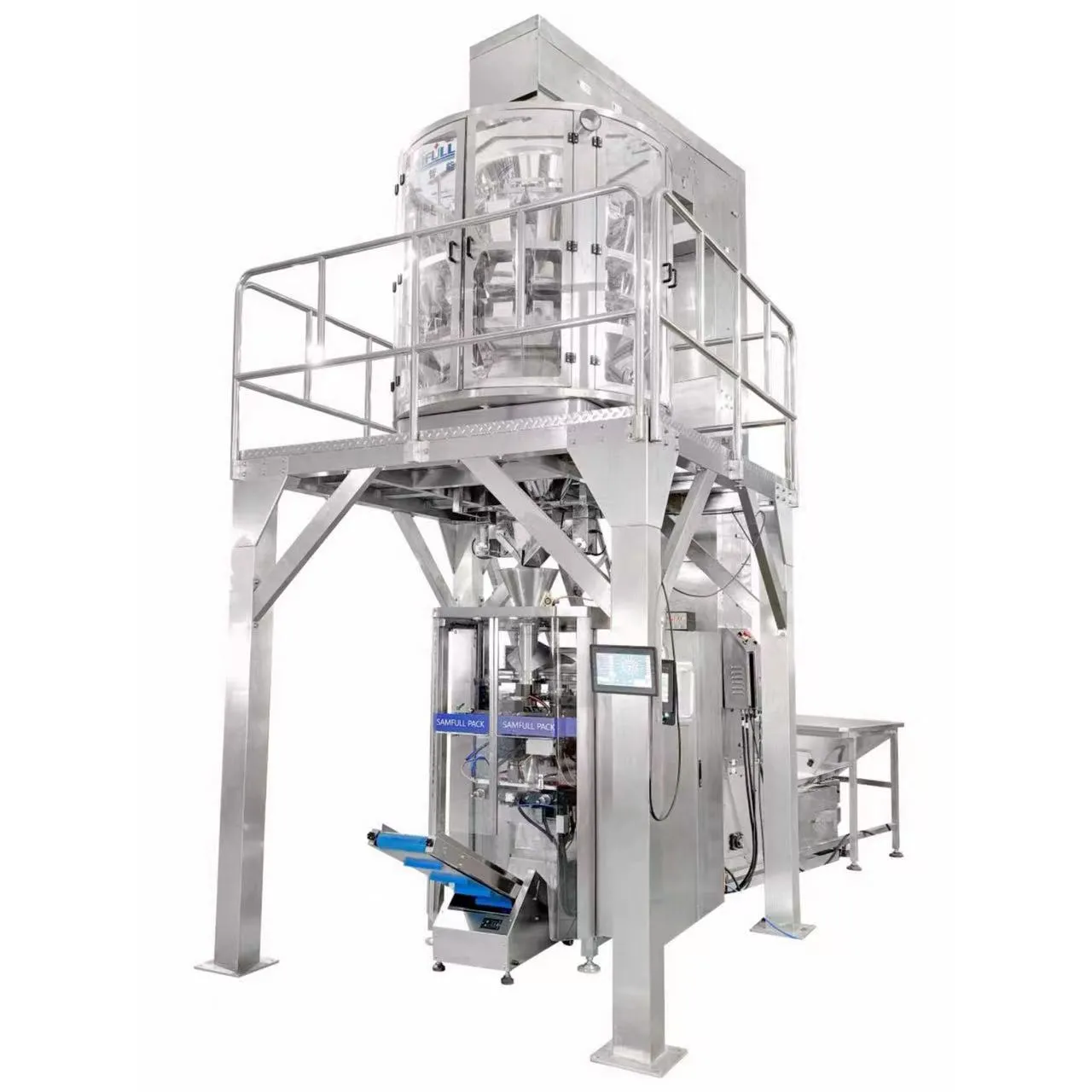

This high-speed multihead weigher vertical form fill seal (VFFS) packing machine is suitable for the automatic packaging of a wide range of granular, pellet, and free-flowing products. Typical applications include snacks, nuts, seeds, dried fruits, rice, sugar, coffee beans, cereals, pet food, hardware parts, and other similar granules. The system supports multiple bag types such as pillow bags, gusseted bags options, with a flexible filling capacity ranging from small portions to large bags depending on product density and weighing configuration. It is widely applied in food processing plants, agricultural product packaging, pet food production, and industrial granule packing lines where high speed, high accuracy, and continuous operation are required.
Kindly Reminder
To help us recommend the most suitable high-speed packaging solution, please provide the following details when sending your inquiry:
Product type and material characteristics
Bag dimensions (length, width, and gusset if applicable)
Filling weight per bag
Bag style (pillow bag, gusseted bag, quad seal, etc.)
Required packing speed and output capacity
PACKAGING
Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.
FUNCTIONAL FEATURES
The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;
Equipped with safety protection, in line with the requirements of enterprise safety management;
Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;
Servo motor film drawing, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;
Double belt film drawing, film drawing system and color code control system can be automatically adjusted by touch screen, simple operation for sealing and notching correction;
The touch screen can store a variety of packaging process parameters of different products, and can be used at any time without adjustment when replacing products;
The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;
The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag–making, filling, sealing, cutting and product conveying;
It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs;
The machine adopts closed Struture to prevent dust from entering the machine effectively.
