High speed vertical packaging machine for freeze dried apple slices

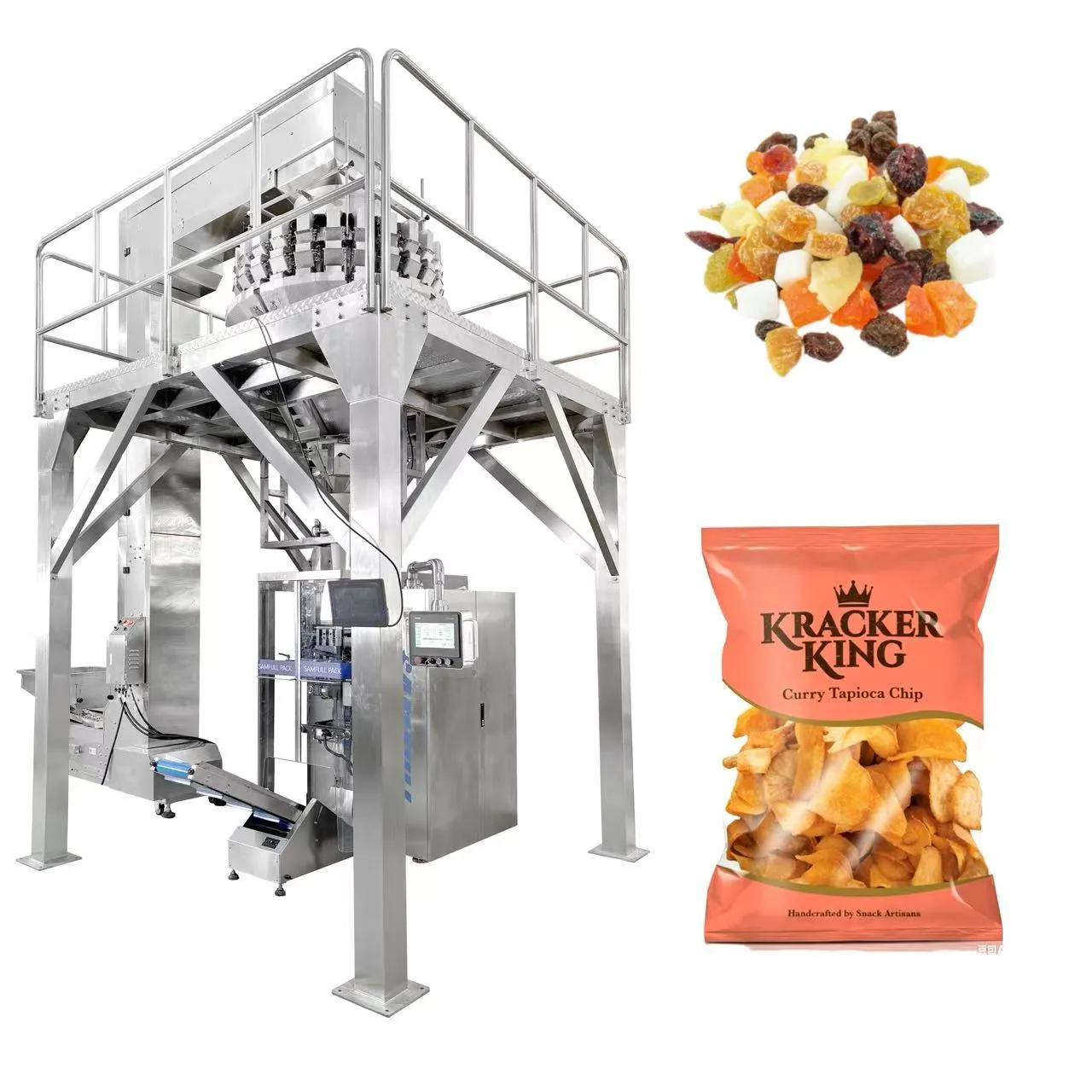

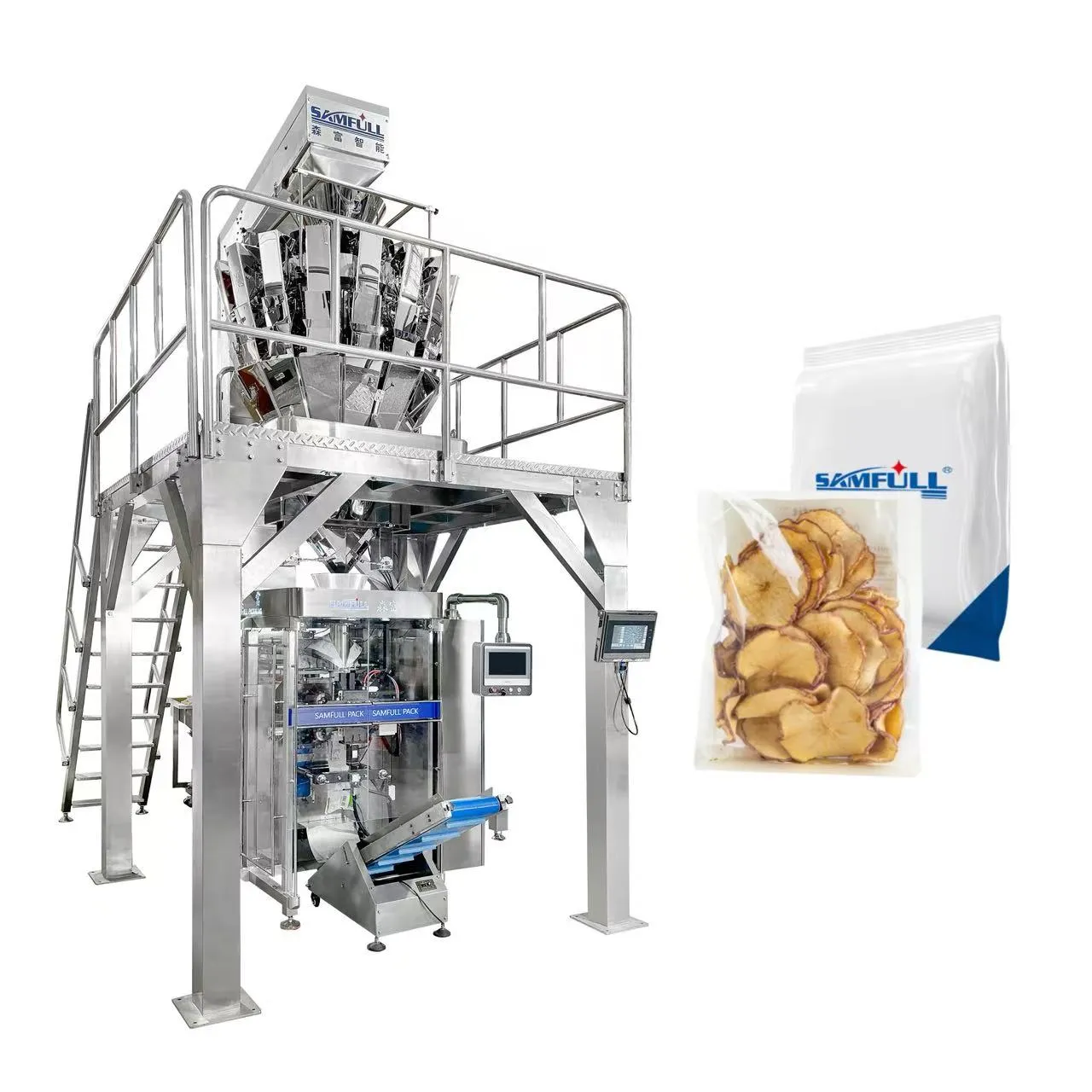

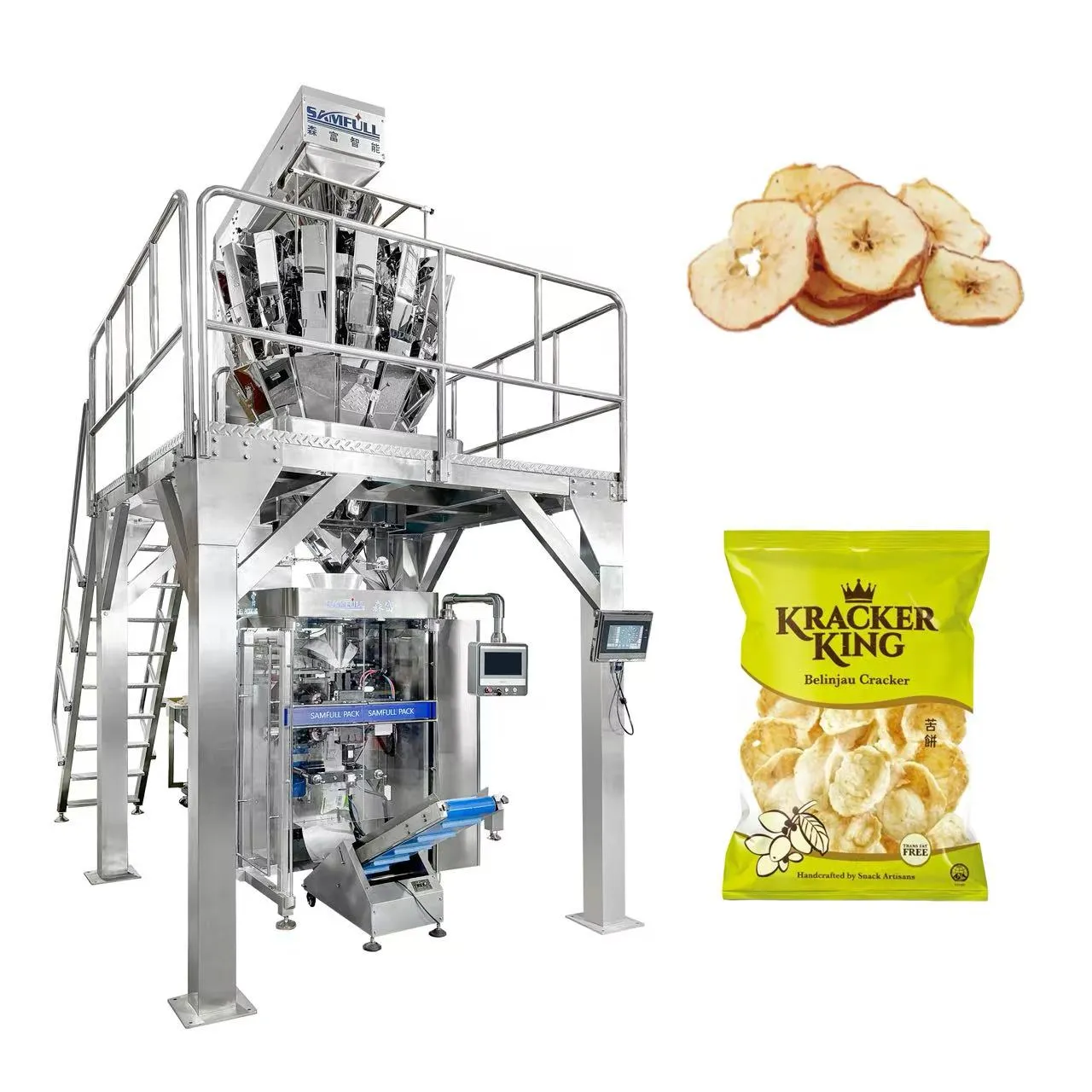

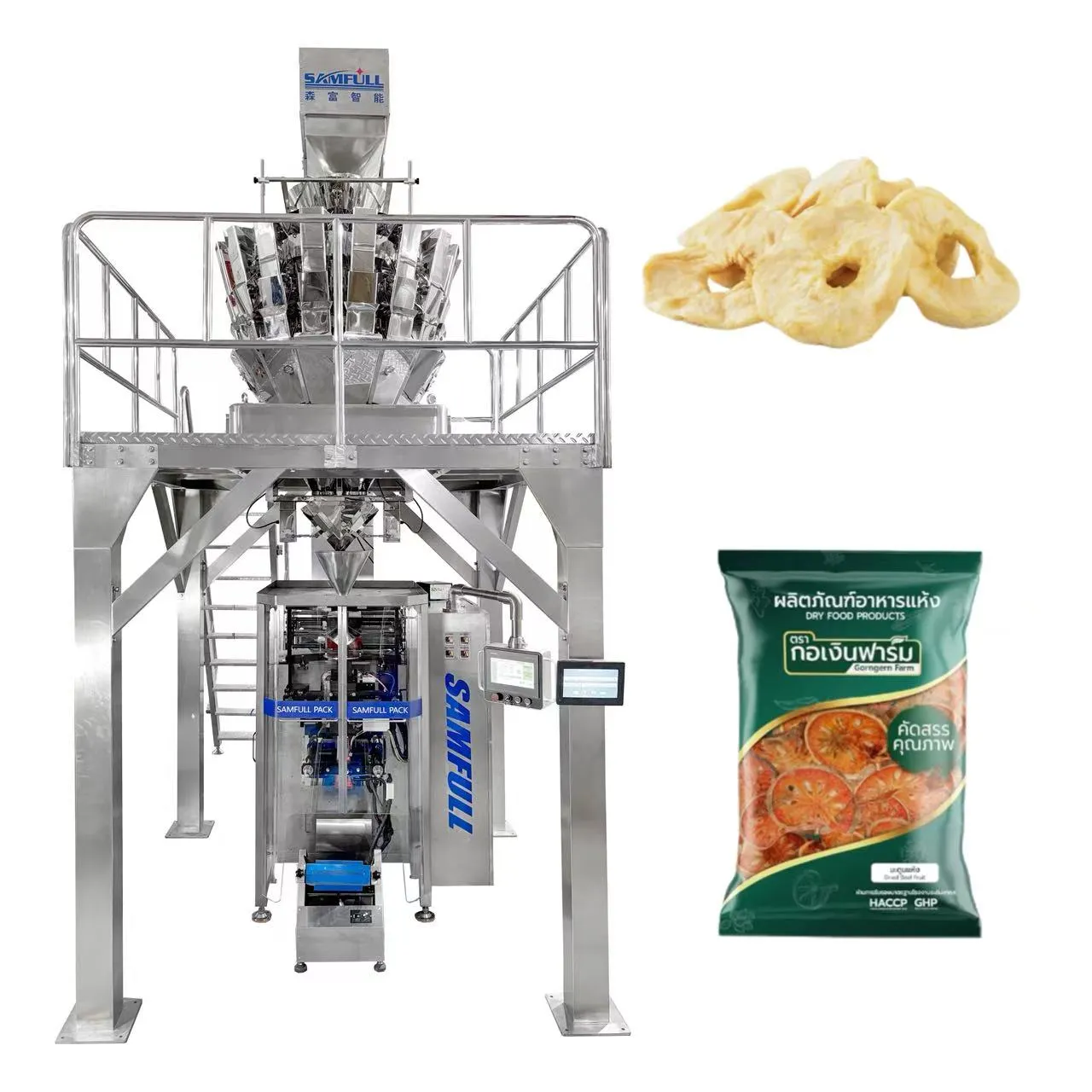

High Speed Fully Automatic Vertical Packaging Machine for Freeze Dried Apple Slices & Snacks

Technical details

Parameter	Specification
Model	SF-2.0S
Bag Length	100 – 400 mm
Bag Width	80 – 250 mm
Max Film Width	520 mm
Packing Material	PET / VMPET / PE (80 micron)
Packing Speed	80 – 150 bags/min
Weighing Range	20 g – 500 g
Machine Dimensions	1080 × 1300 × 1400 mm (L × W × H)
Total Weight	540 kg

Inquire Now

APPLICATIONS

This high-speed fully automatic vertical packaging machine is specially designed for freeze-dried apple slices, fruits, and lightweight snack products. It is also suitable for freeze-dried strawberries, bananas, mixed fruits, vegetable chips, and other fragile or low-density materials.

The system integrates a high-precision weighing system with an advanced VFFS packaging machine, ensuring accurate dosing, gentle handling, and stable sealing performance. It effectively reduces product breakage, making it ideal for delicate freeze-dried foods.

Supporting multiple bag types such as pillow bags and gusset bags, the machine meets various retail packaging requirements. With high efficiency and continuous operation capability, it is widely used in freeze-dried food processing plants, snack factories, and modern automated packaging lines.

PACKAGING

Applicable Packaging Film: BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;
Equipped with safety protection, in line with the requirements of enterprise safety management;
Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;
Servo motor film drawing, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;
Double belt film drawing, film drawing system and color code control system can be automatically adjusted by touch screen, simple operation for sealing and notching correction;
The touch screen can store a variety of packaging process parameters of different products, and can be used at any time without adjustment when replacing products;
The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;
The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag–making, filling, sealing, cutting and product conveying;
It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs;
The machine adopts closed Struture to prevent dust from entering the machine effectively.
