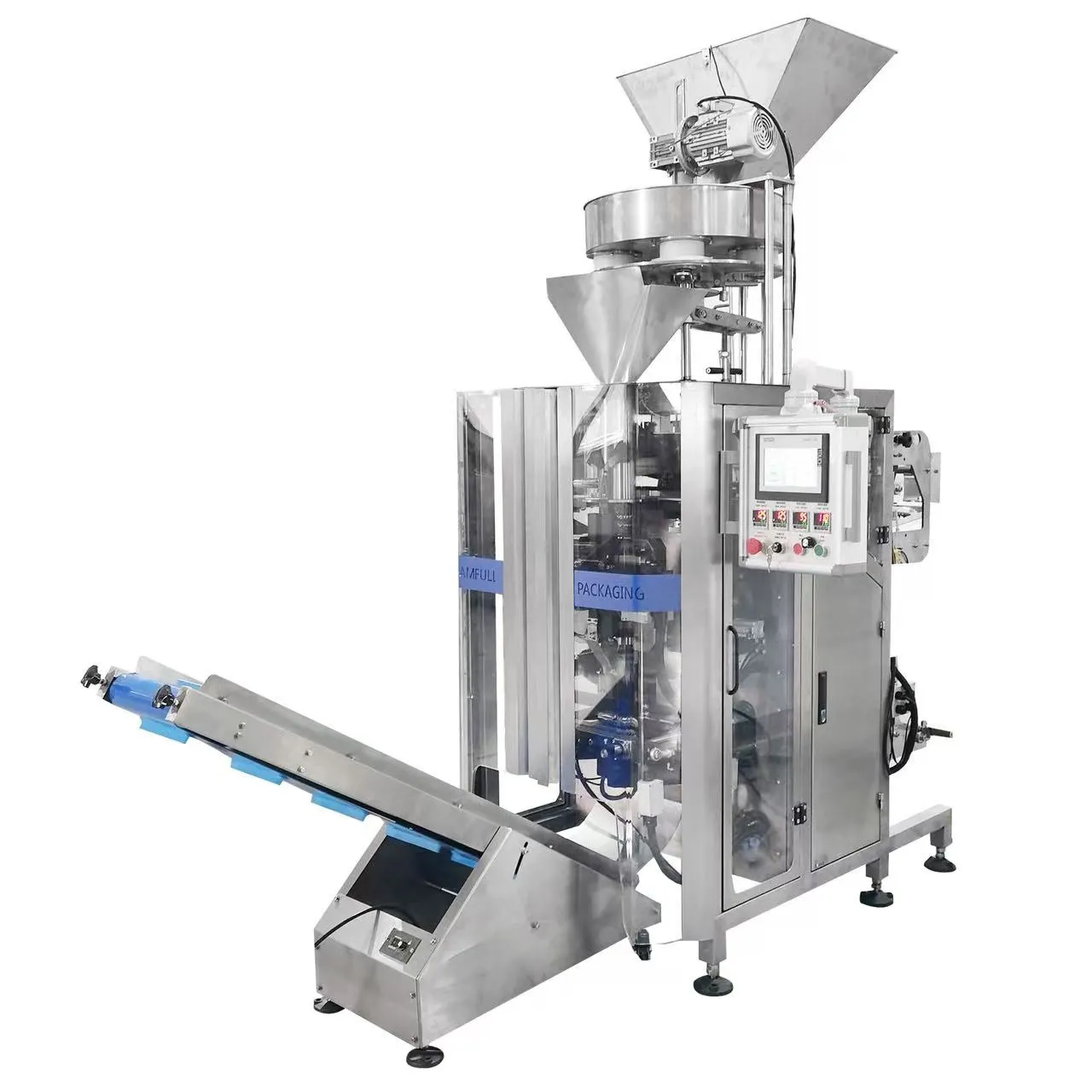

Fully automatic vertical rice packaging machine with volumetric cup filler system

Vertical Rice Packaging With Volumetric Cup System, Automatic Grain Bagging System, Cup Dosing Solution For Rice And Cereals Granular Products

Technical details

Model	SF-2.0T	SF-3.0T
Max Width Of Roll Film	≤ 520 mm	≤ 720 mm
Bag Sizes	Bag width: W 80–250 mm Bag length: L 100–400 mm	Bag width: W 150–350 mm Bag length: L 100–480 mm
Packing Speed	20–45 bags/min	20–30 bags/min
Packing Material	OPP/CPP, OPP/PE, PET/PE, PE
Bag Type	Back sealing bag / Gusset bag / Quad seal bag
Air Consumption	6–8 kgf/cm², 0.6 m³/min
Power And Voltage	AC380V, 3 phase, 50–60 Hz, 4.25 kW	AC380V, 3 phase, 50–60 Hz, 5.75 kW
Total Weight	1000 kg

Inquire Now

APPLICATIONS

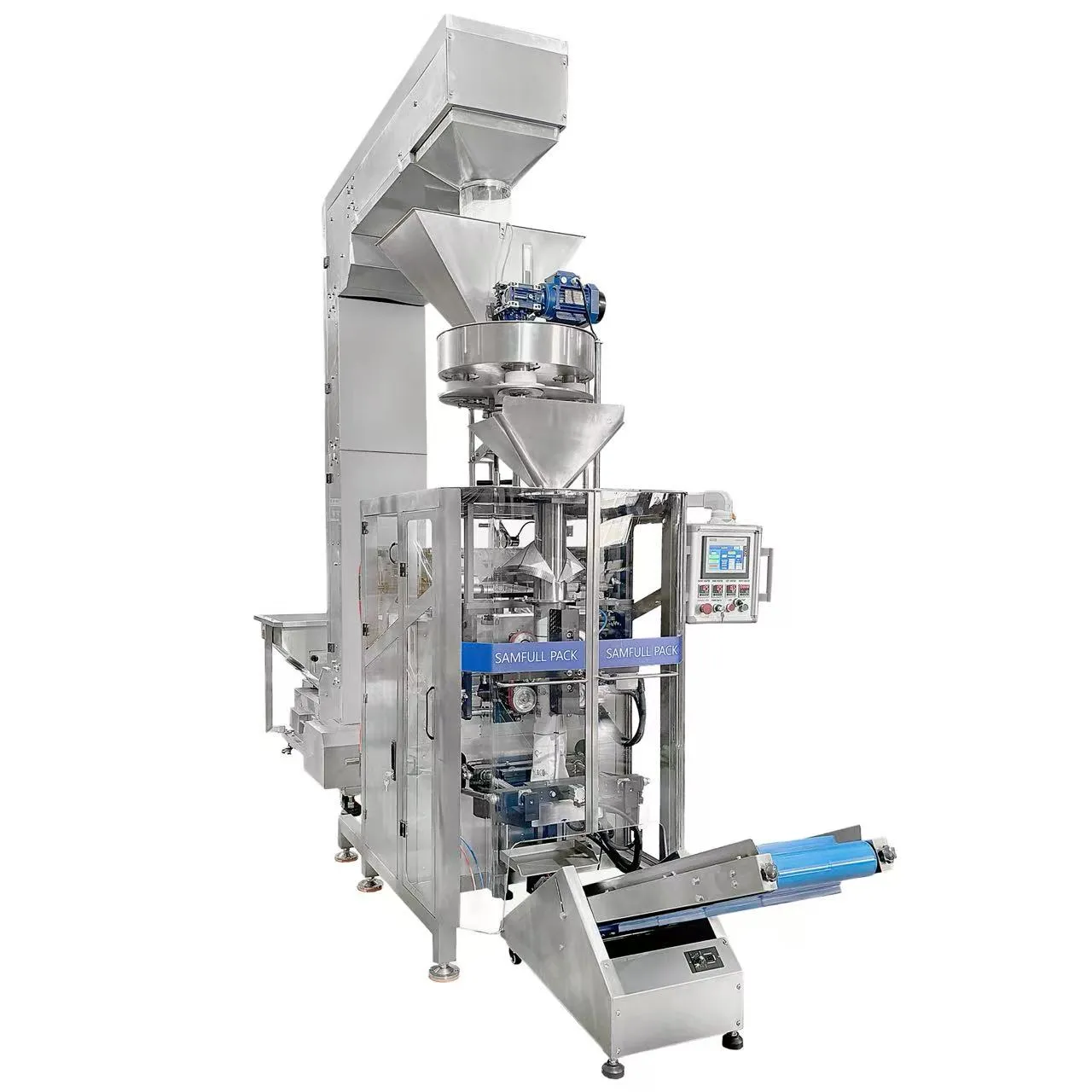

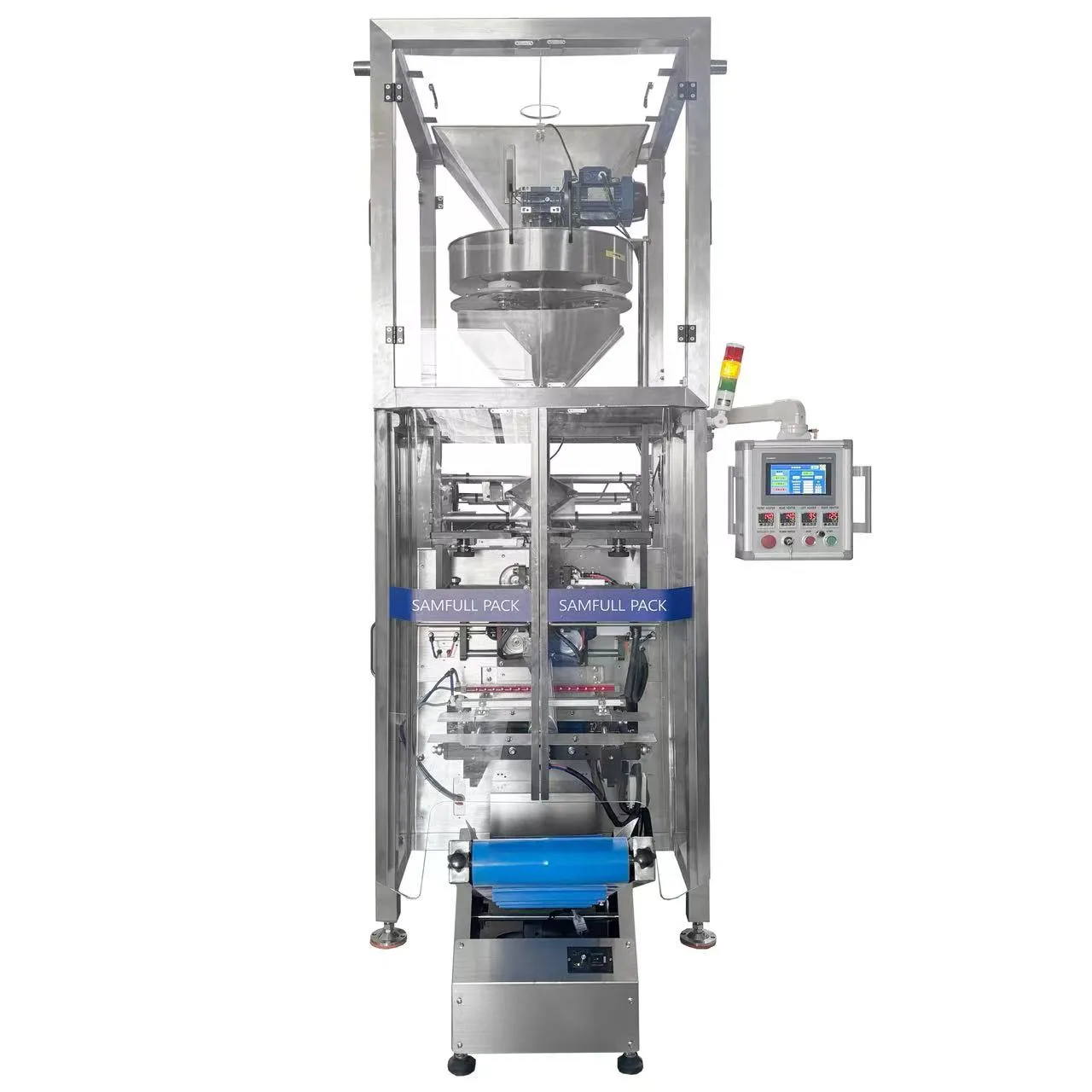

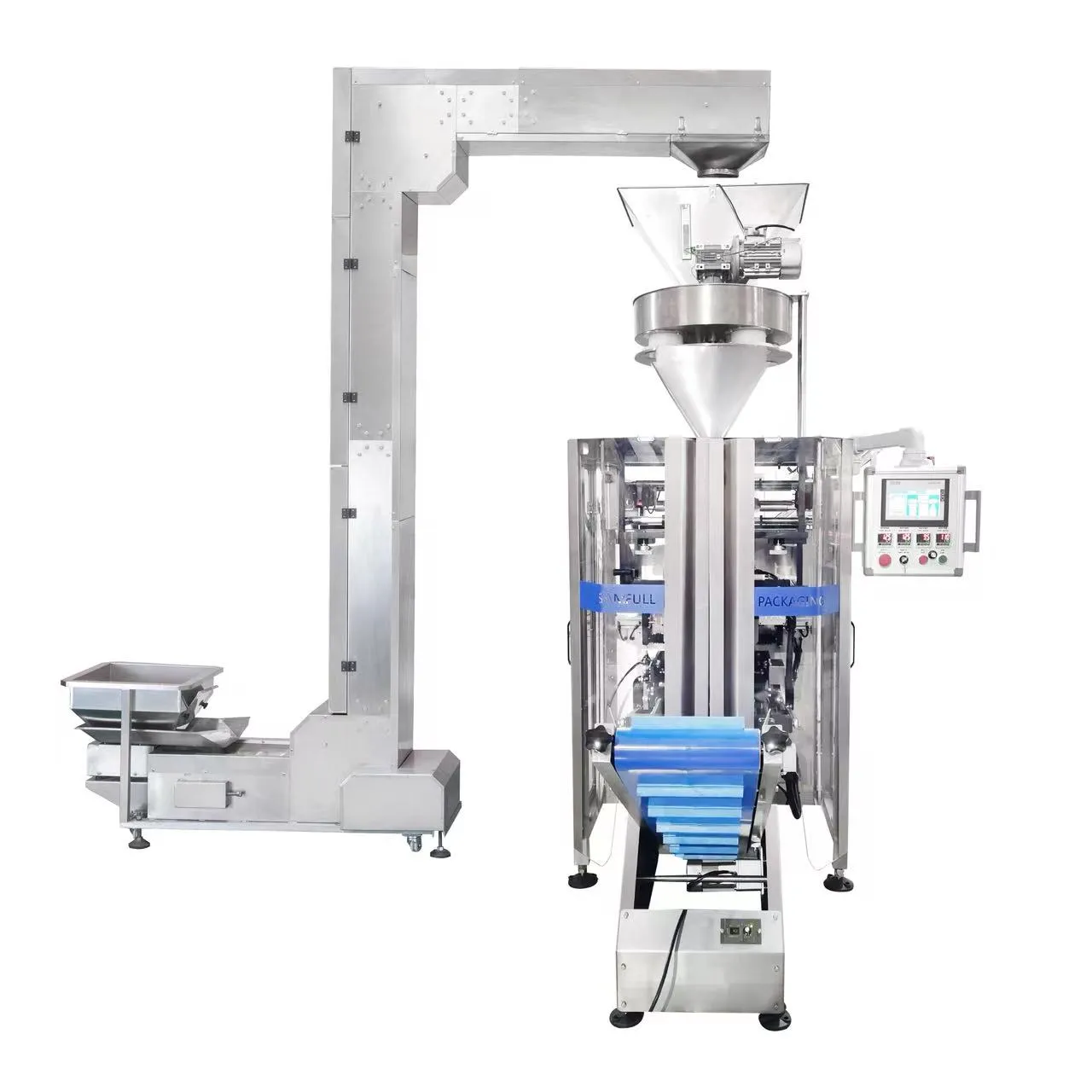

his vertical rice packaging machine with volumetric cup system is engineered for the efficient and cost-effective packaging of rice and free-flowing granular products. It integrates a high-speed volumetric cup filler with a vertical form fill seal (VFFS) system to achieve fully automatic volume measuring, bag forming, filling, and sealing within a streamlined workflow.

The machine is characterized by its stable operation, high-speed performance, and precise dosing consistency. It is widely utilized in food production facilities for bagging rice, sugar, salt, beans, seeds, and various cereal grains into professional pillow bags or gusset bags. Equipped with an intuitive control interface and a robust mechanical structure, this system ensures reliable packaging quality while significantly boosting overall production output.

Kindly Reminder

Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.

Bag dimensions (length and width)

Filling weight (volume) per bag

Bag style (e.g., pillow bag, gusset bag)

Target production capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1.The equipment frame is made of 304 stainless steel, which conforms to the food QS and pharmaceutical GMP health standards;

2.Equipped with safety protection, in line with the requirements of enterprise safety management;

3.Adopt independent temperature control system, temperature control is accurate, ensure the sealing is beautiful and smooth;

4.Servo motor film drawing, PLC control, touch screen control, automatic control ability of the whole machine, high reliability and intelligence, high speed, high efficiency;

5.Double belt film drawing, film drawing system and color code control system can be automatically adjusted by touch screen, simple operation for sealing and notching correction;

6.The touch screen can store a variety of packaging process parameters of different products, and can be used at any time without adjustment and replacing products;

7.The machine is equipped with fault display system, which can help troubleshoot in time and reduce the requirement for manual operation;

8.The whole set of equipment includes the whole packaging process system from material conveying, metering, printing, bag-making, filling, sealing, cutting and product conveying;

9.Pillow bag, pin bag, hanging hole bag and back seal bag made according to customer needs;

10.The machine adopts closed mechanism to prevent dust from entering the machine effectively.
