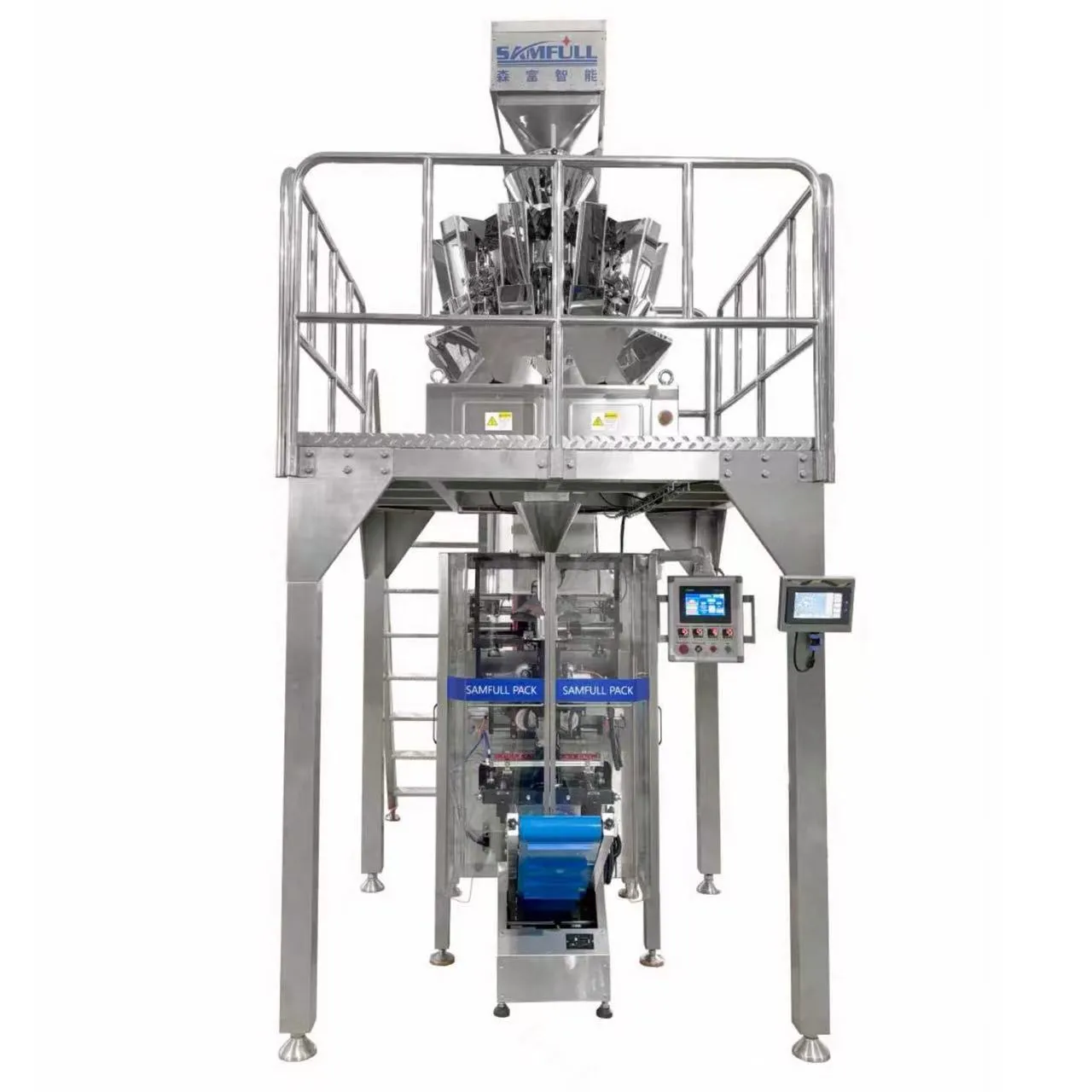

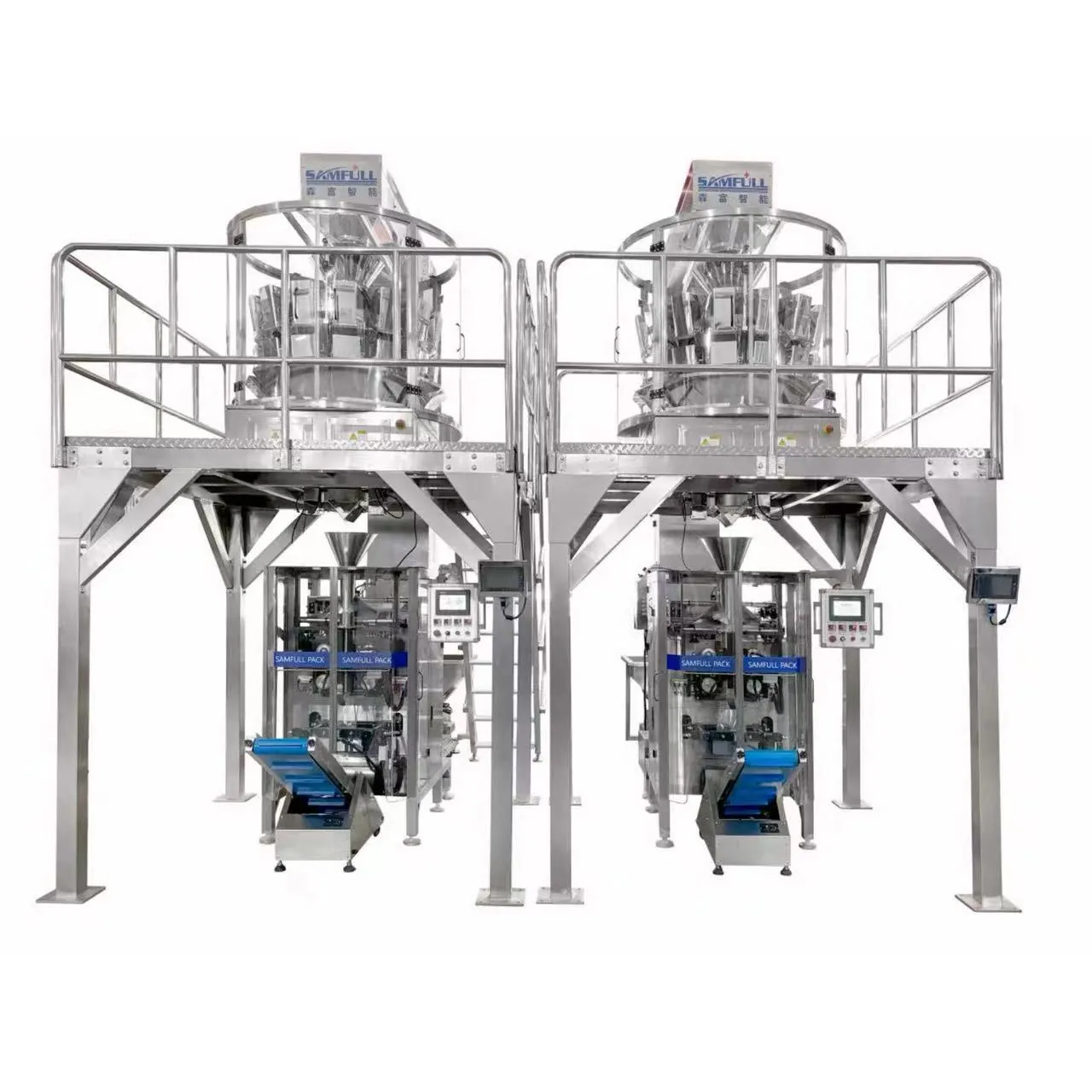

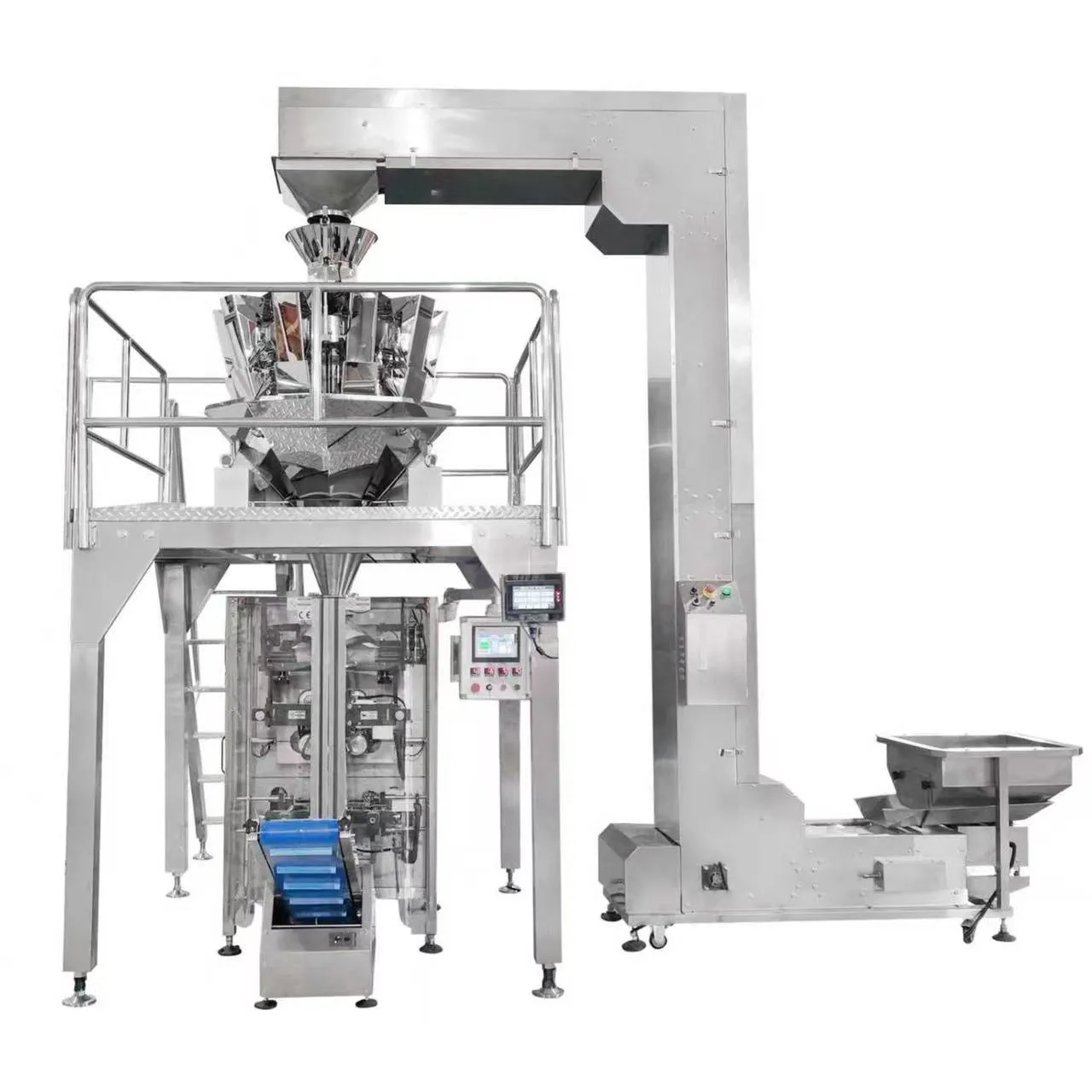

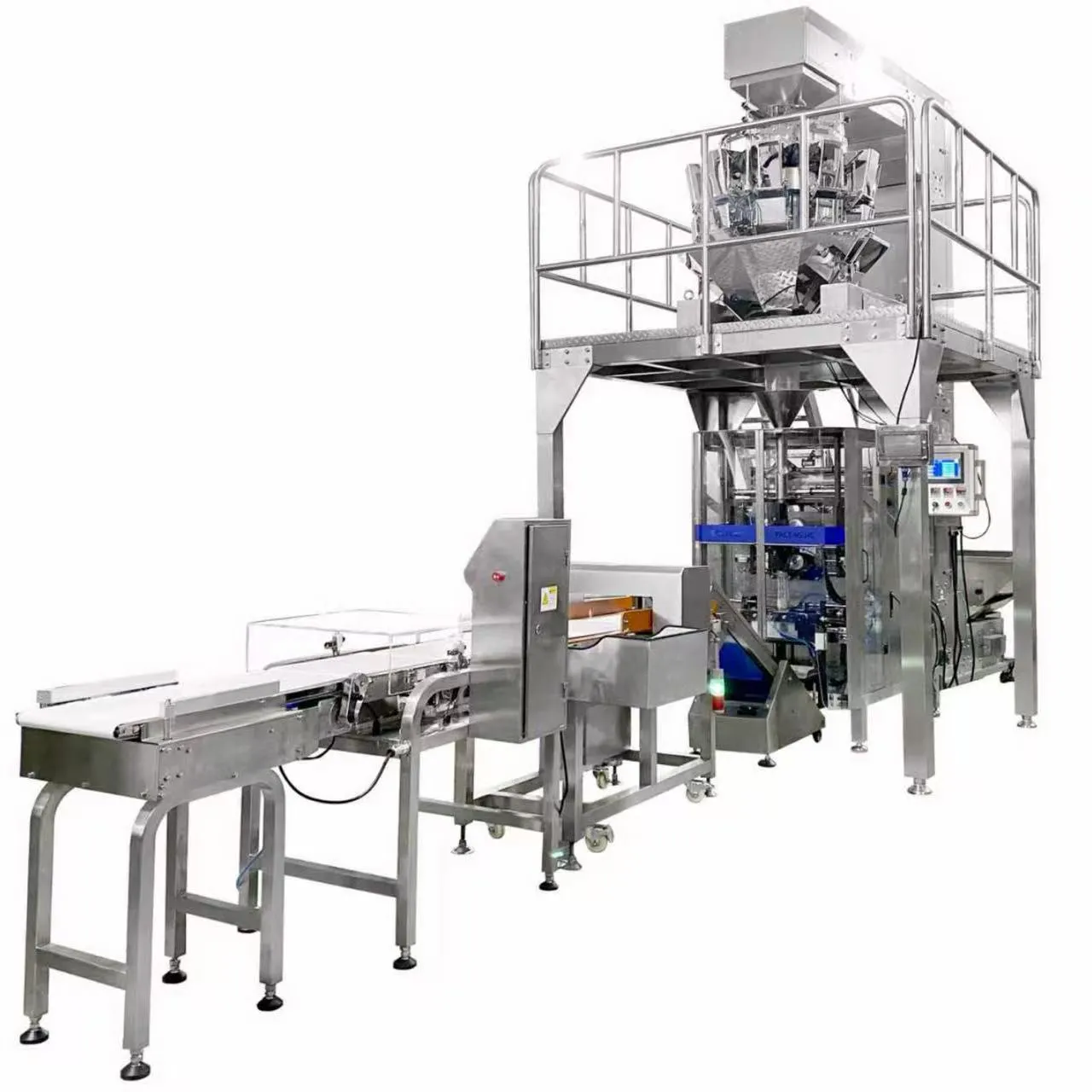

Rice Vertical Multihead Weigher Packing Machine

Technical details

Model	SF-2.0T	SF-3.0T
Max Width Of Roll Film	<520mm	< 720mm
Bag Sizes	Width: 80–250mm Length: 100–400mm	Width: 150–350mm Length: 100–480mm
Packing Speed	25–70 (bags/min)	10–45 (bags/min)
Packing Material	OPP/CPP, OPP/PE, PET/PE, PE	OPP/CPP, OPP/PE, PET/PE, PE
Bag Type	(Pillow bag / Gusset bag / Quad seal bag)	(Pillow bag / Gusset bag / Quad seal bag)
Air Consumption	6–8kgf/cm², 0.6 m³/min	6–8kgf/cm², 0.6 m³/min
Power And Voltage	AC380V Three phase, 50–60Hz, 5.25kW	AC380V Three phase, 50–60Hz, 5.27kW
Total Weight	1800kg	2000kg
Dimension	L3900 x W1900 x H3800mm	L3980 x W2250 x H4200mm

Inquire Now

APPLICATIONS

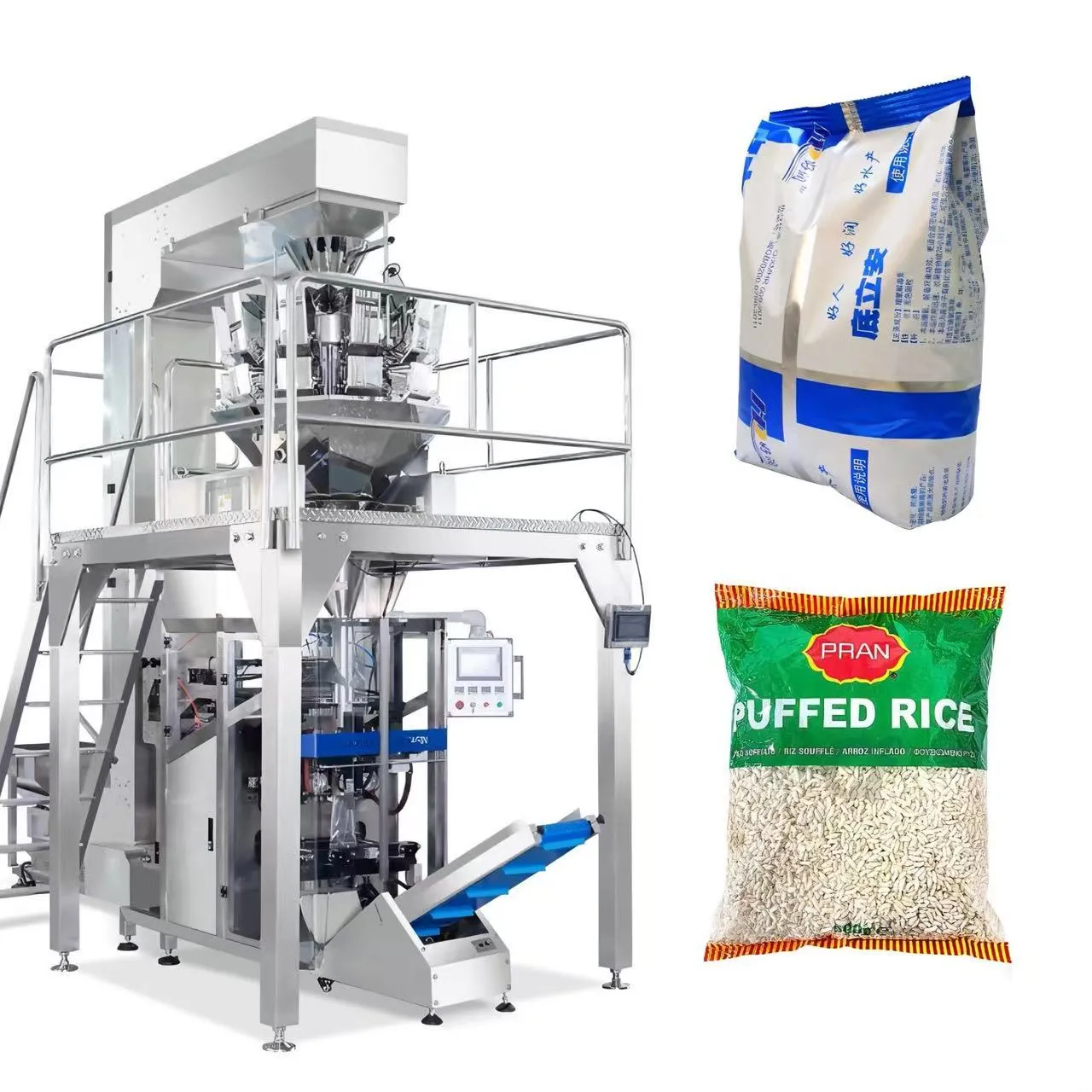

This rice vertical multihead weigher packing machine is designed for efficient and accurate packaging of rice and other granular products. It integrates a high-precision multihead weigher with a vertical form fill seal (VFFS) system to achieve automatic weighing, bag forming, filling, and sealing in one compact unit.

The machine features stable operation, fast packaging speed, and reliable sealing performance. It is widely used in food processing plants for packaging rice, grains, beans, cereals, and similar granule materials into pillow bags or gusset bags. With user-friendly controls and durable construction, it ensures consistent packaging quality and improved production efficiency.

Kindly Reminder

Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.

Product type and characteristics
Bag dimensions (length and width)
Filling weight per bag
Bag style
Required output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1. The equipment frame is made of 304 stainless steel, which conforms to the food GS and pharmaceutical GMP health standards; 2. Equipped with safety protection, in line with the requirements of enterprise safety management; 3. Adopt independent temperature control system, temperature control is accurate, the sealing is beautiful and firm; 4. Servo motor film drawing, film control system, touch screen control, automatic control of the whole machine, high efficiency; 5. Double screen film drawing, PLC control, touch screen control, system control can be automatically adjusted by touch screen, simple operation, high efficiency, sealing and notching correction; 6. The touch screen can display a variety of packaging process parameters of different products, and can be used by any ability without experience for sealing and packaging products; 7. The whole machine adopts the way of packaging and packaging, which can realize the automatic control of the whole process from feeding, bag making, filling, sealing, cutting and product conveying; 8. The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag-making, filling, sealing, cutting and product conveying; 9. It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs; 10. The machine adopts airtight structure to prevent dust from entering the machine effectively.
