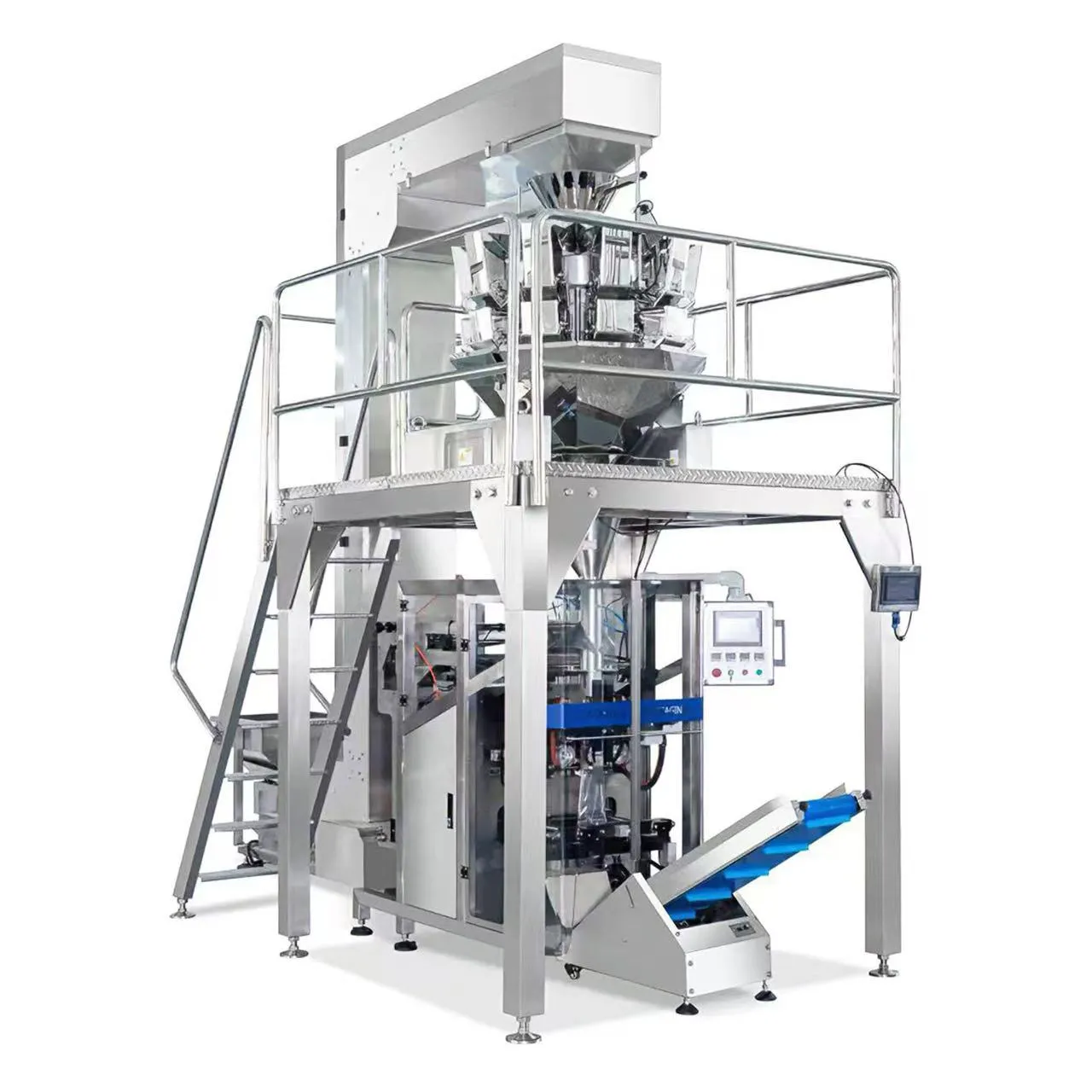

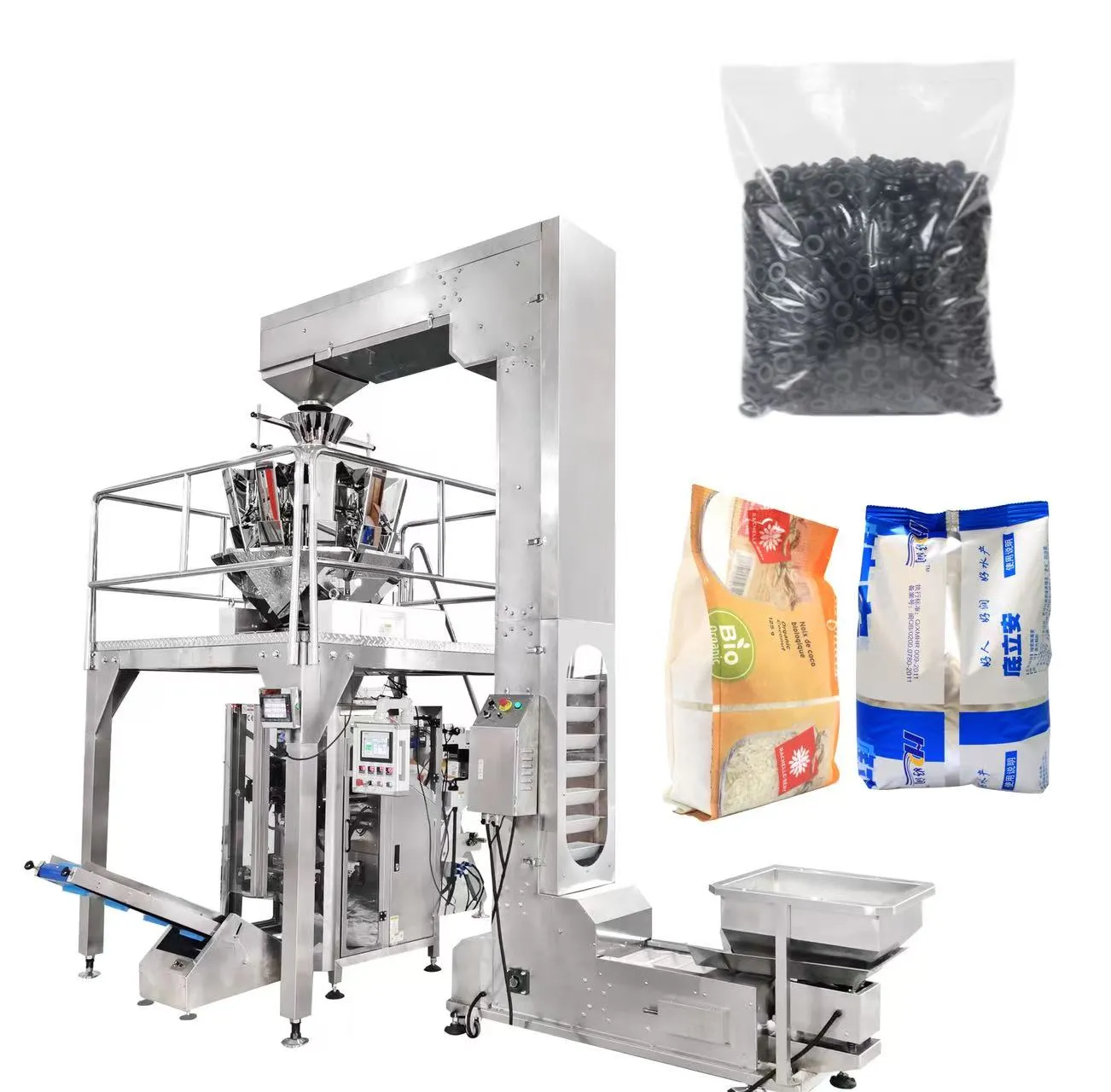

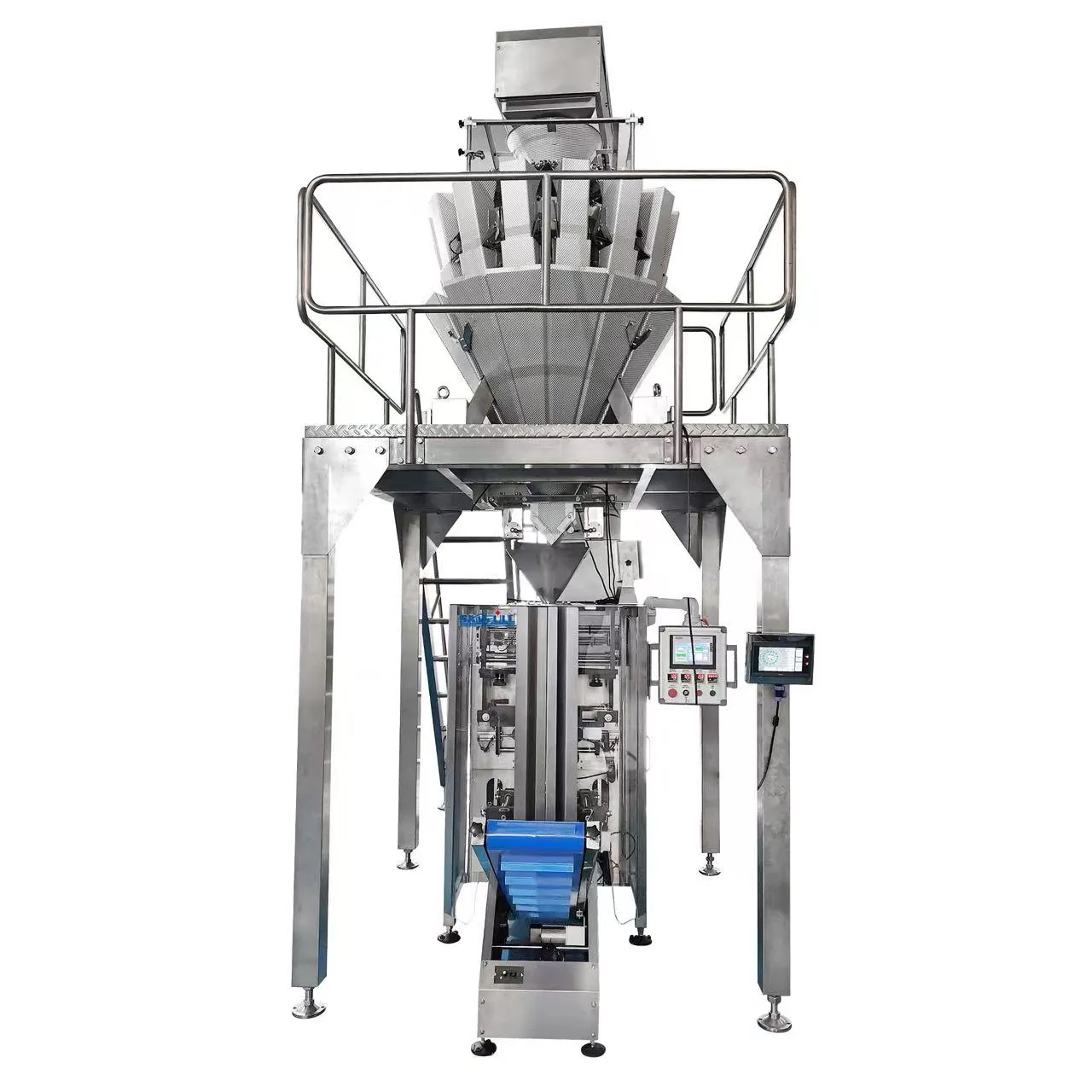

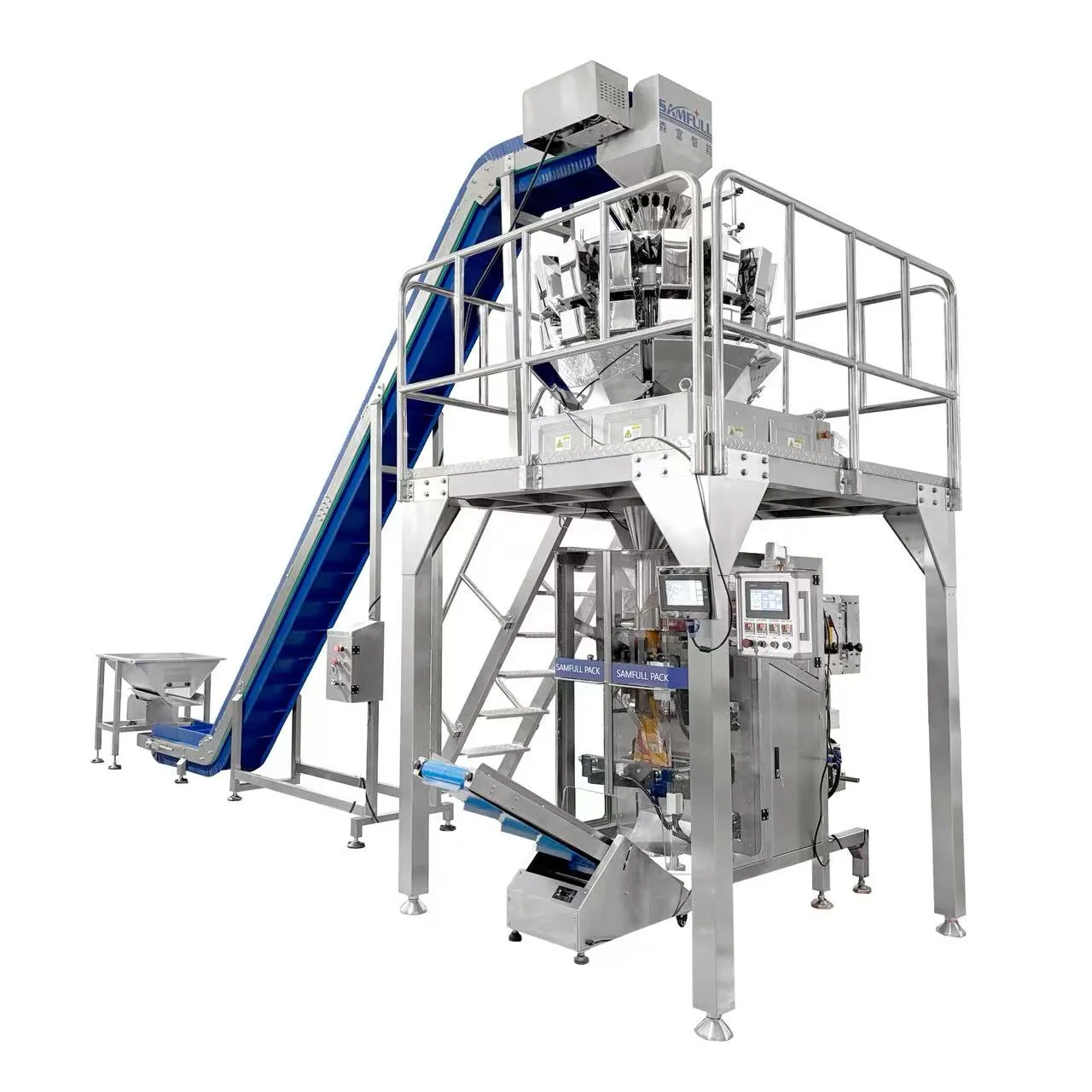

Overall vertical VFFS plastic parts and granule packaging machine with multihead weigher

Plastic Ring Packaging Machine, Vertical Multihead Weigher Granule Automatic Plastic Parts Packaging, Vffs Plastic Accessories Pouch Packing Equipment

Technical details

Model	SF-2.0T	SF-3.0T
Max Width Of Roll Film	<520mm	< 720mm
Bag Sizes	Width: 80–250mm Length: 100–400mm	Width: 150–350mm Length: 100–480mm
Packing Speed	25–70 (bags/min)	10–45 (bags/min)
Packing Material	OPP/CPP, OPP/PE, PET/PE, PE	OPP/CPP, OPP/PE, PET/PE, PE
Bag Type	(Pillow bag / Gusset bag / Quad seal bag)	(Pillow bag / Gusset bag / Quad seal bag)
Air Consumption	6–8kgf/cm², 0.6 m³/min	6–8kgf/cm², 0.6 m³/min
Power And Voltage	AC380V Three phase, 50–60Hz, 5.25kW	AC380V Three phase, 50–60Hz, 5.27kW
Total Weight	1800kg	2000kg
Dimension	L3900 x W1900 x H3800mm	L3980 x W2250 x H4200mm

Inquire Now

APPLICATIONS

This vertical form fill seal (VFFS) packaging machine with multihead weigher is designed for automatic weighing and pouch packing of a wide range of granular, solid, and irregular-shaped products. It is suitable not only for plastic rings, but also for various plastic accessories, hardware parts, industrial components, and free-flowing granular materials.

Typical applications include plastic fittings, rings, clips, fasteners, screws, bolts, nuts, washers, electronic components, injection-molded parts, construction accessories, chemical granules, seeds, pellets, and other non-sticky solid products.

The machine supports stable high-speed operation with accurate weighing, smooth bag forming, and strong sealing performance. It is widely used in plastic manufacturing plants, hardware factories, industrial component suppliers, electronics factories, and automated packaging lines, meeting the needs of continuous and large-scale production.

Supported pouch types include pillow bags and gusseted bags made from laminated roll films, with flexible bag size adjustment to match different product dimensions and packing weights.

Kindly Reminder

Please provide the following information when sending us your inquiry. Based on your details, we will recommend the most suitable packaging solution for your reference.

Product type and characteristics
Bag dimensions (length and width)
Filling weight per bag
Bag style
Required output capacity

PACKAGING

Applicable Packaging Film：BOPP/Polyethylene, Aluminium/Polyethylene, Polyester/Aluminizing/Polyethylene, Nylon/CPP, Paper/Polyethylene, etc.

FUNCTIONAL FEATURES

1. The equipment frame is made of 304 stainless steel, which conforms to the food GS and pharmaceutical GMP health standards; 2. Equipped with safety protection, in line with the requirements of enterprise safety management; 3. Adopt independent temperature control system, temperature control is accurate, the sealing is beautiful and firm; 4. Servo motor film drawing, film control system, touch screen control, automatic control of the whole machine, high efficiency; 5. Double screen film drawing, PLC control, touch screen control, system control can be automatically adjusted by touch screen, simple operation, high efficiency, sealing and notching correction; 6. The touch screen can display a variety of packaging process parameters of different products, and can be used by any ability without experience for sealing and packaging products; 7. The whole machine adopts the way of packaging and packaging, which can realize the automatic control of the whole process from feeding, bag making, filling, sealing, cutting and product conveying; 8. The whole set of equipment includes the whole packaging process from material conveying, metering, printing, bag-making, filling, sealing, cutting and product conveying; 9. It can be made into pillow bags, gusset bags, hanging bags, and string bags according to customer needs; 10. The machine adopts airtight structure to prevent dust from entering the machine effectively.
